HL

21

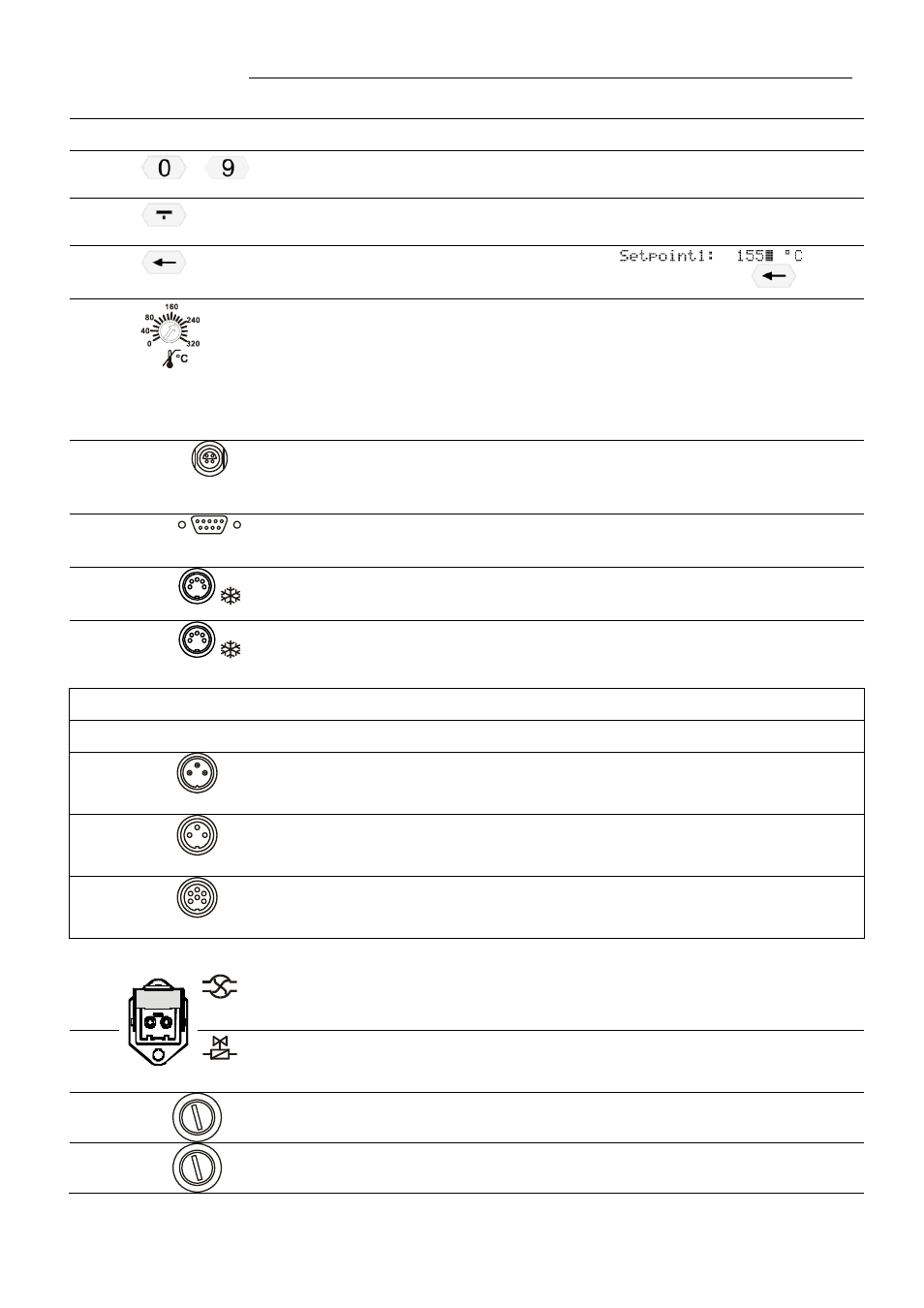

5 Keypad

2

..

Numeric keypad: numerals 0 to 9

minus / decimal point

Backspace key
on LCD DIALOG-DISPLAY.

6

Adjustable excess temperature protection according to IEC 61010-2-010



Rear view

7

ext Pt100

Socket for external measurement and control sensor

or external setpoint programming

8

SERIAL

Interface RS232 / RS485: remote control via personal computer

9
9a

Control cable of JULABO refrigerated circulator
Socket: output for alarm messages


9b


Socket:

Option: Electronic module

Order No. 8 900 100

The circulator automatically recognizes the connected electronic module.

10

ALARM

Alarm output (for external alarm signal)

11

STAND-BY

Standby input (for external emergency switch-off)

12

REG+E-PROG

Programmer input and temperature recorder output

13

Connector for supplementary pump or solenoid valve

230 V / max. 1.25 A

No control voltage in the -OFF- condition

14

Connector solenoid valve

1. No control voltage in the -OFF- condition

2. Configurable

(Refer to page 70)

15

Fuses (for connectors 13, 14), T1.25A

16

Mains fuses, T16A
