Technical Data
71
ninp69e1-a (1410)
11

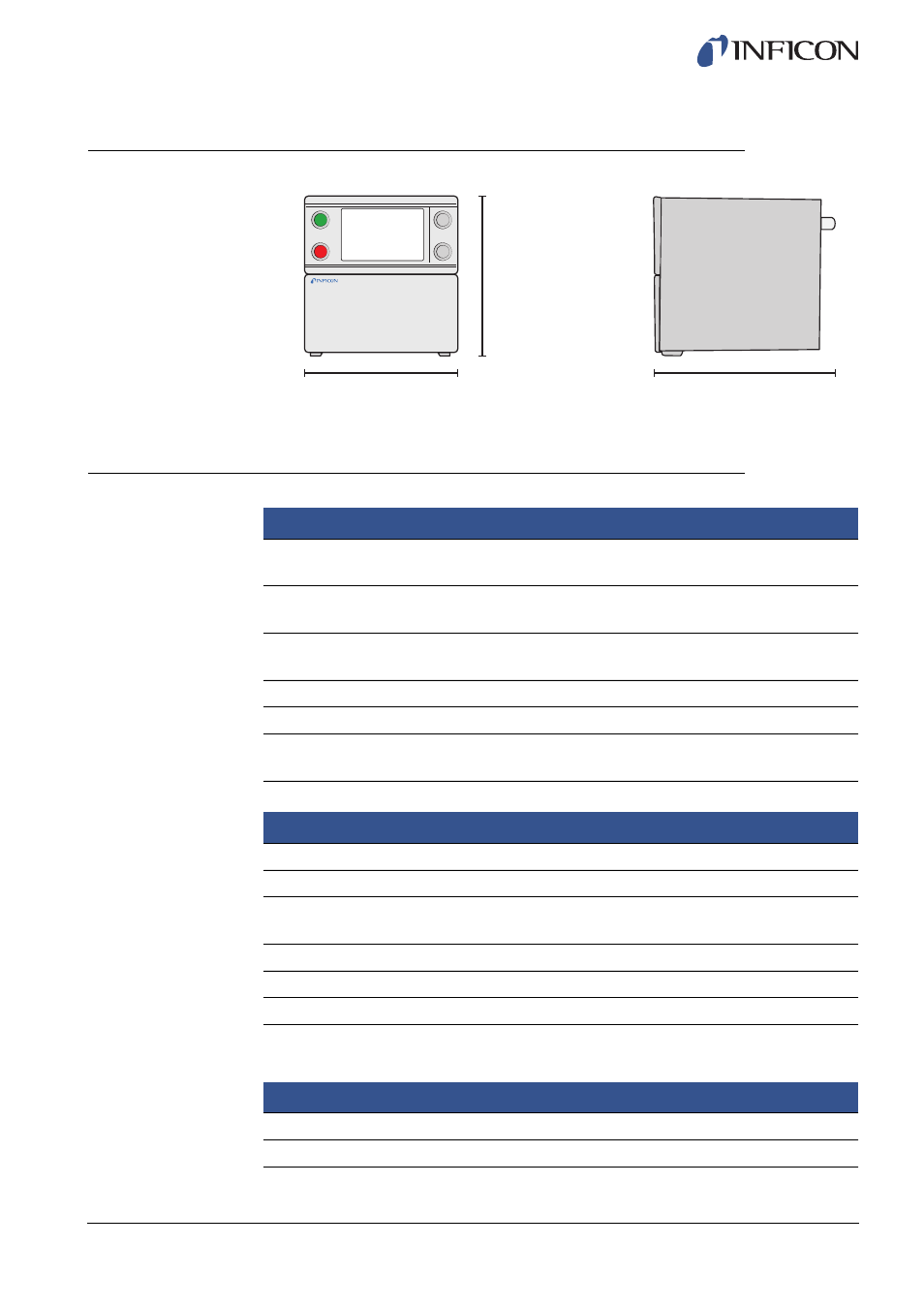

Technical Data
11.1
Electrical Specifications
275 mm (10.8 in.)
364 mm (14.3 in.)
294 mm (1
1.6 in.)
Electrical Supply
Mains Voltage
Single Phase
110-240VAC 50/60 Hz
Current
1.0 A at 100 VAC
0.45 A at 230 VAC
Power Rating
120 W max
33 W typical average
Inrush Current
Max 40 A
Mains Connector
IEC/EN 60320-1/C14
Recommended Fuse Rating
2 A slow
6.3 x 32 mm, 0.2 x 1.3 in. (2 needed)
I/O Port Signals
Signal Specification
24 VDC logic
Output Voltage
23 ±1 VDC
Output Capacity
Max 0.5 A
Output (max 2.5 A total)
Input Voltage HI
Min 16 VDC
Input Voltage LO
Max 4 VDC
Input Current Consumption
approximately 7 mA at 24 VDC
Communication Ports
Ethernet
RJ45, 10/100 Mbit/s, TCP/IP
RS232
Male, 9 pin, D-sub (x2)
