Recipes
ninp69e1-a (1410)

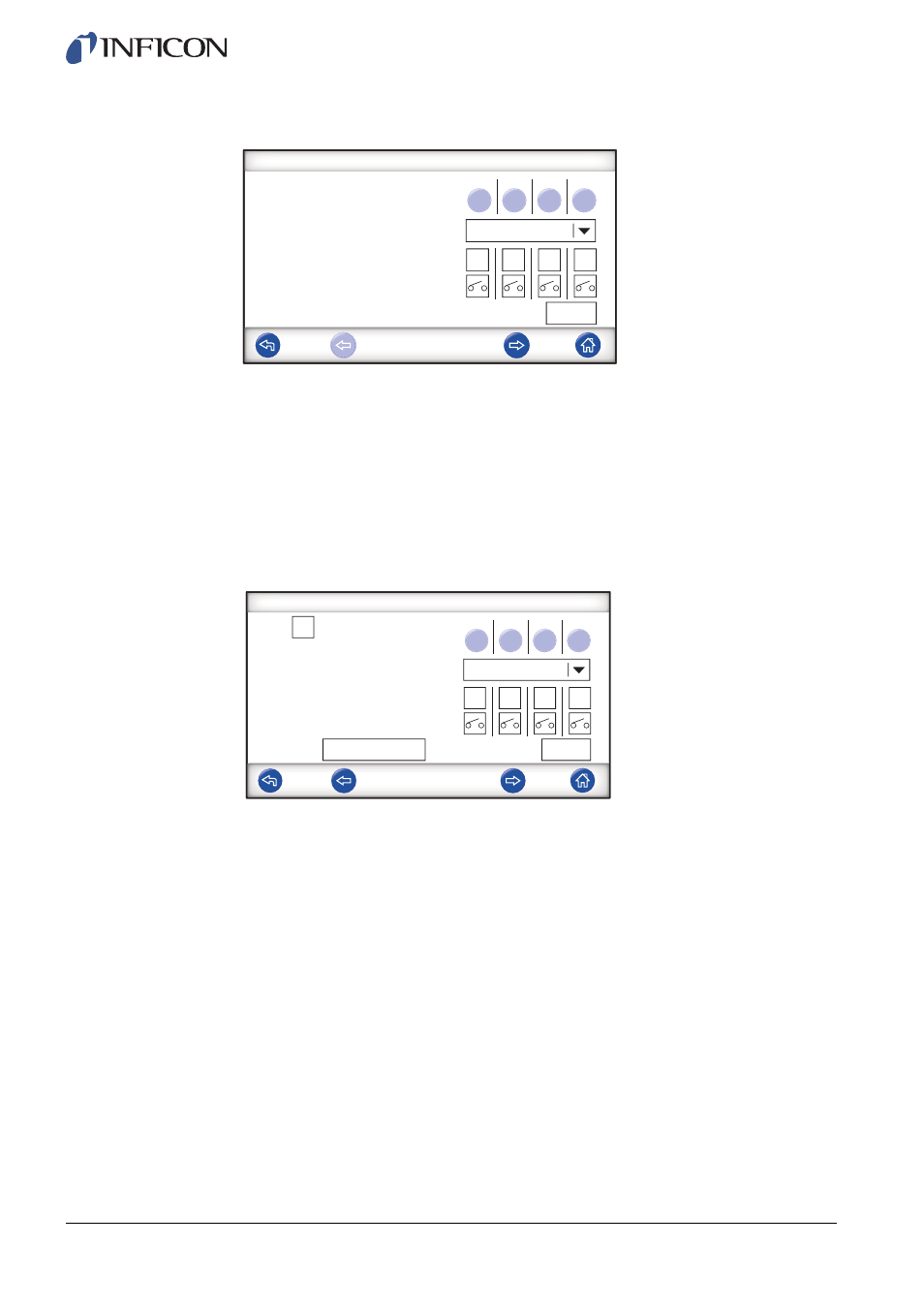

Stand-By
1
Click on the Tooling Outputs to be activated in stand-by (between tests).
2
Choose how to move on to the next step.
- Set action in list.
- Select Tooling Inputs.
3
Set desired delay time.
Connection Step 1 — 3
1
Select the ON check box to activate the step.
2
Click on the Tooling Outputs to be activated.
3
Choose how to move on to the next step.
- Set action in drop-down-list.
- Select the appropriate check box(es) for the Tooling Inputs.
Then set “Open” or “Closed” status for each switch symbol.
4
Enter a text to describe the step (click the Info field to activate the on-screen
keyboard).
5
Set desired delay time.
Tooling Outputs
ON
Go to next step with
and Tooling Inputs
Delay
1
2
3
4
STAND-BY
0.0
Start Button
Connection Step 1
Tooling Outputs
ON
Go to next step with
and Tooling Inputs
Delay
1
2
3
4
0.0
Auto
ON
Info
