Medical Compressed Gas Connectors
MedIcal and IndustrIal cga 540 operatIon
Safety features:
• The CGA 540 Medical and Industrial connectors have an internal locking
mechanism. Once the pressure exceeds 60 psig, the connector will lock the sleeve
to prevent removal.
Figure 13. Medical and Industrial CGA 540.
step 1
At the start of each shift:
• Check all connectors for main seal condition.
• Check for smooth operation of the sleeve and collets before the first fill.
Main Seal
Sleeve
Collet

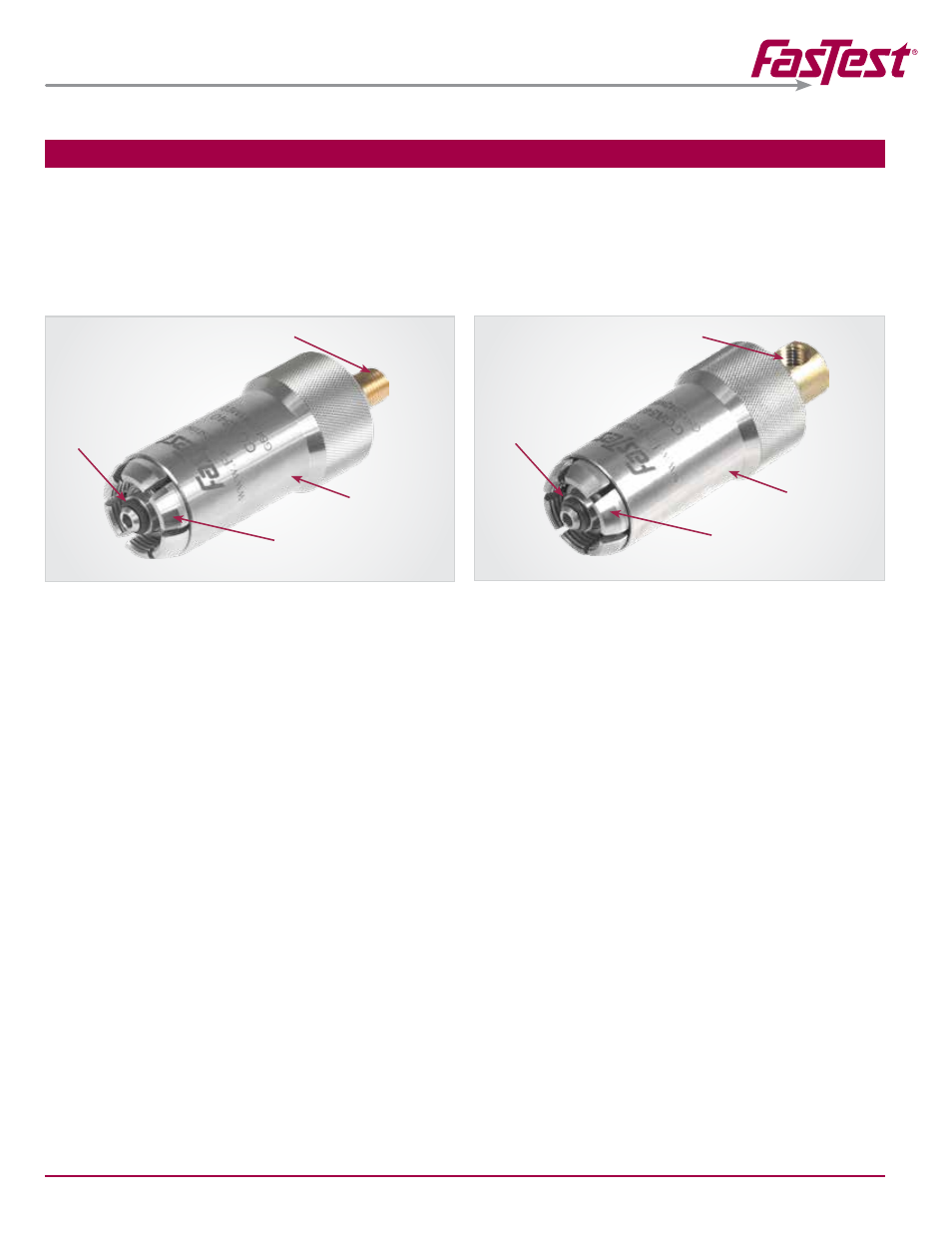

g540-041-sH
g540-042-sH
1/4” NPT Male Incoming
Line Termination
Main Seal
Sleeve
Collet
1/4” NPT Female Incoming
Line Termination
