FasTest SnapMate Service Main Seal Replacement User Manual
Replacment instructions, Scba07h main seal, Replacement kit for snapmate

®
REPLACMENT INSTRUCTIONS
Roseville, MN
Ph: 1-800-444-2373
Fax: 651-645-7390
www.fastestinc.com
WP038 10/6/2010

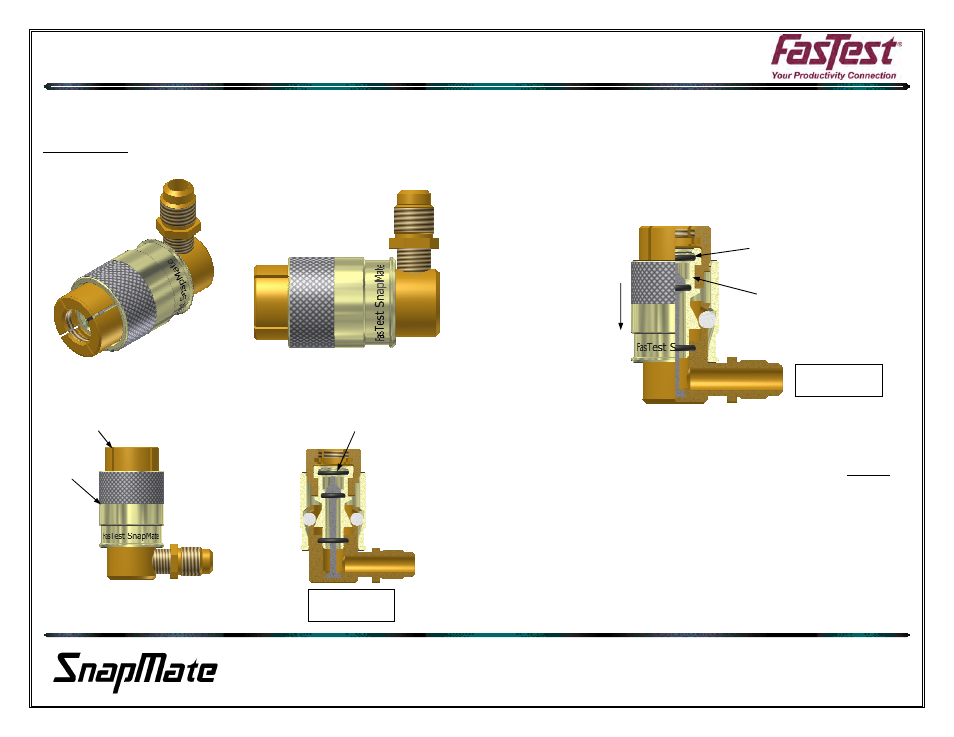

Collets
Sleeve
Cross-Section
View
Main Seal
Sleeve Down
Collets Up
Main Seal
location in Piston
Piston
Quarter-Section
View
SCBA07H Main Seal
Replacement Kit for
SnapMate
®
Service Tool
Description: Main Seal Replacement Instructions for
Service Version SnapMate
®
Please thoroughly read the following steps on properly replacing
the main seal on the SnapMate Service Tool.
Replacement steps:
1. Hold connector with collets facing upward.
2. Slide sleeve down as shown.
3. With small screw driver or pick remove the main seal from piston and discard. Exercise
caution so as not to scratch or damage the main seal groove.
4. Place the new seal down through the collets into the piston, with a small screw driver or
blunt pick push the seal into piston groove. Exercise caution so as not to damage the seal or
groove.
