Annex b: eritech, System 3000 mast and support hardware – ERICO ISODC Isolated Downconductor System User Manual
Page 19
19
www.erico.com

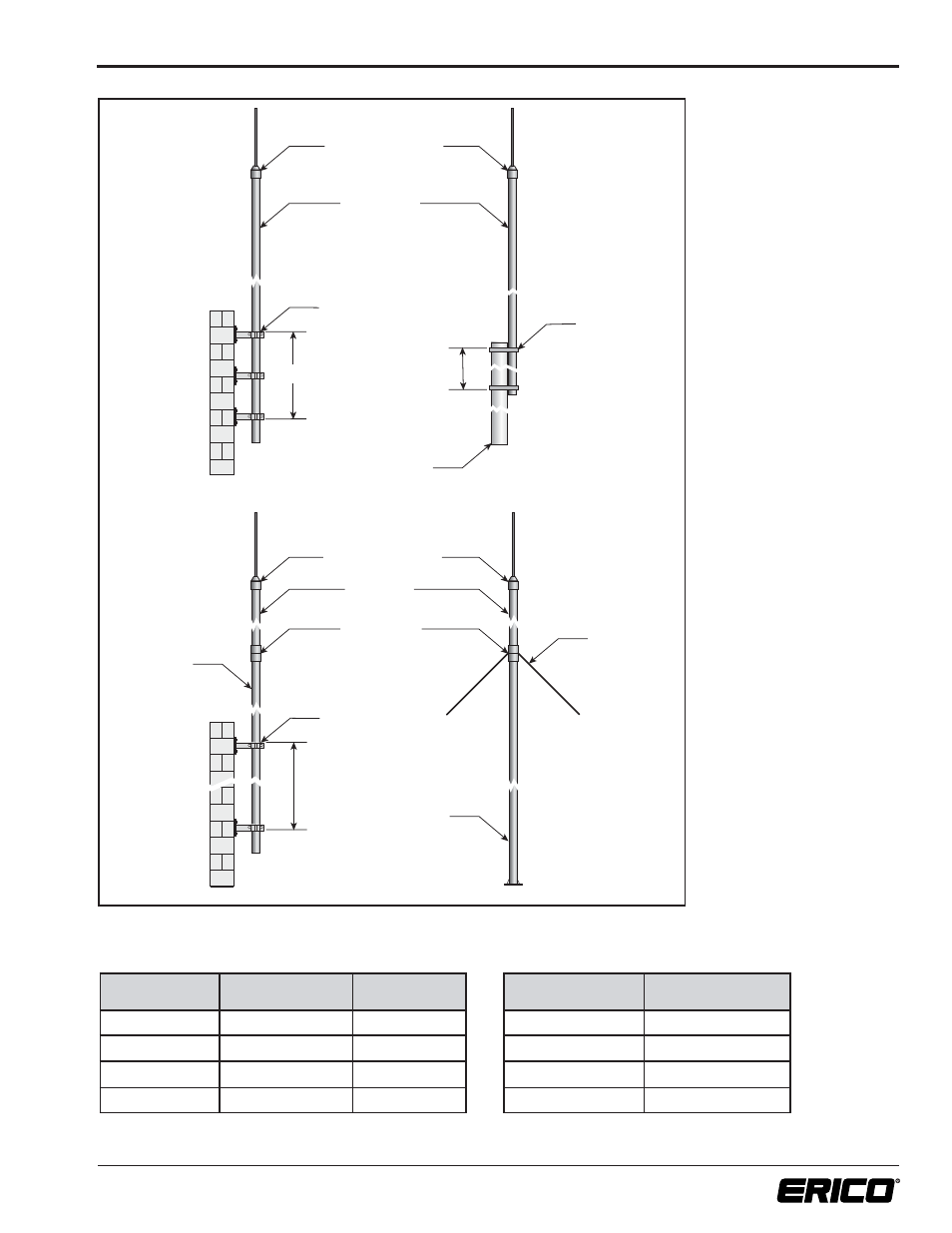

Figure 13. ISOCAP68.
ANNEX B: ERITECH
®
SYSTEM 3000 MAST AND SUPPORT HARDWARE
4.6 m FRP Mast
ISOCAP68, Air Terminal
and ISODC
Table 6. Cantilever Distance.
MAST
Cantilever Distance
# Mast Brackets
ALUM3M (3m)
1 m
3
ALUM4M (4m)
1 m
3
ALUM5M (5m)
1.5 m
3
ALUM6M (6m)
2 m
5
Table 7. Guy Kit.
MAST
Guy Kit
MBMAST3M (3m)
GUYKIT4MGRIP
MBMAST4M (4m)
GUYKIT4MGRIP
MBMAST5M (5m)
GUYKIT7MGRIP
MBMAST6M (6m)
GUYKIT7MGRIP
3x Mast Bracket
1.5 m
1.5 m
Ø 70-75 mm Mast
ISOCAP68, Air Terminal
and ISODC
2 m FRP Mast
Inline Coupling
Guy Kit
(See Table 7)
Aluminum Mast
3-6 m (See Table 6)
Mast Brackets
Cantilever Distance
(See Table 6)
Aluminum Mast
with Base 3-6 m
(See Table 7)
2x U Bolt
