ERICO ISODC Isolated Downconductor System - Manual (Page 12)

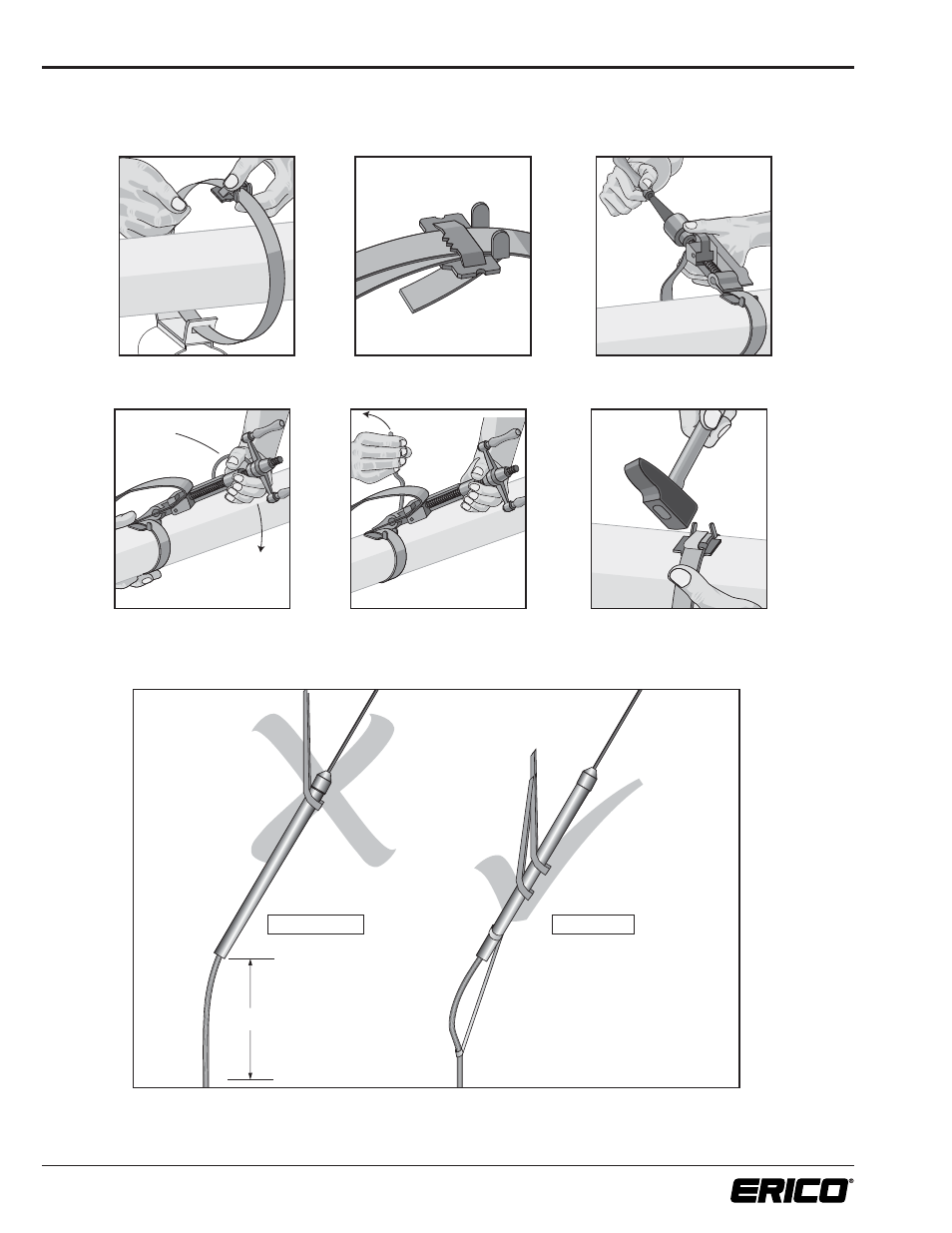

The following illustrations show the mounting bracket fixing procedure.
1
Insert band.
2
Slip through loop.
3
Use tool to adjust.
4
Bend in place by moving down.
5
Pull the lever upward.
6
Secure by moving the tabs in place.
Figure 6. ISOMMB mounting brackets fixing procedure.
Do not sling
at top of
terminal
Do not lift
with more than
5 m of
downconductor
hanging from
mast without
tying off to
mast.
Stress removed from upper
termination by securing
downconductor to lower mast
with flat webbing or other
appropriate sling.
Sling at
multiple points
Max 5 m
INCORRECT CORRECT
Figure 7. Incorrect and correct hauling methods.
4. FIXING ISOLATED MAST TO THE STRUCTURE
(continued)
Do not use FIXOBAND for strapping Isolated Downconductor to the structure.
12 www.erico.com
