ERICO CADWELD Electrical Connections User Manual
Page 17
17
www.erico.com

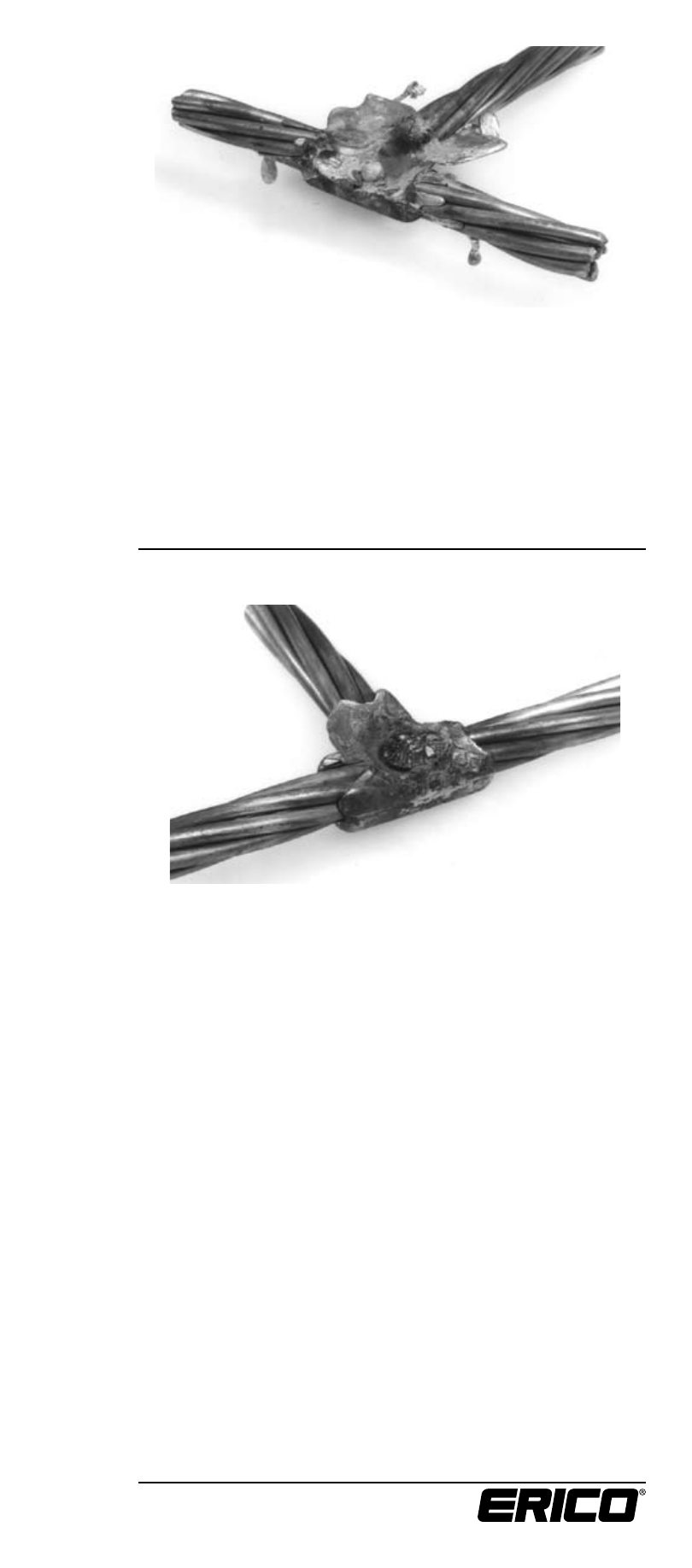

Reject.
Fill too low. Weld cavity was not filled over cable
strands. “Fins” indicate that the mold was not
closed tightly due to incorrect mold, incorrectly
adjusted handle clamp, or presence of foreign
material in mold parting line. Before making the
next connection, check the mold for each of the
above.
Reject.
Fill too low. Weld cavity was not filled over cable
strands. Absence of leakage indicates that welding
material size was incorrect (too small) or thru
conductor moved.
