ElmoMC Multi-Axis Motion Controller-Gold Maestro - Manual (Page 26)

Gold Maestro Installation Guide Installation
MAN-GOLD-MAESTRO-IG (Ver. 1.301)
www.elmomc.com
26

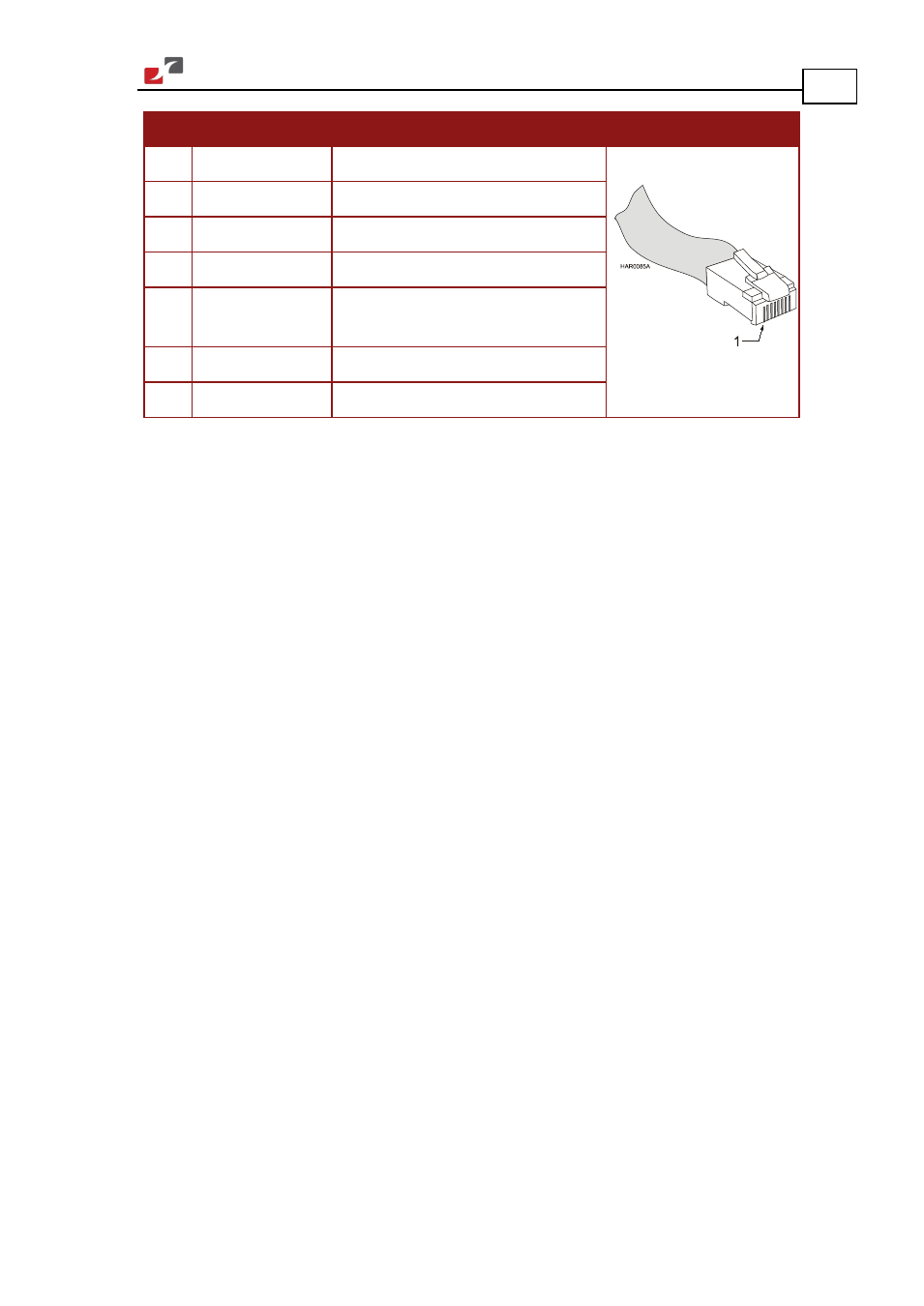

Pin Signal Function Pin Position
1 CAN_H CAN_H bus line (dominant high)
2 CAN_L CAN_L bus line (dominant low)
3 CAN_COMRET CAN Communication Return
4, 5 N/A —
6 CAN_SHLD Shield, connected to the RJ plug
cover
7 CAN_COMRET CAN Communication Return
8 N/A —
Table 13: CAN Cable Pin Assignments
