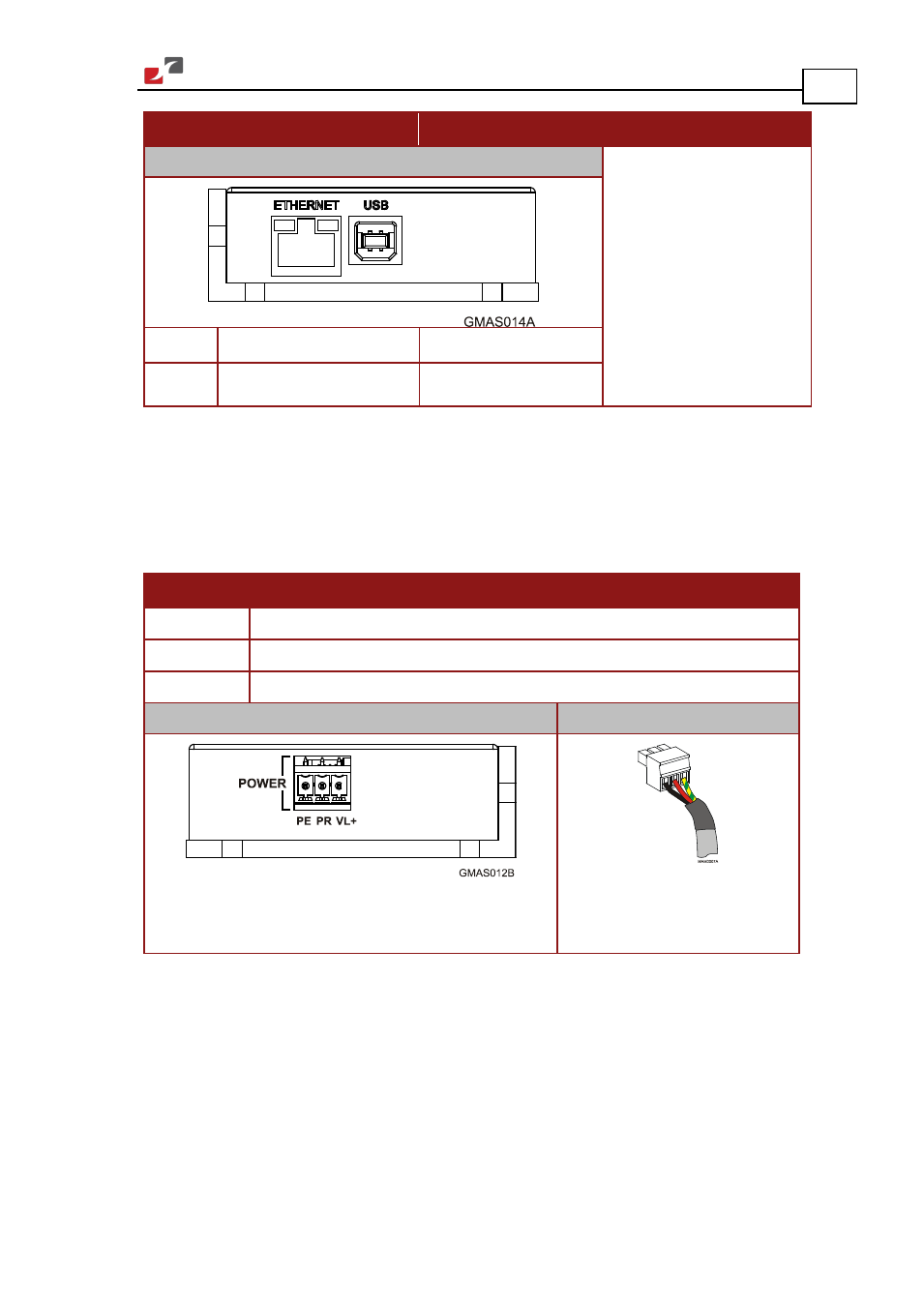

Pins Type Function
Bottom Connectors
8 RJ-45 Ethernet
4 USB USB
Table 1: Connector Types
3.3.2. Pinouts
3.3.2.1. Power Connector
See Section 3.5.2 for full details.
Pin Function
PE Protective Earth
PR Power Return
VL+ Positive Power Input
Connector Location Cable Connector
3-Pin 3.81 mm Pitch Phoenix Header
(MC 1.5/3-G-3.81)
3-Pin Phoenix Plug
(MC 1.5/3-ST-3.81)
Table 2: Gold Maestro Power and Ground Connectors
