Gold Maestro Installation Guide Installation
MAN-GOLD-MAESTRO-IG (Ver. 1.301)
www.elmomc.com
20

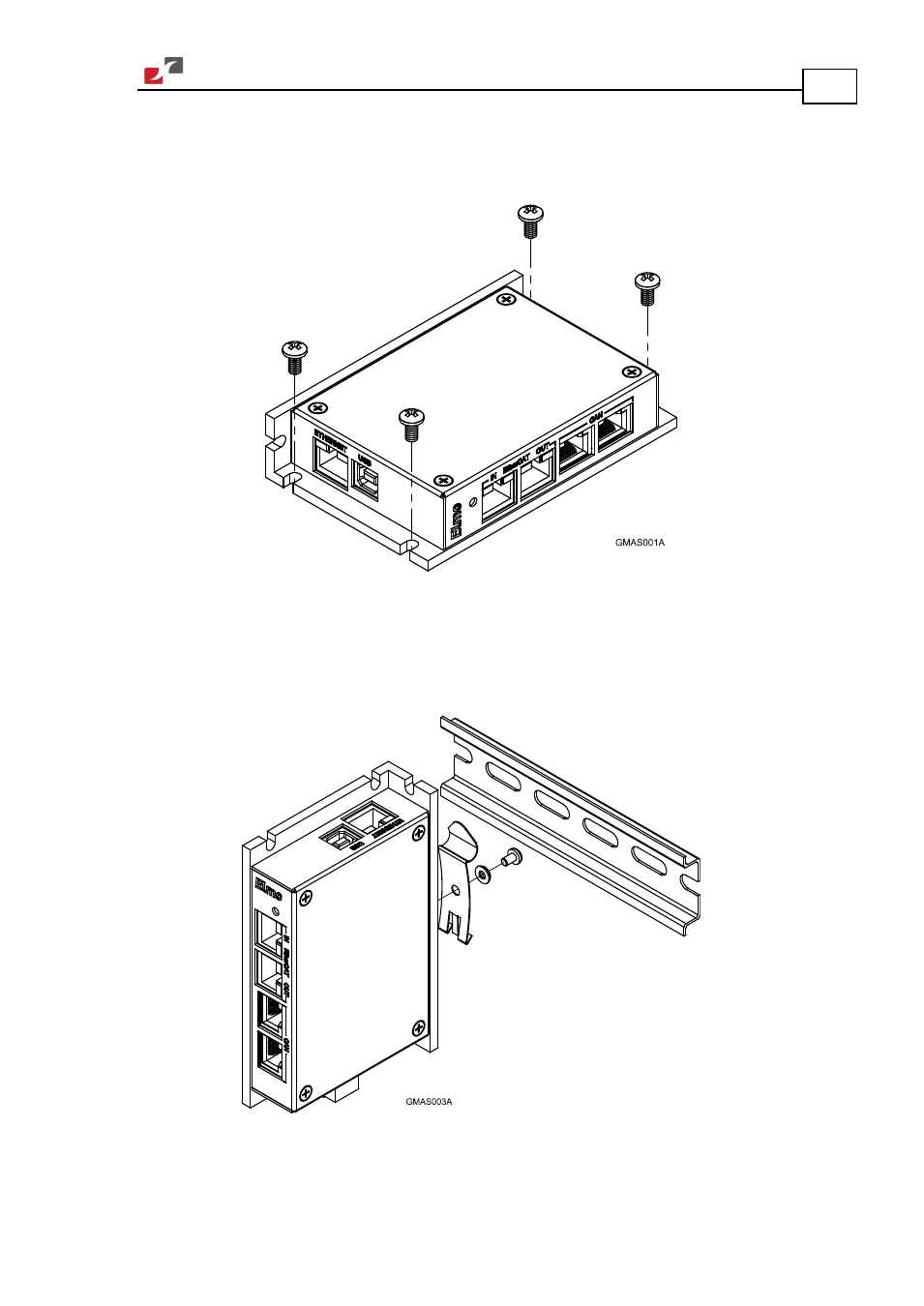

3.4.2. Surface Mount
Use four M4 round head screws, one through each opening in the heat sink to connect the
Gold Maestro to a surface.
Figure 3: Surface Mounting the Gold Maestro
3.4.3. Installation on a DIN Rail
Use one M3x5 round head screw to connect the DIN rail mounting clip to the back of the Gold
Maestro.
Figure 4: Mounting the Gold Maestro on a DIN Rail
