Gold Maestro Installation Guide Installation
MAN-GOLD-MAESTRO-IG (Ver. 1.301)
www.elmomc.com
22

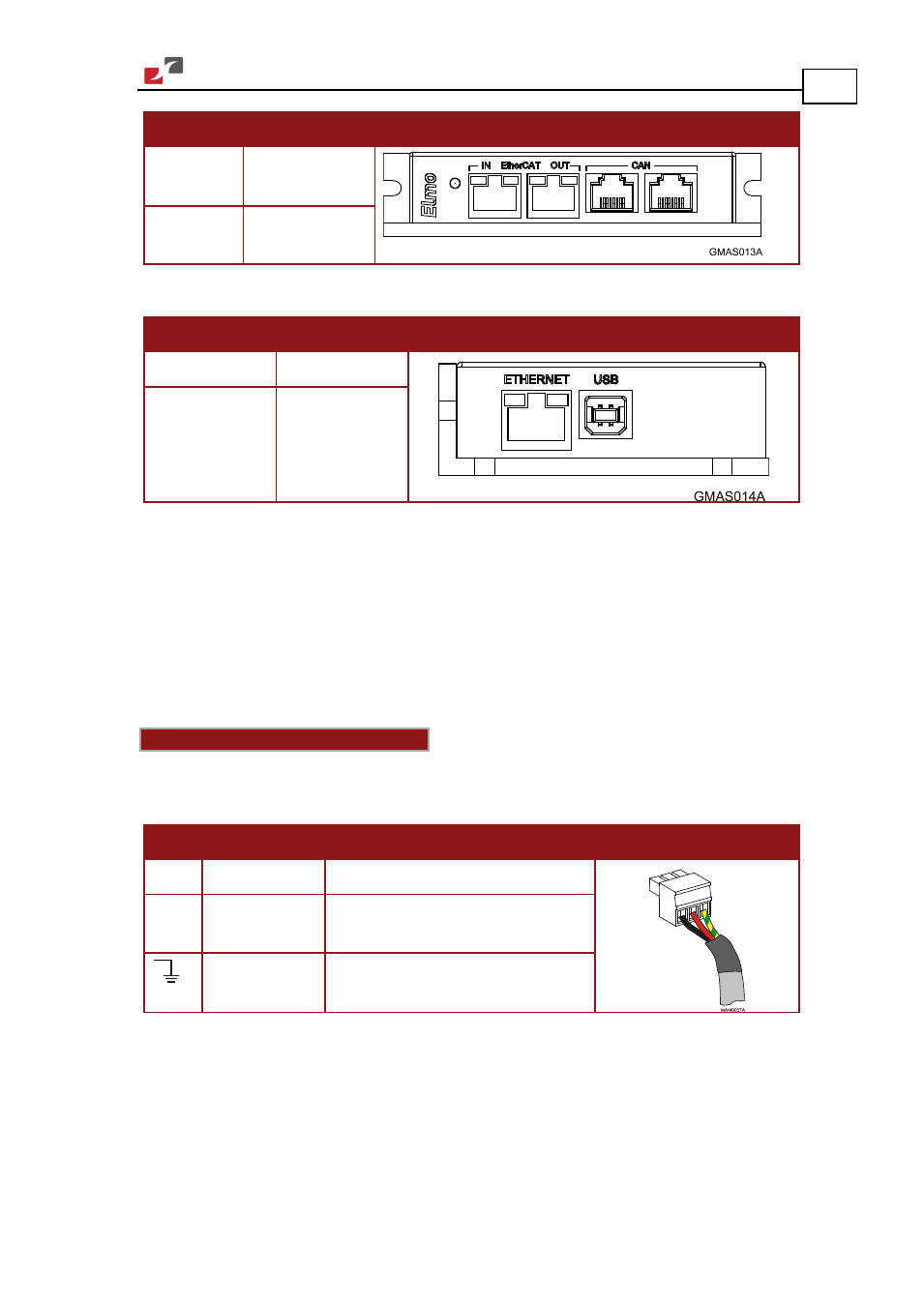

Type Port Connector Location
RJ-45 EtherCAT In/
EtherCAT Out
RJ-45 CAN x 2
Table 9: Connectors on the Front of the Gold Maestro
Type Port Connector Location
USB USB
RJ-45 Ethernet
Table 10: Connectors on the Top of the Gold Maestro
3.5.2. Connecting the DC Power Supply
The Gold Maestro requires 4.5 W when turned on. Any isolated power supply that can supply
that power is acceptable. The supplied power must be within the rated voltage range according
to the model: 13 V to 96 V or 20 V to 196 V.
Connect the DC output from the power supply to the power input port on the Gold Maestro
using the 3-pin power plug provided.
Notes for power supply connections:
Use a 24 AWG twisted pair shielded cable. The shield should have copper braid.
Before applying power, first verify the polarity of the connection (protected).
Pin Signal Function Pin Position
[+] VL+ DC power supply
[-] PR Power Return
PE Protective Earth
Table 11: Power Plug
