Gold Maestro Installation Guide Installation
MAN-GOLD-MAESTRO-IG (Ver. 1.301)
www.elmomc.com
23

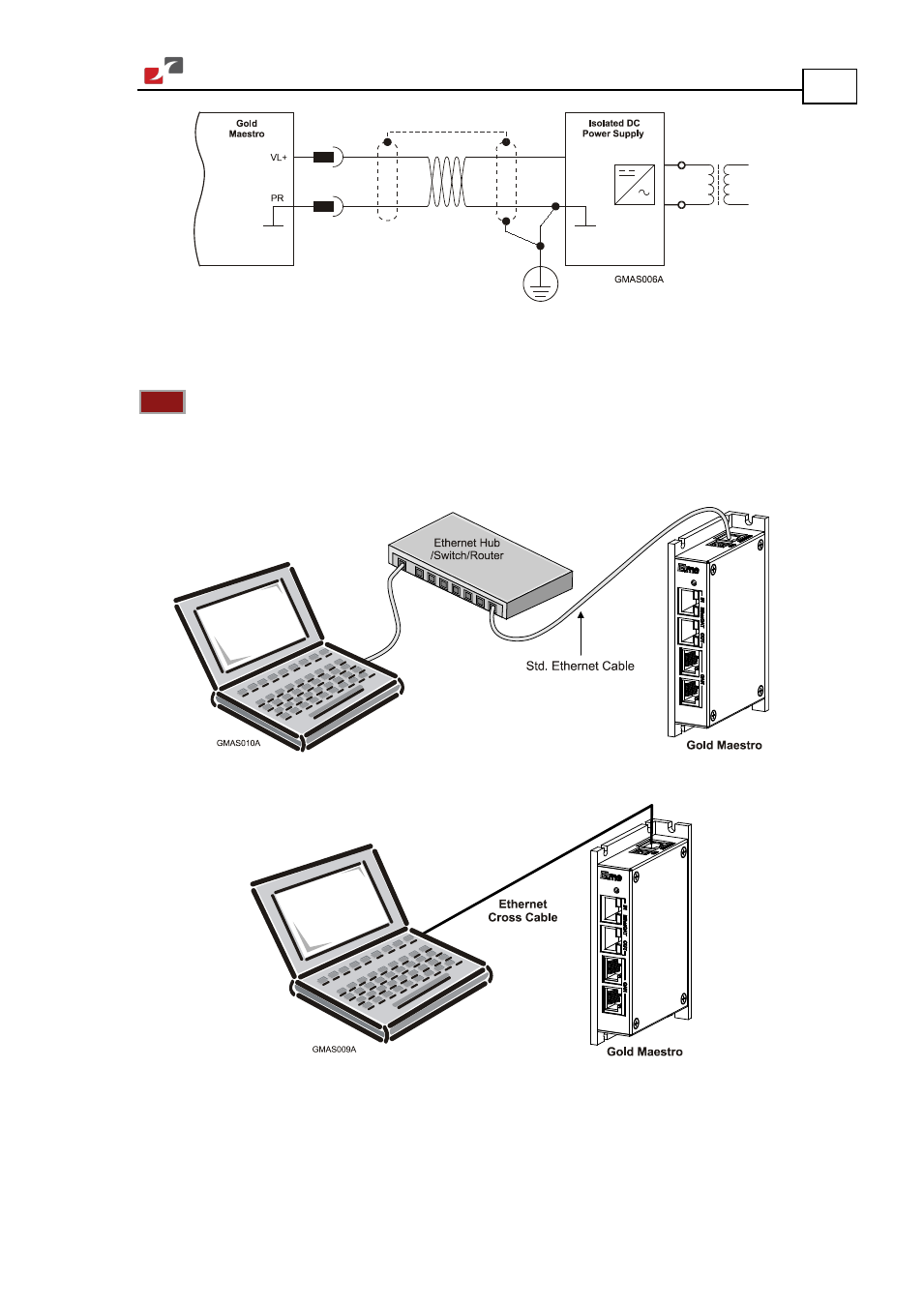

Figure 5: Power Supply Connection Diagram
3.5.3. Ethernet
Note: When connecting the Ethernet communication cable use a shielded CAT5e Ethernet
cable.
The Gold Maestro connects to a PC either directly or through a hub, switch or router. Use a
standard or cross CAT5e Ethernet cable.
Figure 6: Gold Maestro Connected to a Network
Figure 7: Gold Maestro Connected Peer-to-Peer to a PC
