Gold Maestro Installation Guide Installation
MAN-GOLD-MAESTRO-IG (Ver. 1.301)
www.elmomc.com
18
3.3.2.6. USB 2.0 Connector
See Section 3.5.4 for full details.

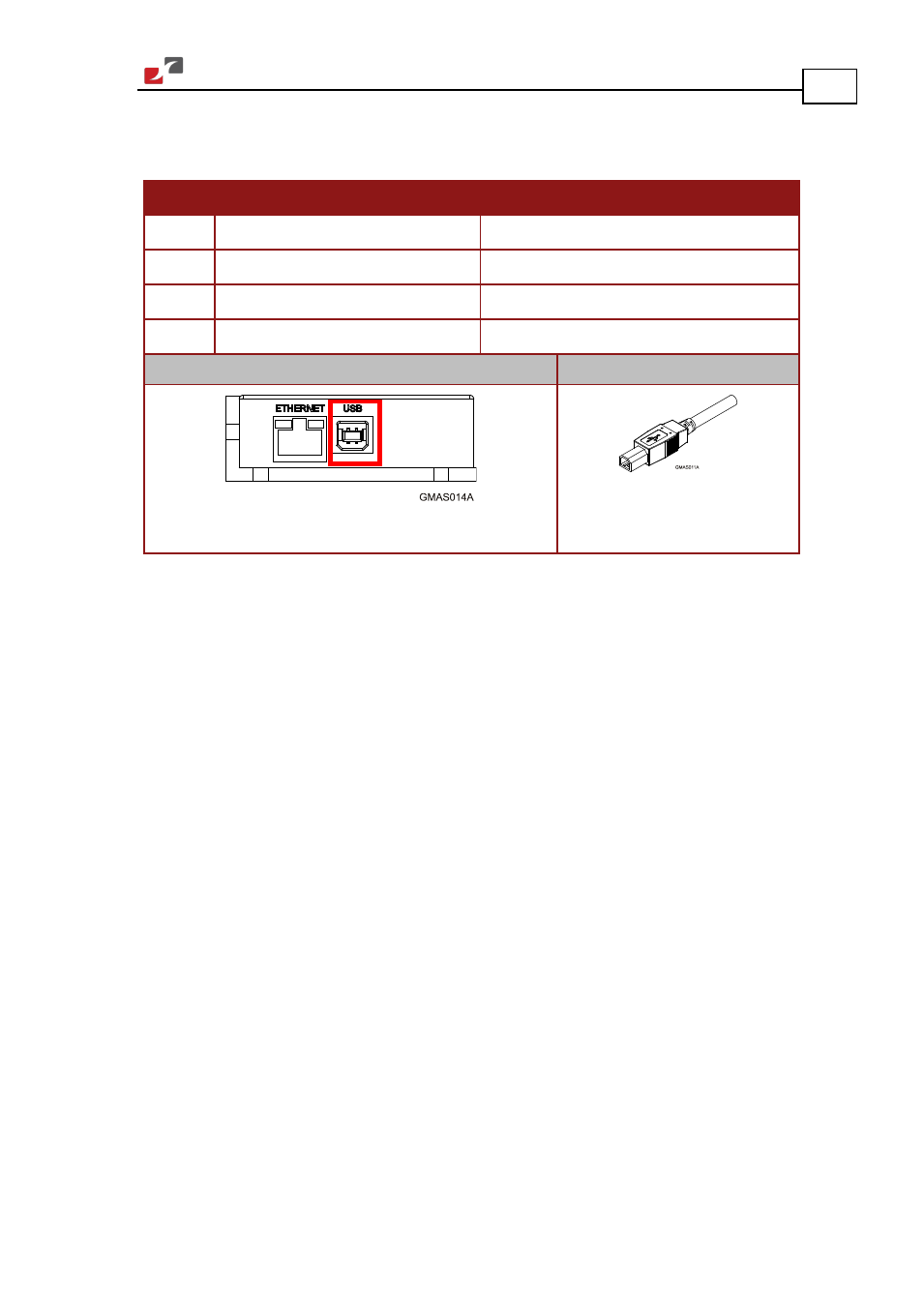

Pin Signal Function
1 USB VBUS USB VBUS from host
2 USBD- USB _N line
3 USBD+ USB _P line
4 USB COMRET USB communication return
Connector Location Cable Connector
USB 2.0 Connector
USB Device Type B Plug
Table 7: USB Pin Assignments
3.4. Mounting the Gold Maestro
The Gold Maestro has three mounting options:
1. Wall mount
2. Surface mount
3. Mounting on a DIN rail
3.4.1. Wall Mount
Two M4 round head screws, one through each opening in the heat sink, are used to mount the
Gold Maestro (see the diagram below) on a wall.
