2.3. Communication Options
The Gold Maestro can communicate with a host PC through either a standard Ethernet port or
through USB using a binary protocol for maintenance.
The Gold Maestro communicates with its network devices using either EtherCAT or CAN
networks.

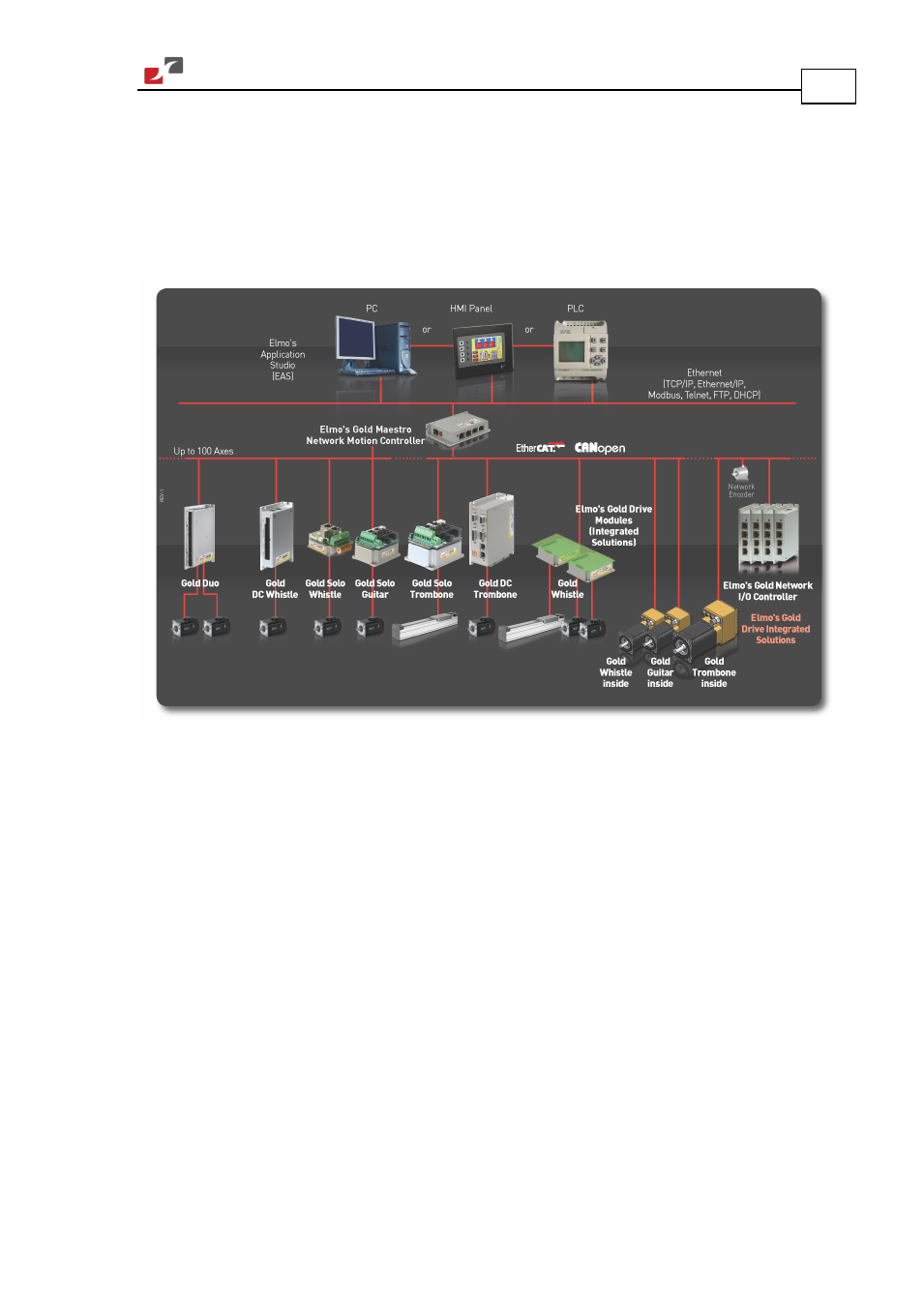

Figure 1: The Gold Maestro Network Connections
2.4. How to Use this Guide
This manual is part of a documentation set that can be used to set up and program the motion
of any machine whose motors are controlled by Elmo’s SimplIQ or Gold Line servo drives.
When used in conjunction with the Gold Maestro Software Manual it describes everything
needed to get the Gold Maestro up and running. Please read the safety instructions in the first
chapter before starting.
After you have successfully mounted and installed the Gold Maestro we suggest that you read
the Gold Maestro Software Manual. If you have not already done so, follow the instructions in
the Installation Guide that arrived with your servo drive, and install a drive. At least one drive
needs to be connected to the Gold Maestro in order for it to function as a motion controller.
