Chapter 4: Basic operation
TruVision DVR 10 User Manual
29

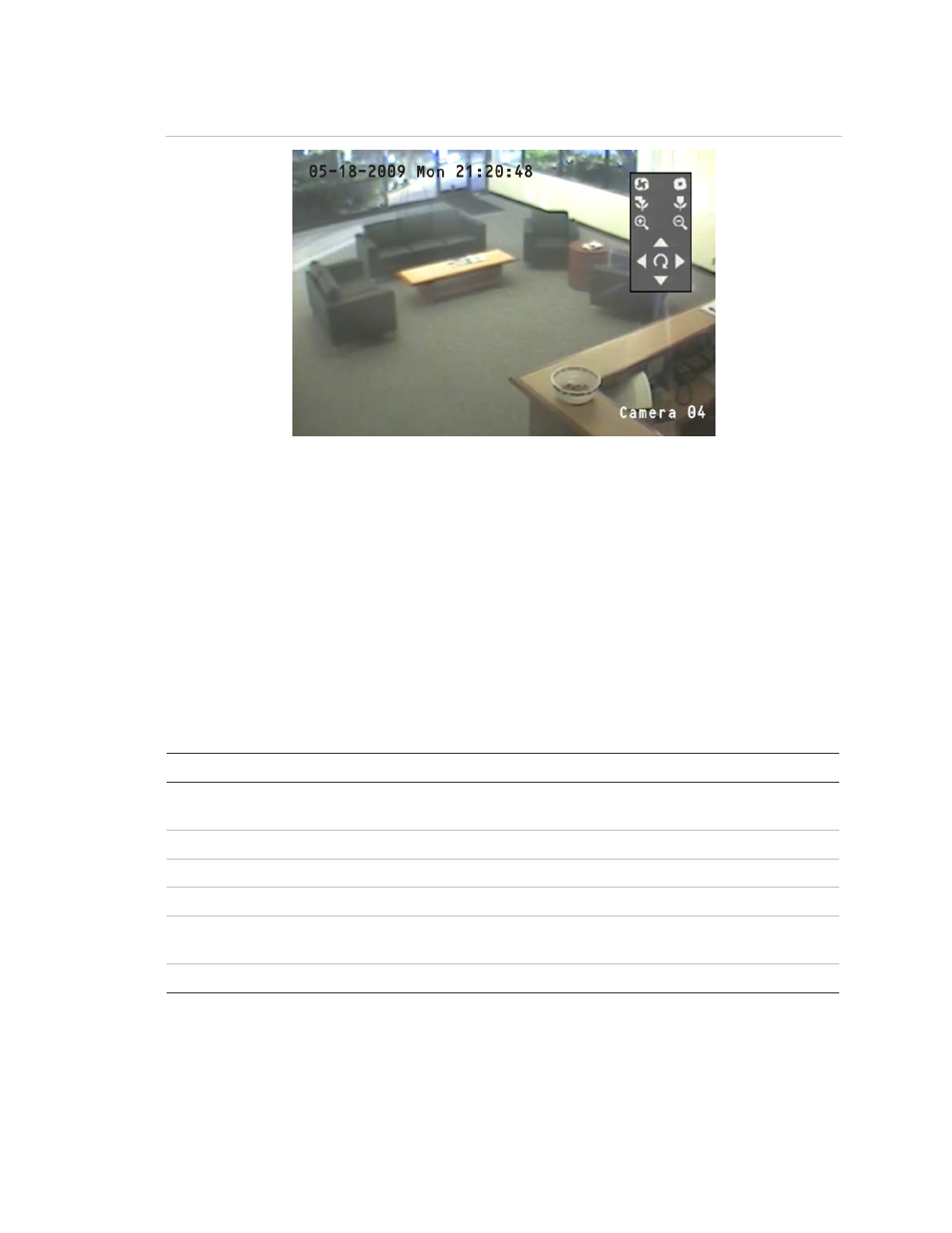

Figure 12: PTZ control interface
Selecting a camera
When in PTZ control mode, press the numeric buttons to select a camera. For
example, press the number 2 button to select the second camera PTZ.
After selecting the camera PTZ, you can use the control buttons to control the PTZ.
PTZ control buttons description
Table 10 below provides descriptions of the PTZ control buttons.
Table 10: PTZ control buttons description
Button Description
Up, Down, Left, Right Arrow
buttons
Pans left and right. Tilts up and down.
ZOOM+, ZOOM-
Zooms in and out.
FOCUS+, FOCUS-
Focuses in and out.
IRIS+, IRIS-
Opens and closes the iris controls.
REC/SHOT
Calls up a preset position. This feature is camera and protocol-
specific.
PLAY/AUTO
Calls up auto panning.
Calling up a preset PTZ position
There are several ways to call up a preset position.
