5 95-8661 4.2
lOggINg
Events that can be logged in the UD10 include:
• Calibration (Date, time and success Y/N are logged
for detectors that do not provide their own calibration
logging capabilities.)
Faults that are logged in the UD10 include:
• Detector fault
• Low power
• General fault
Alarms that are logged in the UD10 for gas detector inputs
include:
• High gas alarm
• Low gas alarm
• Aux alarm.
The UD10 has its own battery backed real time clock
(RTC) and its own event logs. The RTC in the UD10
can be set from the UD10 display, Modbus or HART
interfaces. The RTC in the gas detector (any HART
detector having an RTC) can be set independently
using the UD10 menu, or by using the synchronize
command, which will set the detector RTC to the same
time as the UD10 RTC. See Figure 3.
The UD10 can display the detector event and
calibration logs (if available). The UD10 has its own
1,000-entry event log available under the Display
Status->History->Event Log menu.
UD10 event logs can be read from the HART interface
or the Modbus interface.
Detector calibration and event logs can also be read
from the detector HART interface (where available).
importAnt sAfety notes
CautIon
The wiring procedures in this manual are intended
to ensure proper functioning of the device under
normal conditions. However, because of the
many variations in wiring codes and regulations,
total compliance to these ordinances cannot be
guaranteed. Be certain that all wiring complies
with the neC as well as all local codes. If in
doubt, consult the authority having jurisdiction
before wiring the system. Installation must be
done by a properly trained person.
CautIon
This product has been tested and approved
for use in hazardous areas. However, it must
be properly installed and used only under the
conditions specified within this manual and
the specific approval certificates. Any device
modification, improper installation, or use in a
faulty or incomplete configuration will render
warranty and product certifications invalid.
CautIon
The device contains no user serviceable
components. Service or repair should never be
attempted by the user. Device repair should be
performed only by the manufacturer.
LIabILItIes
The manufacturer’s warranty for this product is
void, and all liability for proper function of the
detector is irrevocably transferred to the owner or
operator in the event that the device is serviced or
repaired by personnel not employed or authorized
by Detector electronics Corporation, or if the
device is used in a manner not conforming to its
intended use.
CautIon
observe precautions for handling electrostatic
sensitive devices.
CautIon
Unused conduit entries must be closed with
suitably certified blanking elements upon
installation.
GAS
DETECTOR
UD10
CONTROL
SYSTEM
PLC/DCS
CONTROL
SYSTEM
PLC/DCS
AMS
HART
Handheld
HART
Handheld
HART
HART
MODBUS
or
FOUNDATION FIELDBUS

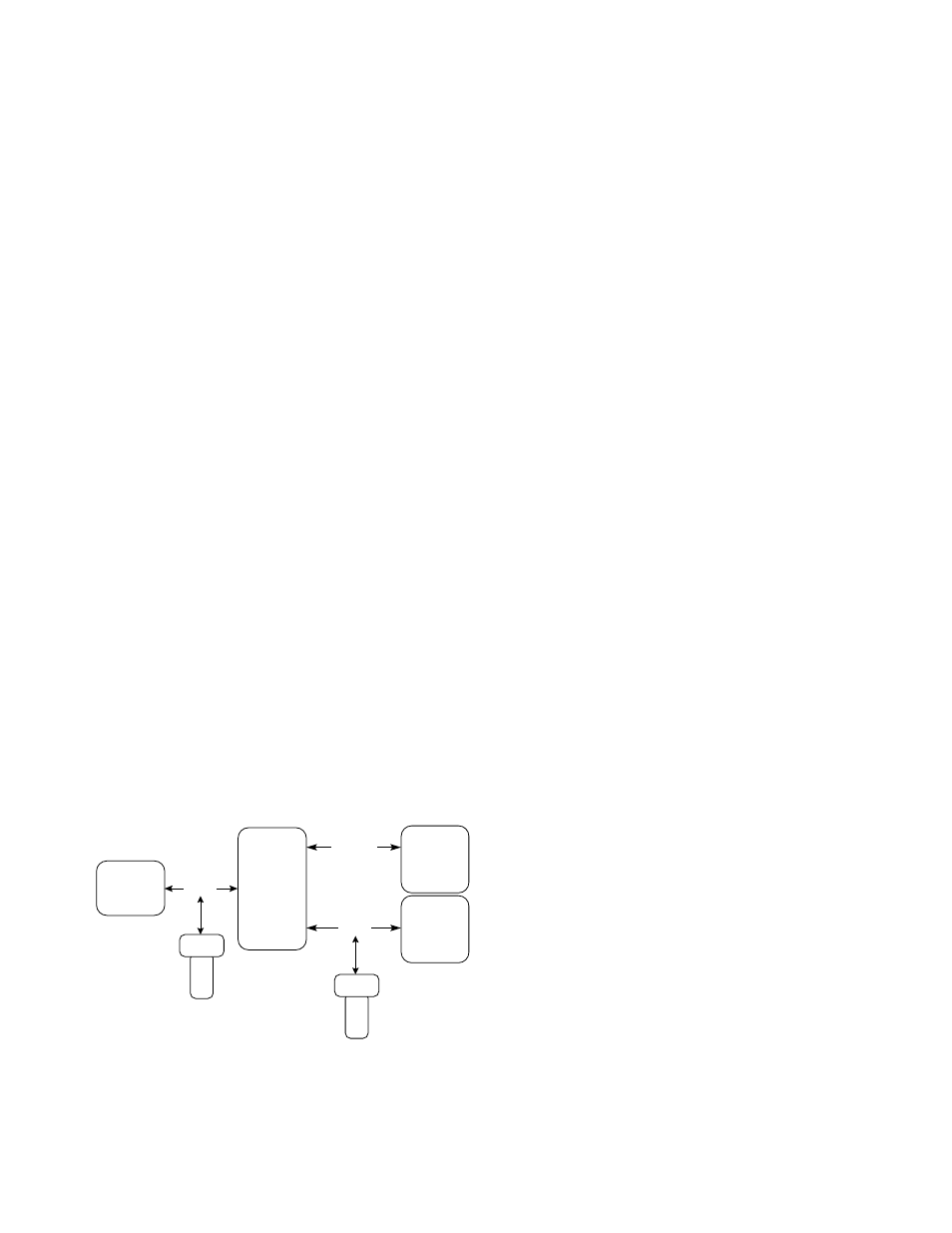

Figure 3—UD10 logging
