4.2 95-8661 M-2
NOTE 1 REMOVE UD10 ELECTRONICS MODULE FOR ACCESS
TO CGS INTERFACE BOARD (NO TOOLS REQUIRED).
NOTE 2 HOUSINGS MUST BE ELECTRICALLY CONNECTED TO
EARTH GROUND.
CGS INTERFACE BOARD
LOCATED INSIDE
UD10 HOUSING
B2507
CONNECT TO UD10 MODULE VIA
CABLE (FACTORY INSTALLED)
CGS INTERFACE BOARD
CGS
SENSOR
SW1
J3
BLK
WHT
RED
1
2
3
P10
J10
J11
CONNECT CGS SENSOR
TO TERMINAL J10
SET ALL SWITCHES
TO THE “ON” POSITION
(FACTORY DEFAULT SETTING)
TERMINAL J11 FOR FACTORY USE ONLY
SHIELD
C
ALIBR
A
TE
24 VDC
–
4-20 mA 24 VDC
+

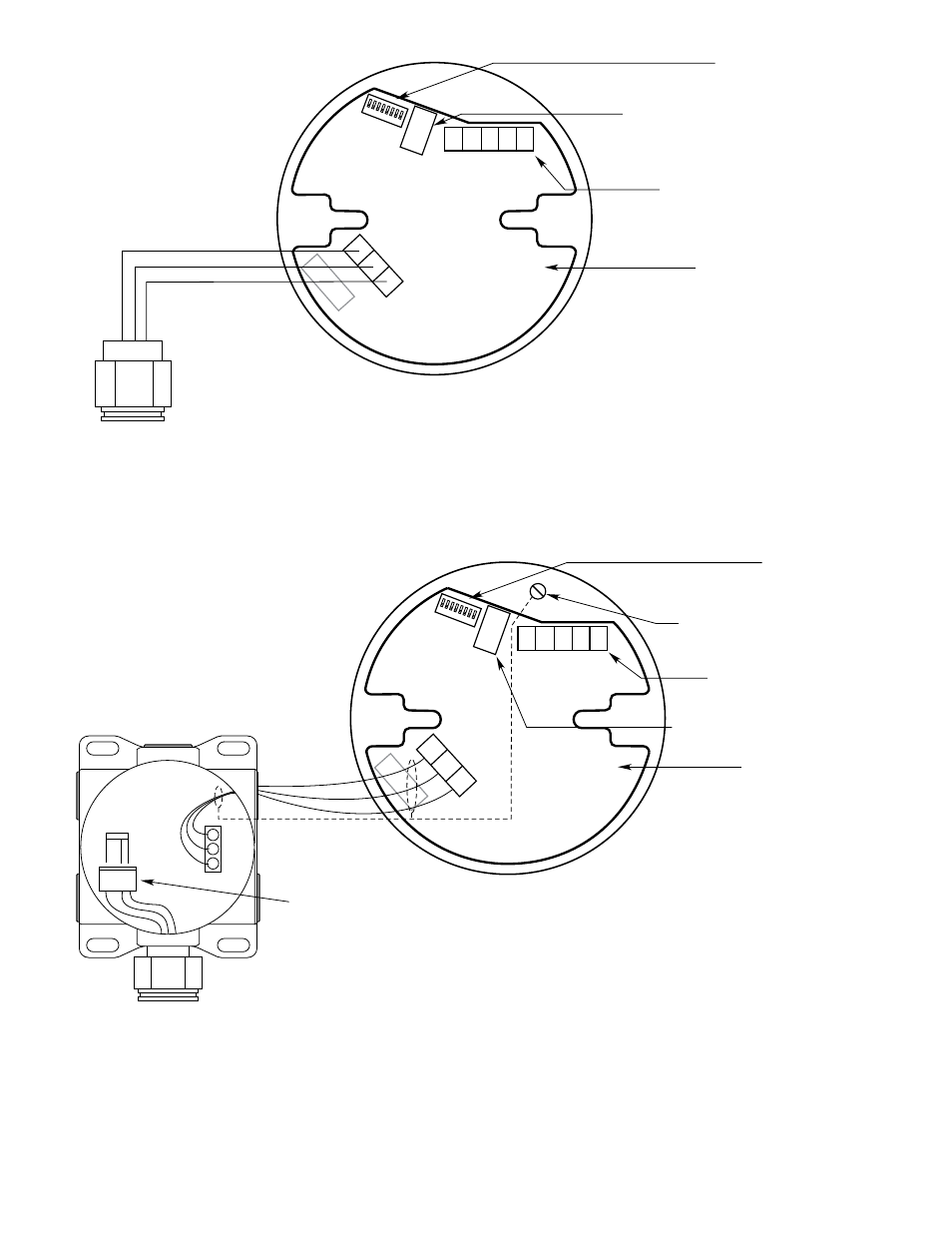

CGS Sensor Wired Directly to UD10
NOTE 1 REMOVE UD10 ELECTRONICS MODULE FOR ACCESS
TO CGS INTERFACE BOARD (NO TOOLS REQUIRED).
NOTE 2 HOUSINGS MUST BE ELECTRICALLY CONNECTED TO
EARTH GROUND.
CGS INTERFACE BOARD
LOCATED INSIDE
UD10 HOUSING
B2508
CONNECT TO UD10 MODULE VIA
CABLE (FACTORY INSTALLED)
CGS INTERFACE BOARD
SW1
J3
BLK
WHT
RED
1
2
3
P10
J10
J11
SET ALL SWITCHES
TO THE “ON” POSITION
(FACTORY DEFAULT SETTING)
TERMINAL J11 FOR FACTORY USE ONLY
CONNECT KEYED SENSOR
PLUG TO PIN CONNECTOR
CONNECT SHIELD TO EARTH GROUND
TERMINAL WITHIN UD10 HOUSING
CGS
SENSOR
BLK
WHT
RED
MODEL STB1
SENSOR TERMINATION BOX
SHIELD
C
ALIBR
A
TE
24 VDC
–
4-20 mA 24 VDC
+
UD10 Wired to CGS Sensor with STb Termination box
