4. Connections
4 5 6 7 8 9
1 2 3
4 5 6 7 8 9
1
Pin Number
Pin Number
DB9
Female
Connector
DB9
Female
Connector
2 3
Image 4-8

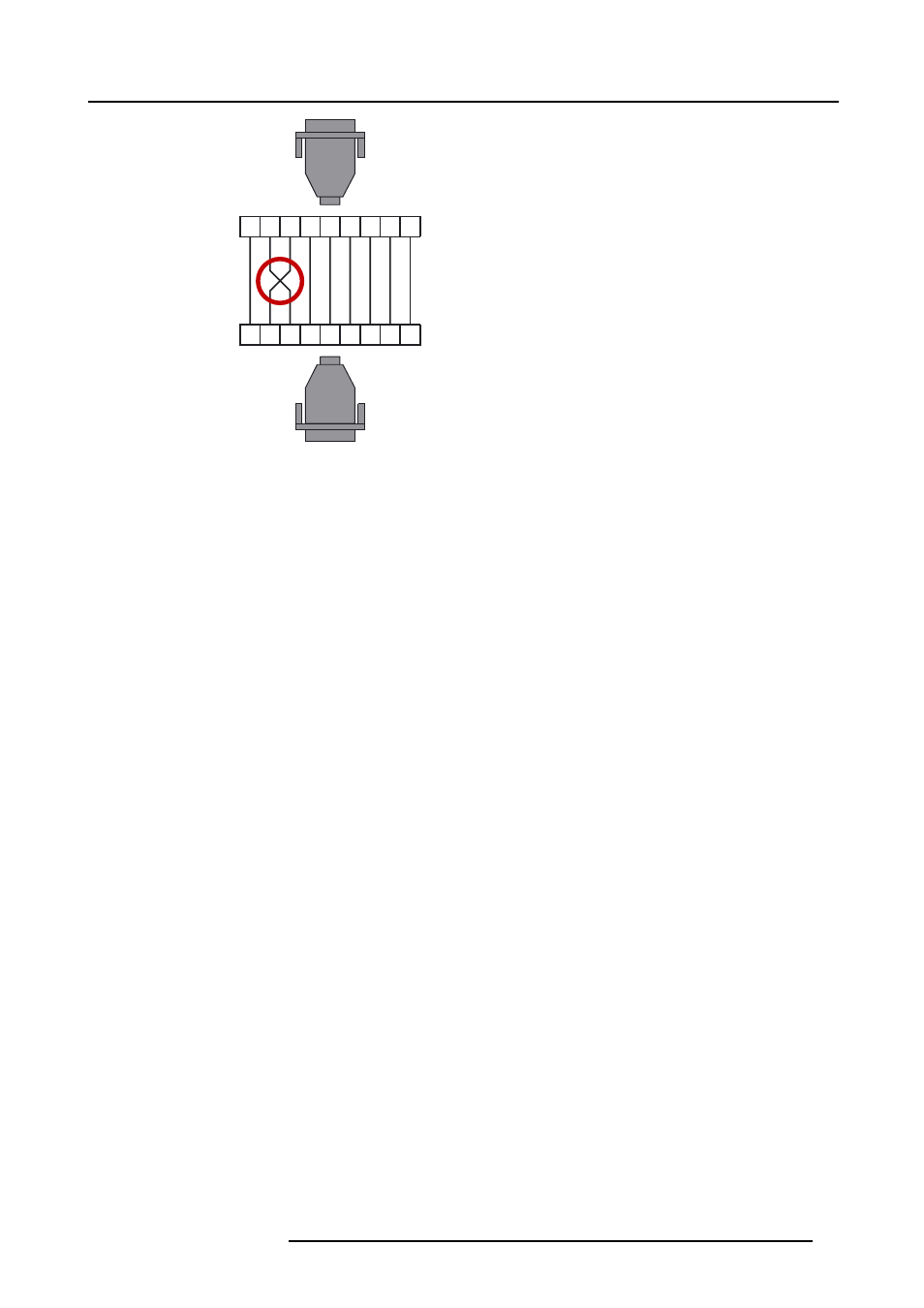

Make a Custom Null Modem Cable
2. Use the Custom Null Modem Cable to connect the COM 800 port of the master-projector to the ’To Switcher’ port on the frontside
of the COM 800 Splitter.
R5976654 SLM R12+ 27/01/2005
43
