3 reinstalling the side panel, Reinstalling the side panel – Barco SLM R12+ User Manual
Page 23
3. Installation Guidelines
A
A
A

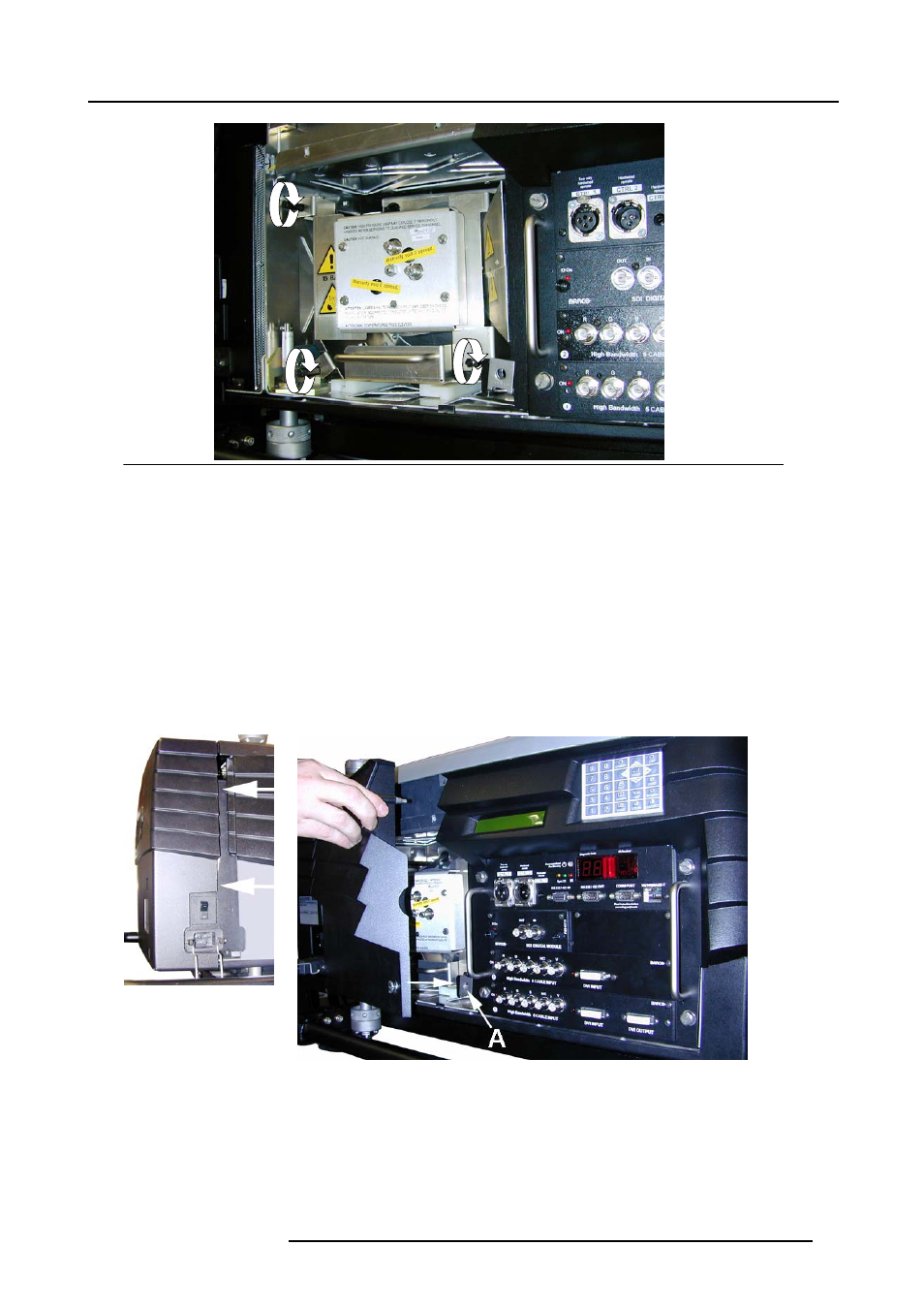

Image 3-11
Lamp unit fixation
3.5.3
Reinstalling the Side Panel
What has to be done
After the new lamp unit has been installed, the side panel has to be remounted.
Necessary tools
A flatblade screwdriver of 5 mm
Reinstalling the side panel
1. Move the cover guides under the back cover and push the front of the cover against the projector frame lining up the cover lock
screw with the speed nut (A) on the frame.
Image 3-12
Mounting the side cover
Image 3-13
Closing the side cover
2. Turn with a screwdriver the side panel lock screw (B) a quarter turn clockwise to lock.
R5976654 SLM R12+ 27/01/2005
19
