Barco SLM R12+ - Manual (Page 45)

4. Connections
OUT IN
On
R 9840450
HD SDI DIGITAL MODULE
P R P B
On
COMM PORT Ethernet RS232/422 OUT RS232/422 IN
IR-Receiver Diagnostic Code Green Operation
Red Stand-by
IR Sync OK
Hardwired
remote
CTRL 1
Hardwired
remote
CTRL 2
Two way
hardwired
remote
CTRL 3
On On
On On
DVI INPUT
DVI INPUT DVI OUTPUT
High Bandwidth 5 CABLE INPUT
High Bandwidth 5 CABLE INPUT
R G B H/C V
R G B H/C V
DIGITAL VIDEO DECODER
S-Video Y/Vid
1 2 3

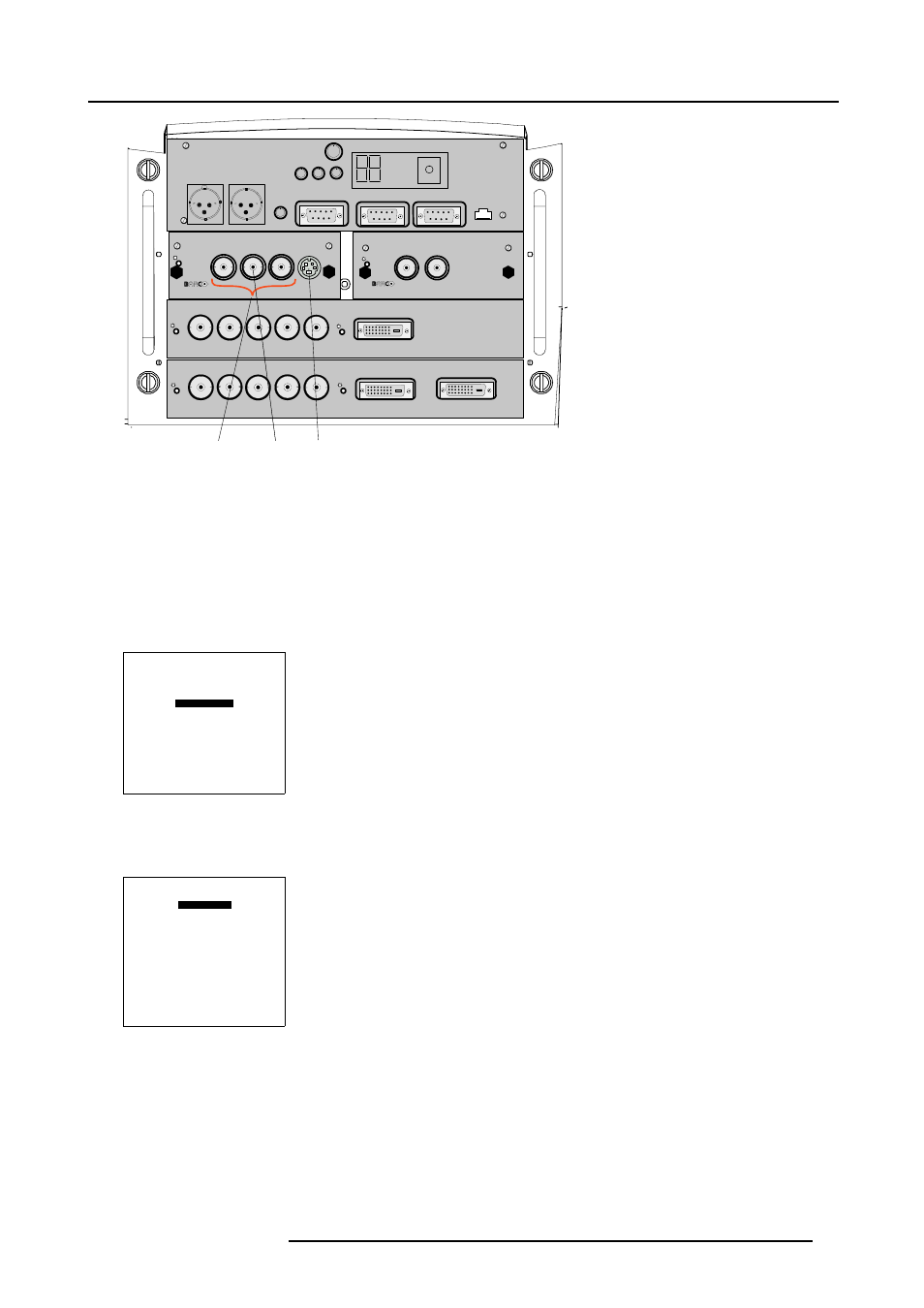

Image 4-7
1 Component video input
2 Composite Video input
3 S-Video input
How to select the digital video decoder input?
1. Key in the corresponding slot number on the RCU or the local keypad.
How to change the input slot setting?
1. Press ADJUST or ENTER key to start up the Adjustment mode.
2. Push the cursor key ↑ or ↓ to select Installation.
ADJUSTMENT MODE
Select a path from below :
RANDOM ACCESS
INSTALLATION
SERVICE
Select with ↑ or ↓
then
to return
Menu 4-7
3. Press ENTER.
4. Press the cursor key ↑ or ↓ to select Input Slots.
INSTALLATION
INPUT SLOTS
800 PERIPHERAL
SOURCE SWITCHING
NO SIGNAL
CONTRAST ENHANCEMENT
CONVERGENCE
CONFIGURATION
LENS
QUICK ACCESS KEYS
OSD
INTERNAL PATTERNS
Select with ↑ or ↓
then
to return
Menu 4-8
5. Press ENTER.
The internal system will scan the inputs and displays the result in the Input Slots menu.
R5976654 SLM R12+ 27/01/2005 41
