B. Built-In Dust Filters
2. Brush most of the dust off with a soft brush and/or blow dust away with compresses air.
Tip: Always replace damaged and/or too dirty air filters by a new one.
How to reinstall the cleaned or new air filter
1. Place the air filters (A) on their place in the projector rear cover.
A
A
B
C

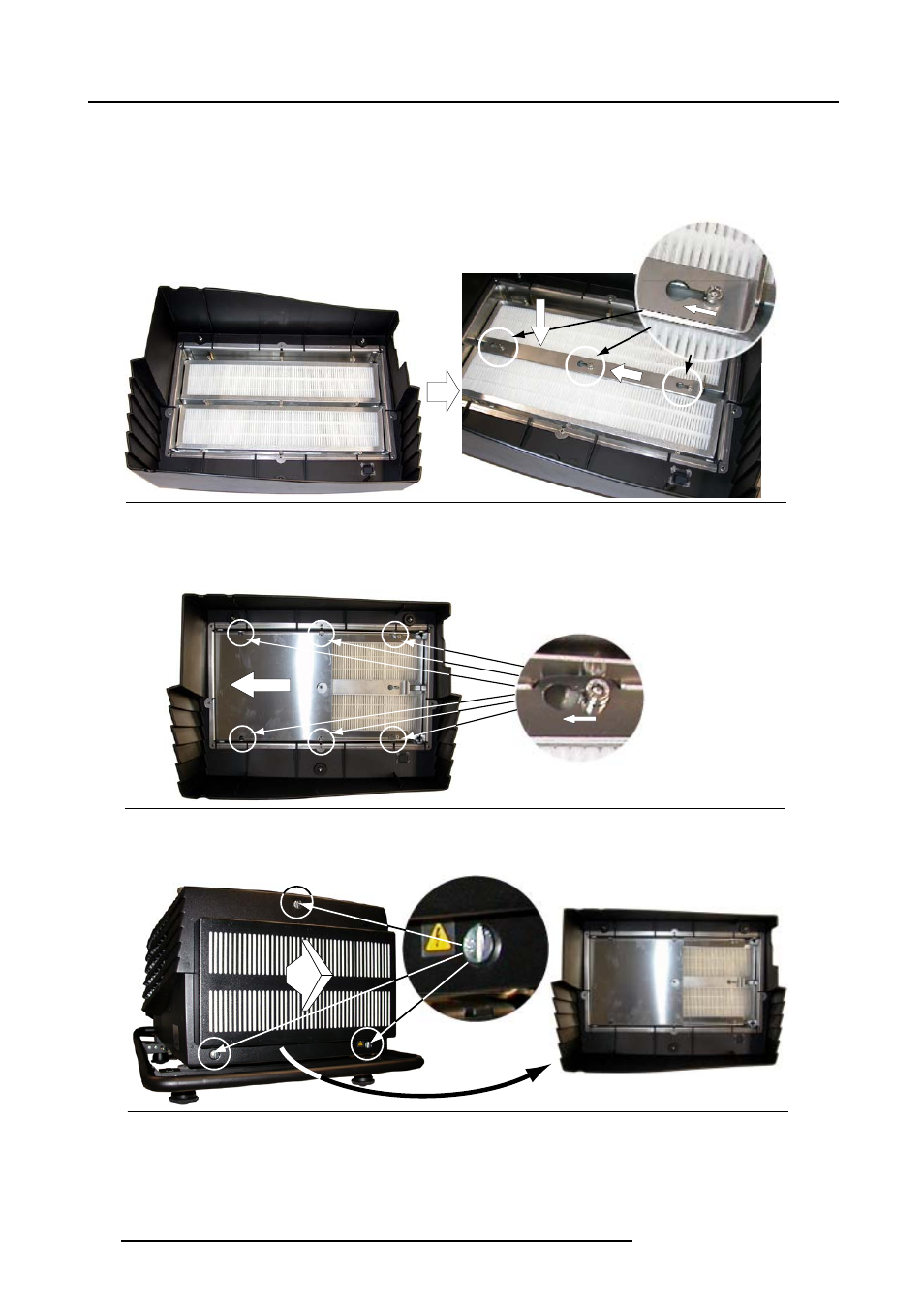

Image B-18
Mounting the fixation bar
2. Place the metal fixation bar (B) on its place, slide it to the left and secure by tightening the 3 socket screws (C).
3. Place the metal fixation plate (D) on its place, slide it to the left and secure by tightening the 6 socket screws (E).
E
D
Image B-19
Mounting the fixation plate
4. Reinstall the rear cover onto the projector and secure by turning the captive screws (A) half a turn clockwise.
A
Image B-20
Mounting the projector rear cover
