3. Installation Guidelines

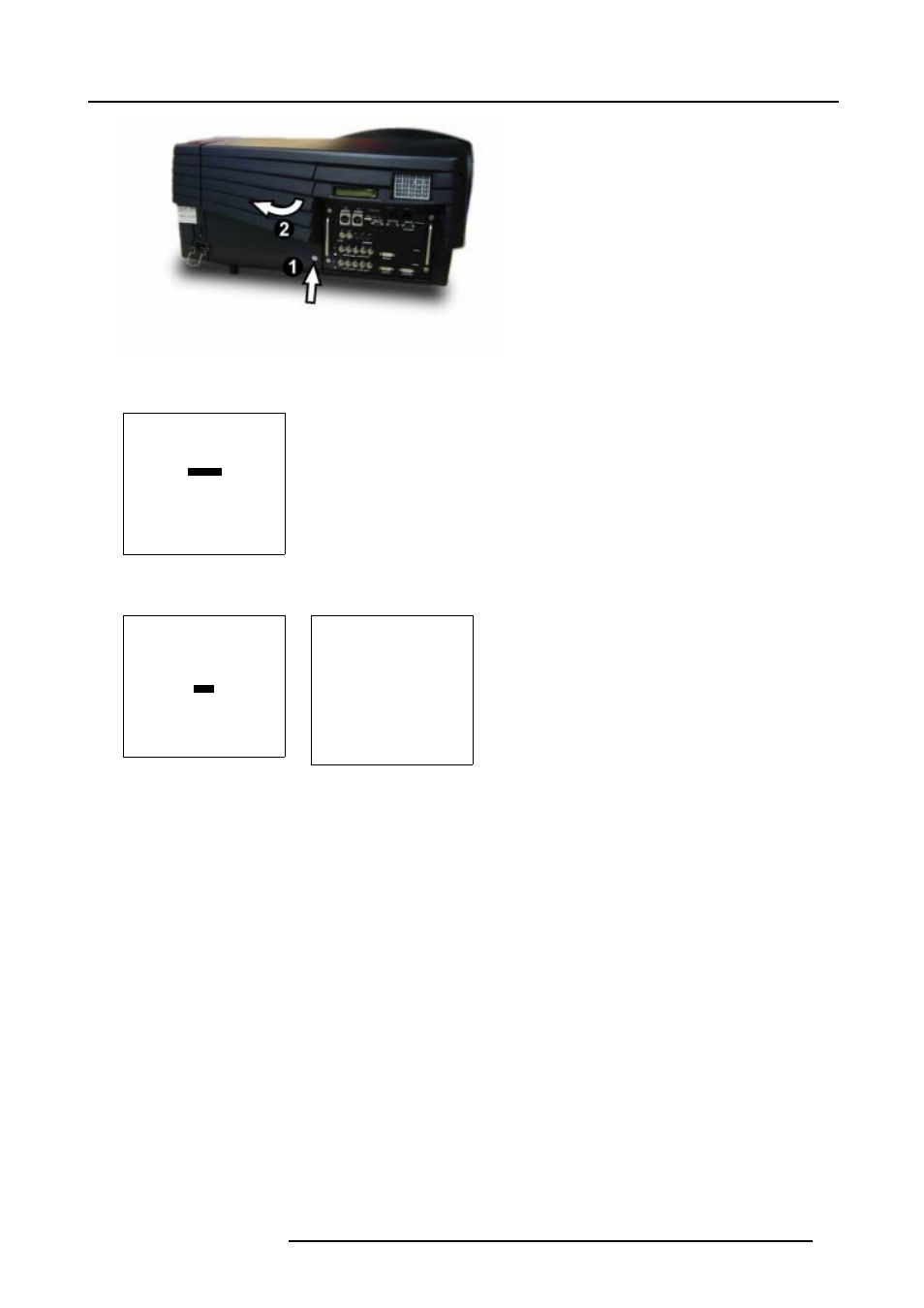

Image 3-15
Lamp adjustment access
3. Start up the adjustment mode and select Service.
ADJUSTMENT MODE
Select a path from below :
RANDOM ACCESS
INSTALLATION
SERVICE
Select with ↑ or ↓
then
to return
Menu 3-2
4. Select Lamp. The Z-axis value indication (lamp menu in service mode) will be helpful while turning screw B .
SERVICE
IDENTIFICATION
CHANGE PASSWORD
CHANGE LANGUAGE
CHANGE PROJ. ADDRESS
SERIAL COMMUNICATION
NETWORK
LAMP
DIMMING
MORE...
Select with ↑ or ↓
then
to return
Menu 3-3
LAMP
Constant Light output [OFF]
Using [RS port]
Mode [NORMAL]
Serial number : R101111
Article number : R9840xxx
Run time : 10 hours
Remaining run time : 490
hours
Number of strikes : 10
Z_AXIS : 100
Select with ↑ or ↓
then
to return.
Menu 3-4
5. Loosen the lock nut A, securing the position of the adjustable screw (B), on the back of the lamp casing (nutdriver 10).
R5976654 SLM R12+ 27/01/2005 21
