3. Installation Guidelines

3.5.1

Access to the Lamp Unit.

What has to be done

To access the lamp casing, a side panel has to be removed.

Necessary tools

A flatblade screwdriver of 5 mm

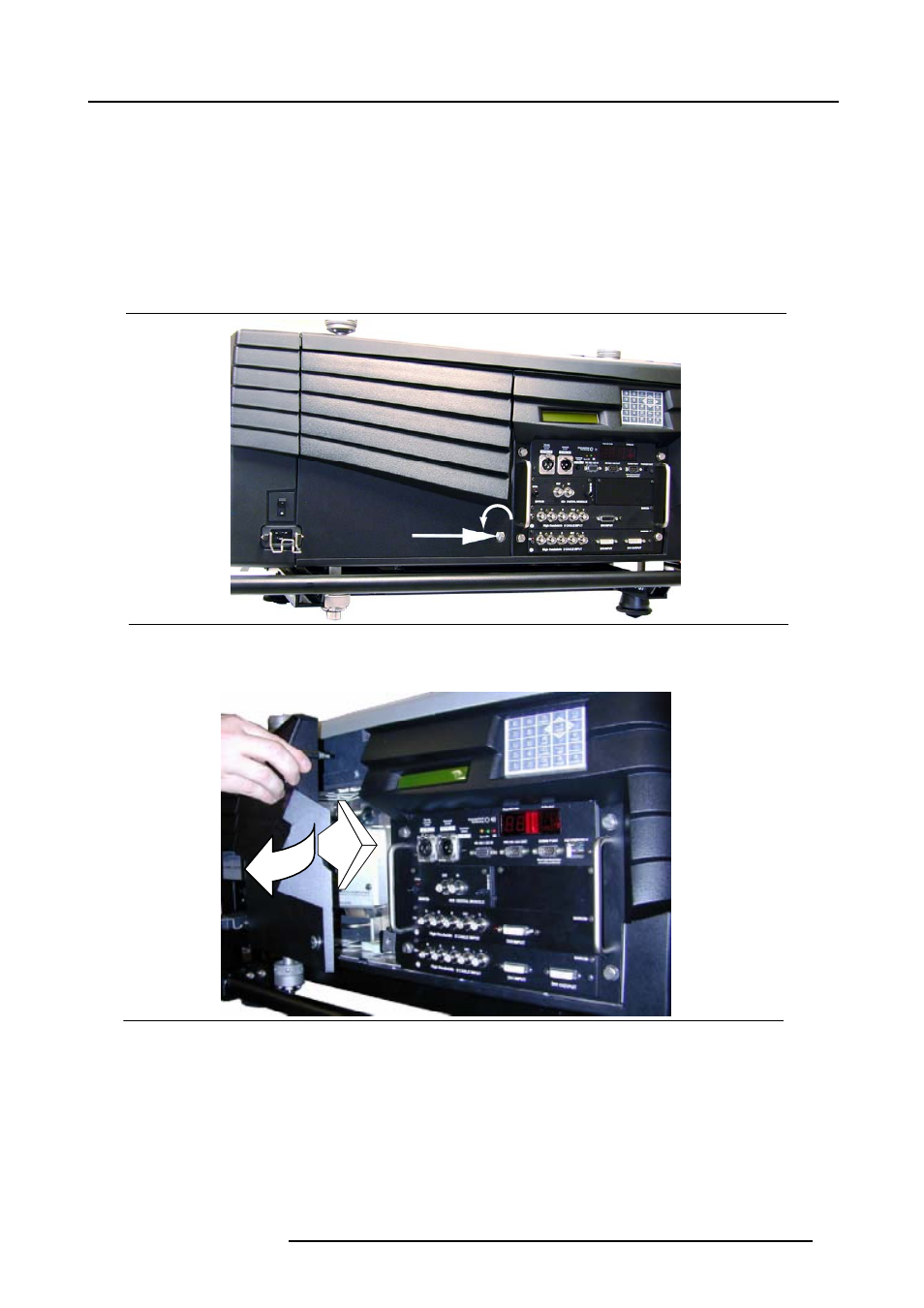

Removing the side panel

1. Turn with a screwdriver the side panel lock screw (A) a quarter turn counter clockwise.

A

Image 3-7
Unlocking the side cover

2. Pull the right side of the panel towards you and next to the right to remove.

A

B

Image 3-8
Lamp cover removal

3.5.2

Installation of the new Lamp Unit.

What has to be done

First remove the lock nut on each spacer screw and next slide the lamp unit into the projector frame.

Necessary tools

Flatblade screwdriver of 5mm or Nut driver 8mm

R5976654 SLM R12+ 27/01/2005

17
