B. Built-In Dust Filters
B
A
C

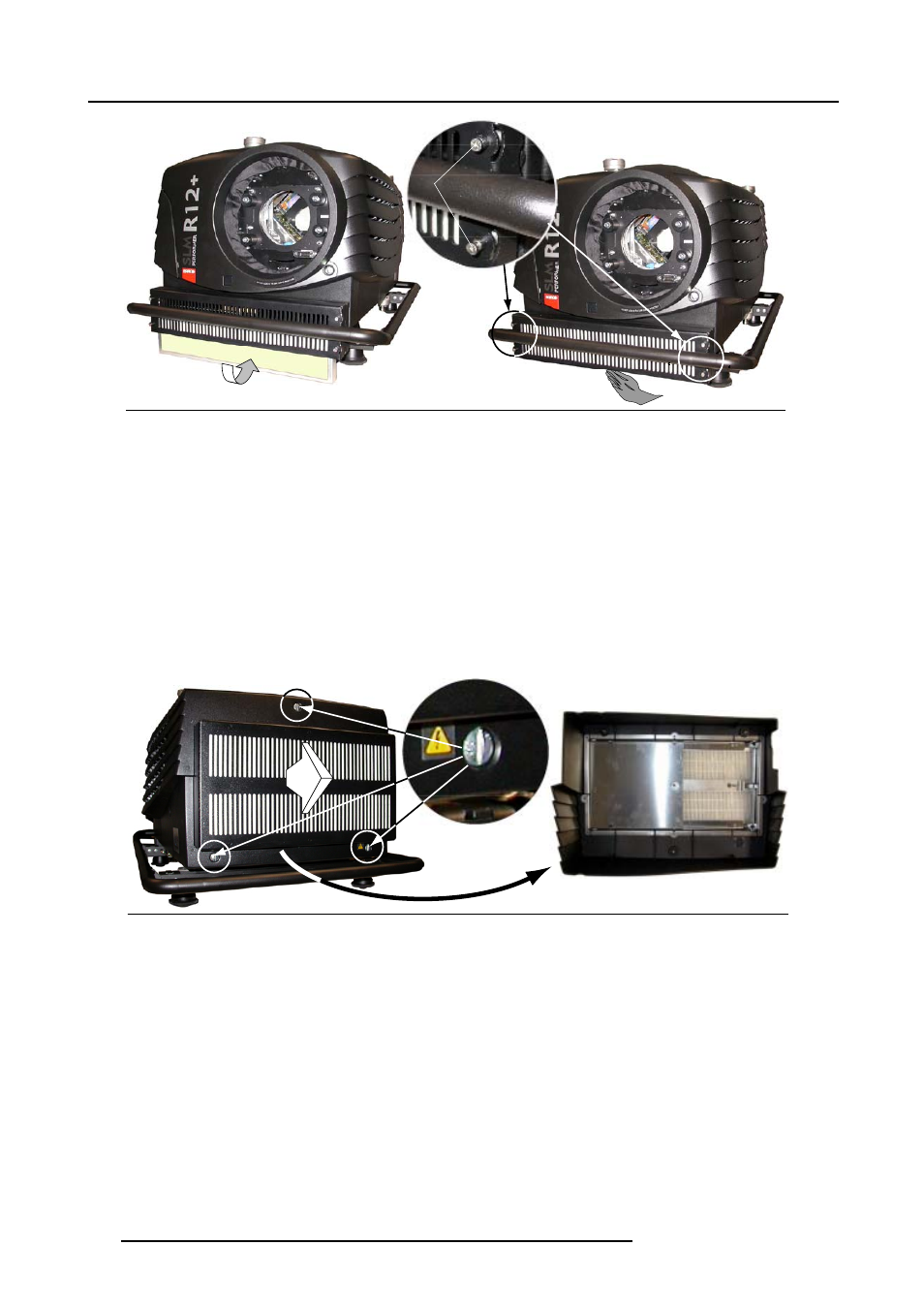

Image B-13
2. Secure the position of the air filter in its casing by tightening the 4 captive screws (C).
B.2.2.2 Dust filters on the rear side of the projector
Access to the air filters
To access the air filters on the rear of the projector, first the projector rear cover has to be removed.
Necessary tools
Allen key of 3 mm
Removal of the projector rear cover
1. Turn the 3 captive screws, securing rear cover to projector frame, half a turn counterclockwise.
A
Image B-14
Projector rear cover removal
2. Remove the rear cover from projector.
Removal of the Air filters
1. Loosen the 6 hexagon socket screws (B) , securing metal fixation plate (A) to rear cover.
144 R5976654 SLM R12+ 27/01/2005
