COATS Kit 85607471 Leverless Bead Lifter User Manual
Page 9
Important: Always read and follow the operating instructions.
• 9
APX Series

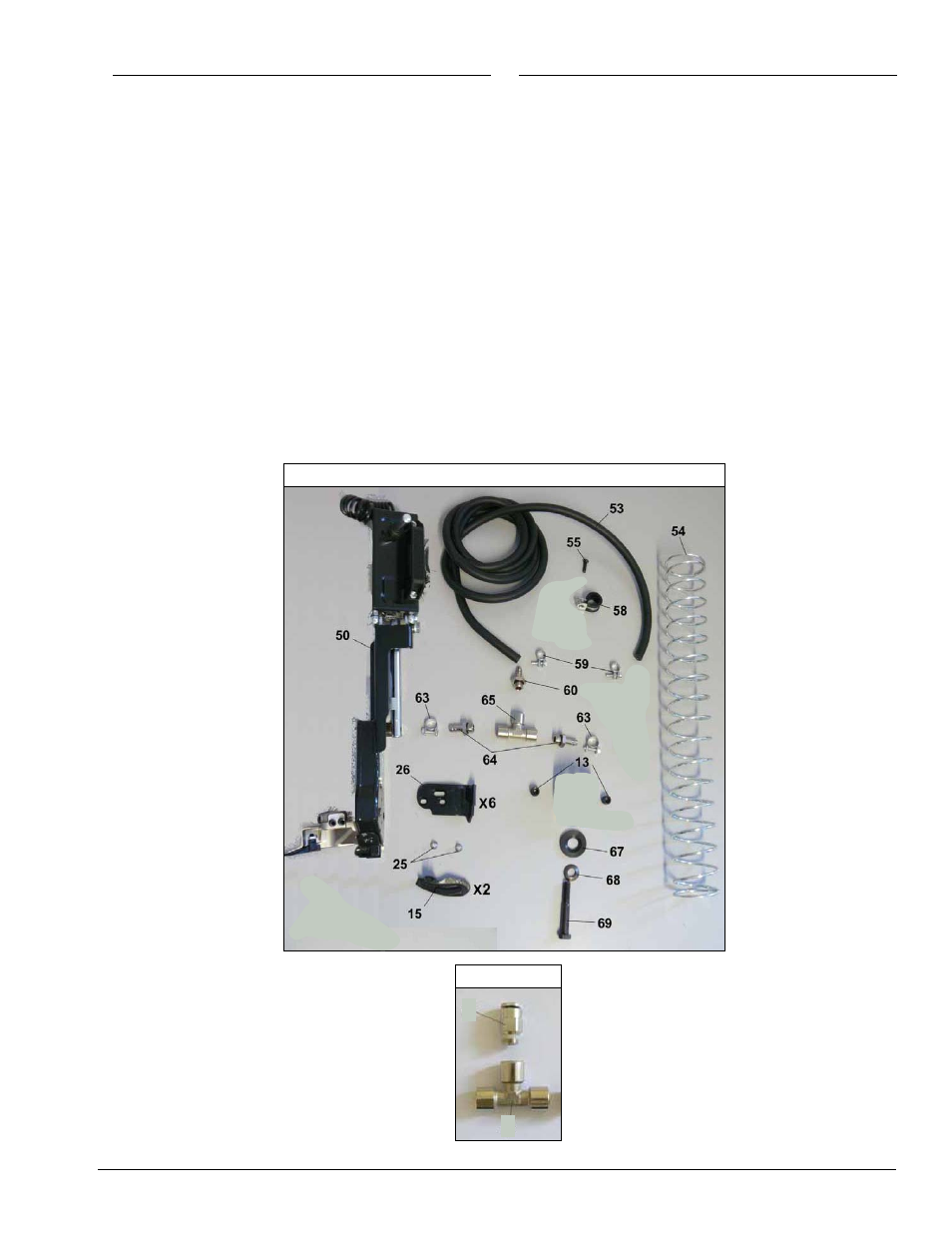

Item No Part No. Description
42
83019208 8 x 1, 25 x 180 Special Screw
43
83019204 M8 X 1, 25 x 164 Special Screw
44
83031709 Cylinder Liner L=125
45 83015024 Flange
46 83199601 Scraper
47 83019467
D.75 SO Side Hole M6 Back
Flange
48 87019199 Tool
Holder
49 83019959
6 x 6 Hose L=240
51 84396878 12 x 25 x 0, 5 Steel Shim
52 83031595 Threaded
Tab
53
8099053 1/4” Hose L=7.5 Ft
54 83031235 Spring
55 8106301
1/4-20 Screw
58 8182044 Hose
Clamp
59 85606362 1/4”
Clamp
60 8000378 1/4”
Barb
63 85606363
3/8” Clamp
Item No Part No. Description
64 8101898 3/8”
Barb
65 8000643
Tee
67 84395804 2 x 35 x 5, G Type 14, Washer
68 84395805
2 x 21 x 4, C Type 10, Washer
69
8107715 3/8-16 UNC Screw, L=1.25”
*85 84199461 Adapter
*86 84194089 1/8” Union
*87 84194088 Quick Union
*88
84198993 1/8” Quick Union
*89 84199026 Union
90 85000045 Tee
91 84198778 Union
*Not Shown
70X Series
90
91
