4 • Important: Always read and follow the operating instructions.
APX Series Installation
1. Tilt tower forward and rotate slide shaft control to
the DOWN position. Do not lock.
2. Disconnect power and air; empty all residual air.
3. Remove the mount/demount tool and rubber
bumper.
4. Remove the screw from top of vertical slide cap.
5. Remove rubber stop and hardware from vertical
shaft.
6. Slide vertical shaft out the top and rotate it 180
degrees; then re-insert the vertical shaft.
7. Place spring over top of vertical shaft.
8. Replace screw (from step 5) in top cap.
9. Install leverless bead lifter to the shaft following
the 50/70 series installation steps 10 & 11.
10. Place air coil hose through hole in tower bracket.
11. Cut 1/8-inch tube as shown.
12. Assemble (2) cut ends to tee supplied with kit
and push-connect coil hose to tee fitting.
13. Re-connect air supply to machine. Inspect and
correct leaks if found.
14. Be sure to perform the steps for the Leverless
Bead Lifter Adjustment Procedure on page 7.

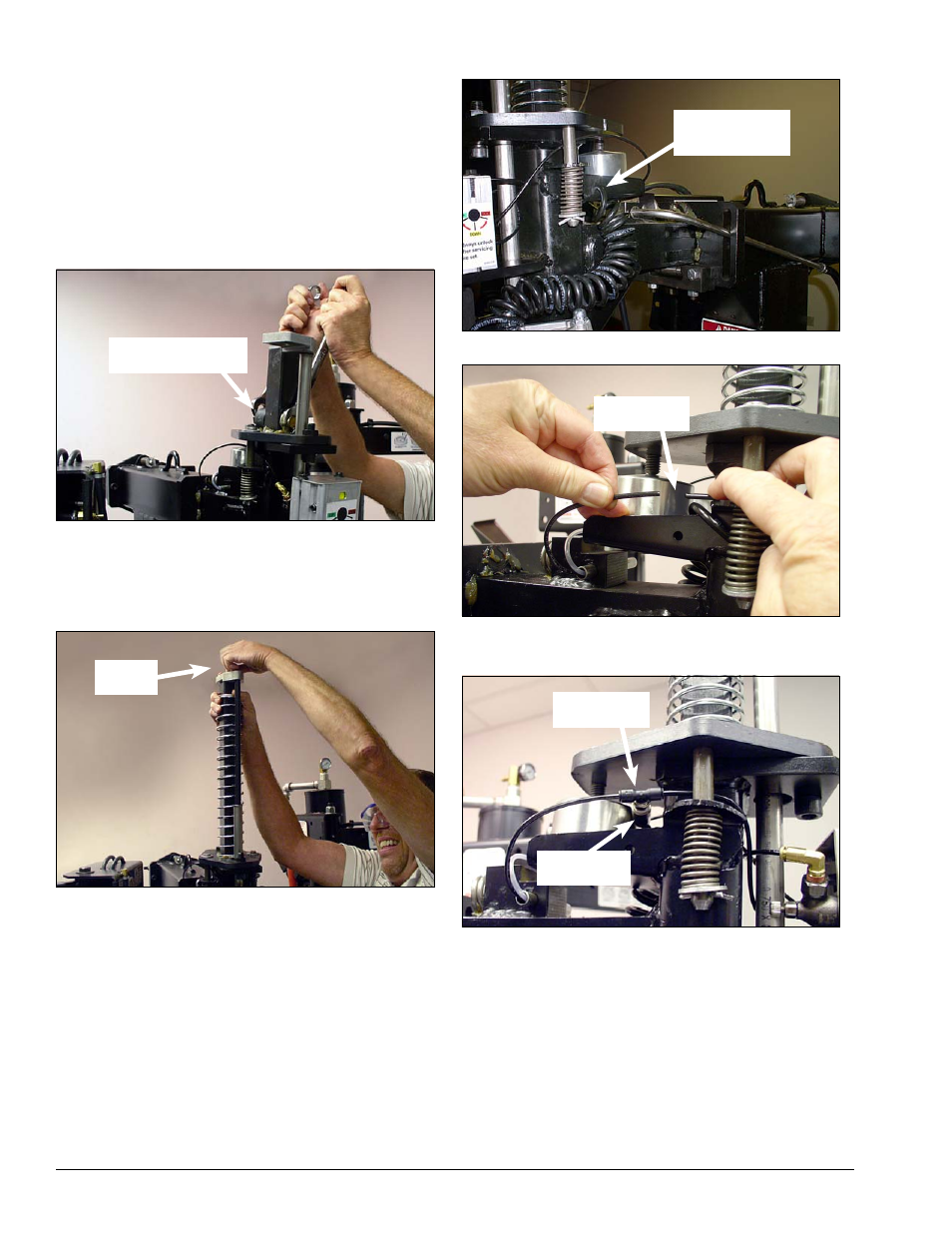

Remove Hardware
From Vertical Shaft
Route Coil Hose
Through Hole In
Bracket
Replace
Screw
Cut Tubing
Install Tee
Fitting
Connect Coil
Hose
