2 • Important: Always read and follow the operating instructions.
Qualifying Test For
Machine Compatibility

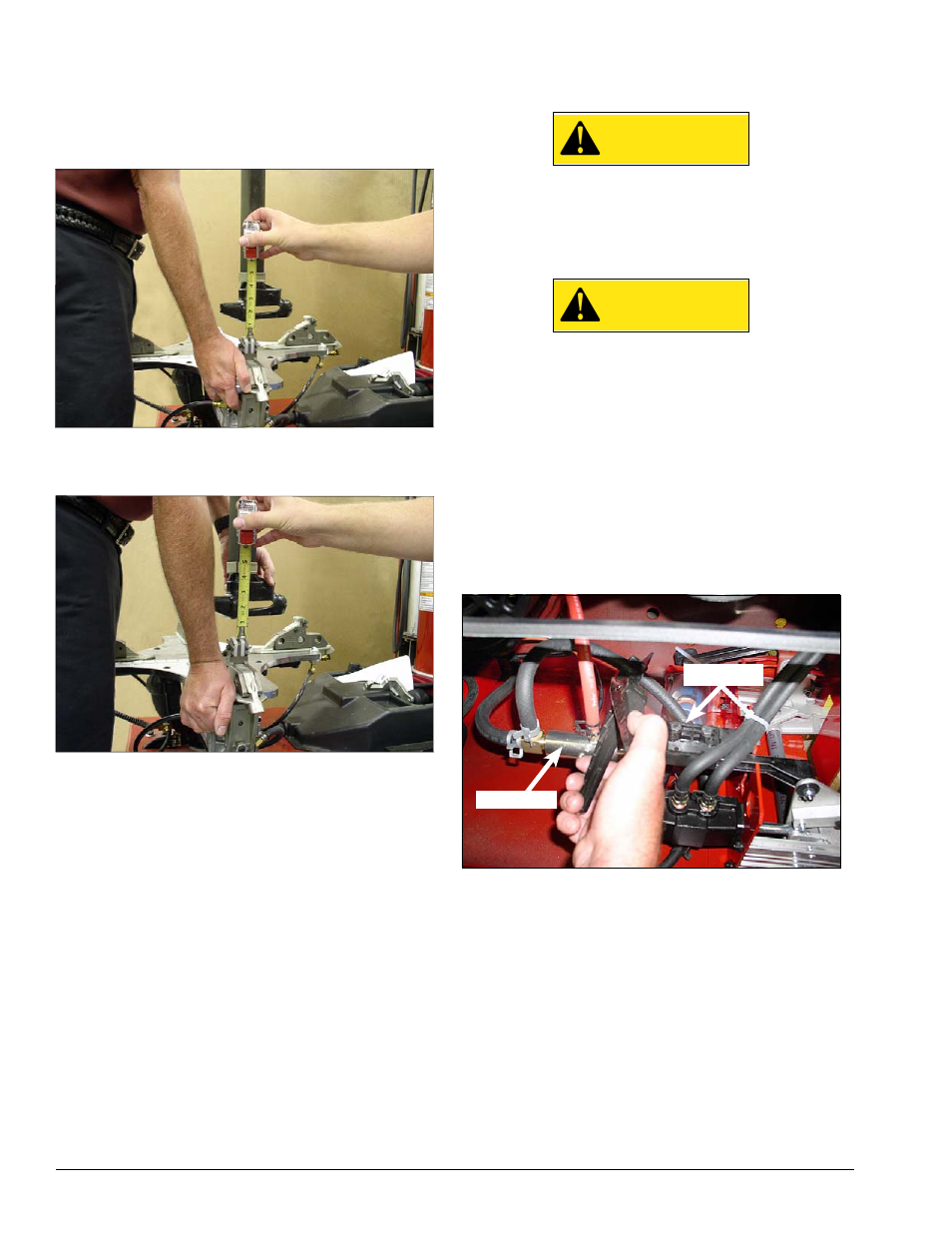

1. Push down on mount/demount tool while pulling
up on table top. Record distance — top of clamp to
bottom of mount/demount tool.
2. Now, pull up on mount/demount tool while push-
ing down on table top. Record distance — top of clamp
to bottom of mount/demount tool.
3. Subtract step 1 distance from step 2 distance. If
distance is greater than 3/8-inch then machine is not
compatible.
Note: If the machine is not compatible, please con-
tact COATS® at 1-800-688-9240 for the Certified Ser-
vice Partner nearest you.
Leverless Bead Lifter
Installation
CAUTION
Always DISCONNECT THE ELECTRICAL
POWER before servicing equipment. This
prevents electrical shock or accidental
movement of the systems operated by the
electrical power.
CAUTION
Always DISCONNECT AIR SUPPLY before
servicing equipment. This prevents acciden-
tal movement of systems operated by com-
pressed air which may result in personal
injury. BLEED THE AIR SYSTEM by actuating
all the valves.
50/70x Series Installation
1. Disconnect the electrical power and air supply
from the machine; empty all residual air.
2. Remove side panel from chassis.
3. Locate and cut rubber hose that is between the
pedal valve and oil injector.
Oil Injector
Pedal Valve
