Leverless bead lifter adjustment procedure – COATS Kit 85607471 Leverless Bead Lifter User Manual
Page 5
Important: Always read and follow the operating instructions.
• 5

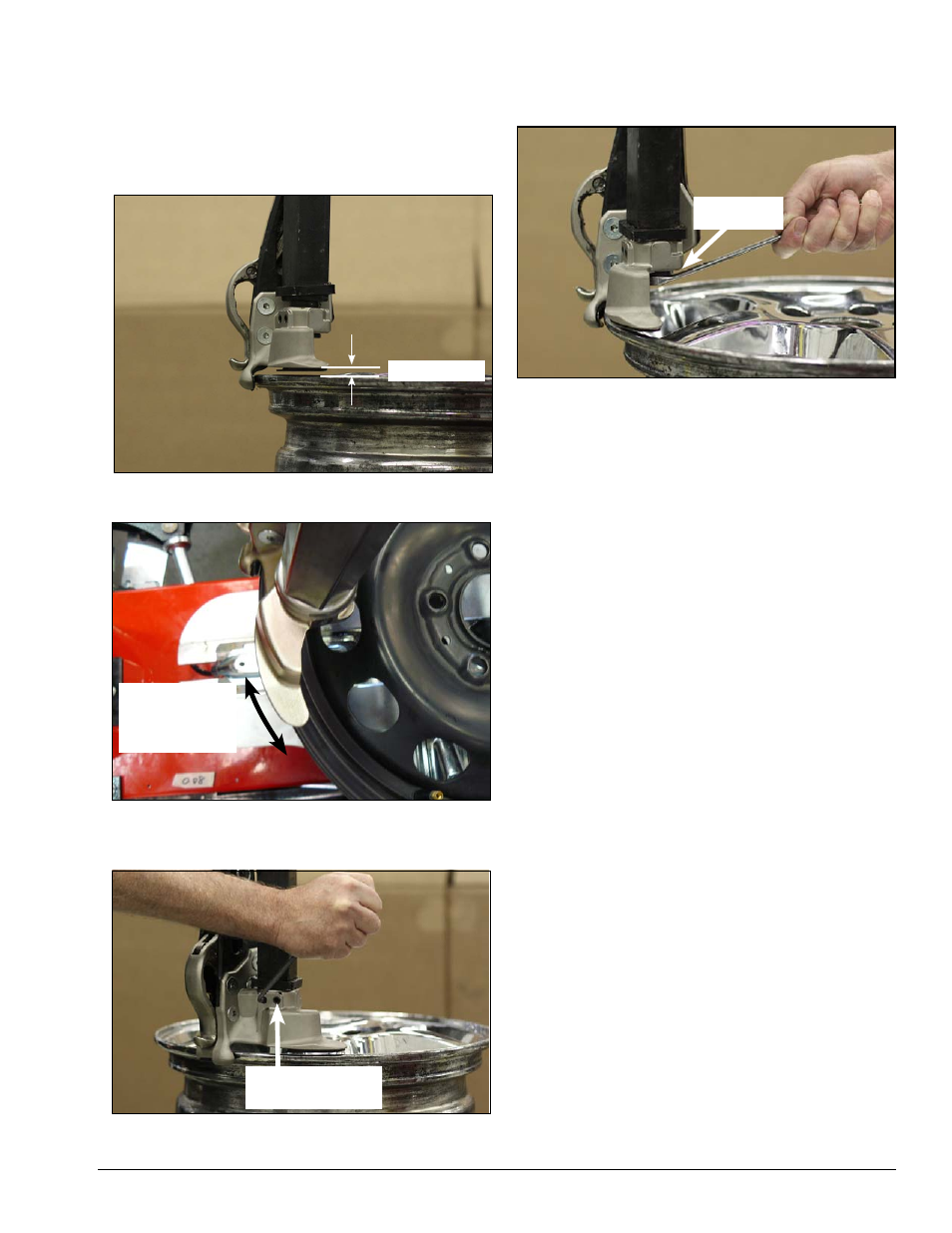

Leverless Bead Lifter
Adjustment Procedure
1.
Use a 17-inch diameter wheel for adjustments.
This covers the normal range of 14 to 21-inch wheels.
2.
Set mount/demount tool to 1/8 to 3/16-inch above
wheel.
3.
Align mount/demount tool to match curvature of
wheel.
4.
Snug (2) set screws in mount/demount tool mak-
ing sure mount/demount tool to wheel relationship
doesn’t change.
5.
Loosen (2) set screws on adapter 1/4 turn.
6.
Tighten screw holding leverless bead lifter assem-
bly to vertical shaft; torque to 20-26 ft-lbs.
7.
Tighten set screws (2) on mount/demount tool.
1/8" to 3/16"
(2) Mount/Demount
Head Set Screws
Torque To
20-26 ft-lbs.
Align Mount/
Demount Tool
With Wheel
Curature
