6540 Series Operations Manual Rev_I.docx 4/7/2014 49

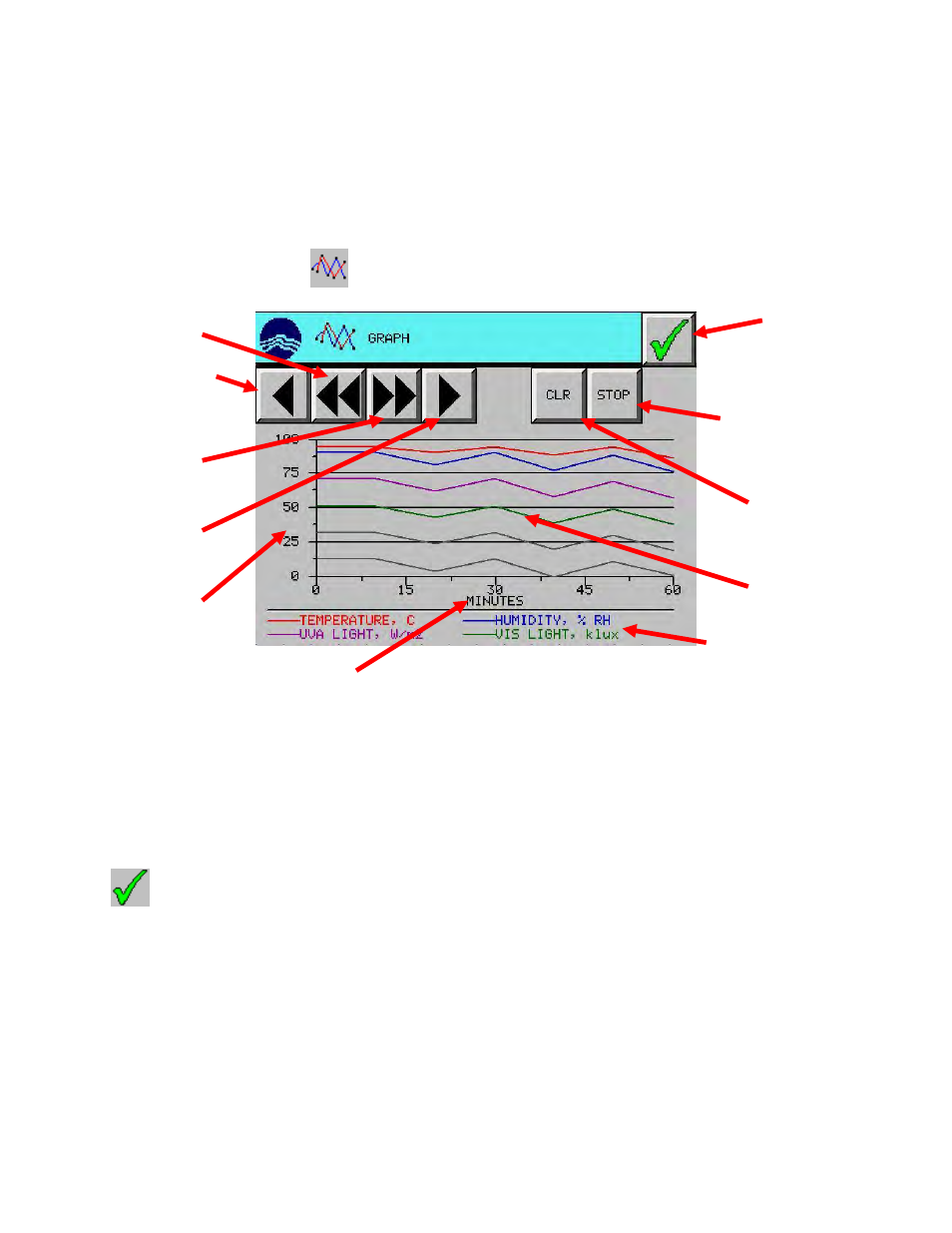

Graph
The touch screen control panel has a graph built into it. The graph records actual chamber conditions for
UVA intensity, VIS intensity, temperature and humidity (optional). Data is plotted at 1 minute intervals for
up to 7 days. One hour (60 minutes) can be viewed on the screen at one time. The graph automatically starts
collecting data upon start-up and clears itself each time the unit is turned off. Graph data is for on-screen
viewing purposes only and can’t be exported or downloaded to other electronic devices.
From the Setup Menu, press the (GRAPH) button.
 The START/STOP button starts and stops the chart recording. (It is collecting data upon startup)
 The CLR button clears the graph data and starts plotting a new graph.
 The scroll left button scrolls the graph back (left) by 30 minutes.
 The scroll right button scrolls the graph forward (right) by 30 minutes.
 The scroll to beginning button scrolls the graph to the graph beginning (0 minutes).
 The scroll to end button scrolls the graph to the end (current time frame).
Press (EXIT) button to return to the setup menu screen.
Scroll left button
Chart START /
STOP button
Exit button
Y-axis scale
Chart clear ‘CLR’
button
Legend with units
Scroll to end
button
Scroll right
button
Scroll to beginning
button
Plot area
X-axis scale
