Water Drain
Plumb the water drain connection to a facility drain. The drain should handle 1 liter per day.
6540-1, 6540-2, 6545-1, 6545-2 Connect to 1/4FPT fittings on back of unit with 1/4MPT fitting.
6540-3, 6545-3 Connect to 1/4BSPP male (British Standard Pipe Parallel, also known
as ISO parallel) on back of unit with a 1/4BSPP female fitting.
Note: Under certain ambient (room) temperature and humidity conditions, the cooling system will condense
moisture from the air. A drain is required, even if the chamber does not have humidity control.
Water Supply (optional)
The chamber requires distilled or deionized water with resistivity between 0.05 & 1 Mega Ohmn-cm and pH
above 6.5. Using water outside this range will void the warranty. Typical water usage is 0.4 gallons/day
(1.5 liters/day) with a maximum of 3.2 gallons/day (12 liters/day).
6545-1, 6545-2 Connect to 1/4FPT fittings on back of unit with 1/4MPT fitting.
6545-3 Connect to 1/4BSPP male (British Standard Pipe Parallel, also known
as ISO parallel) on back of unit with a 1/4BSPP female fitting.

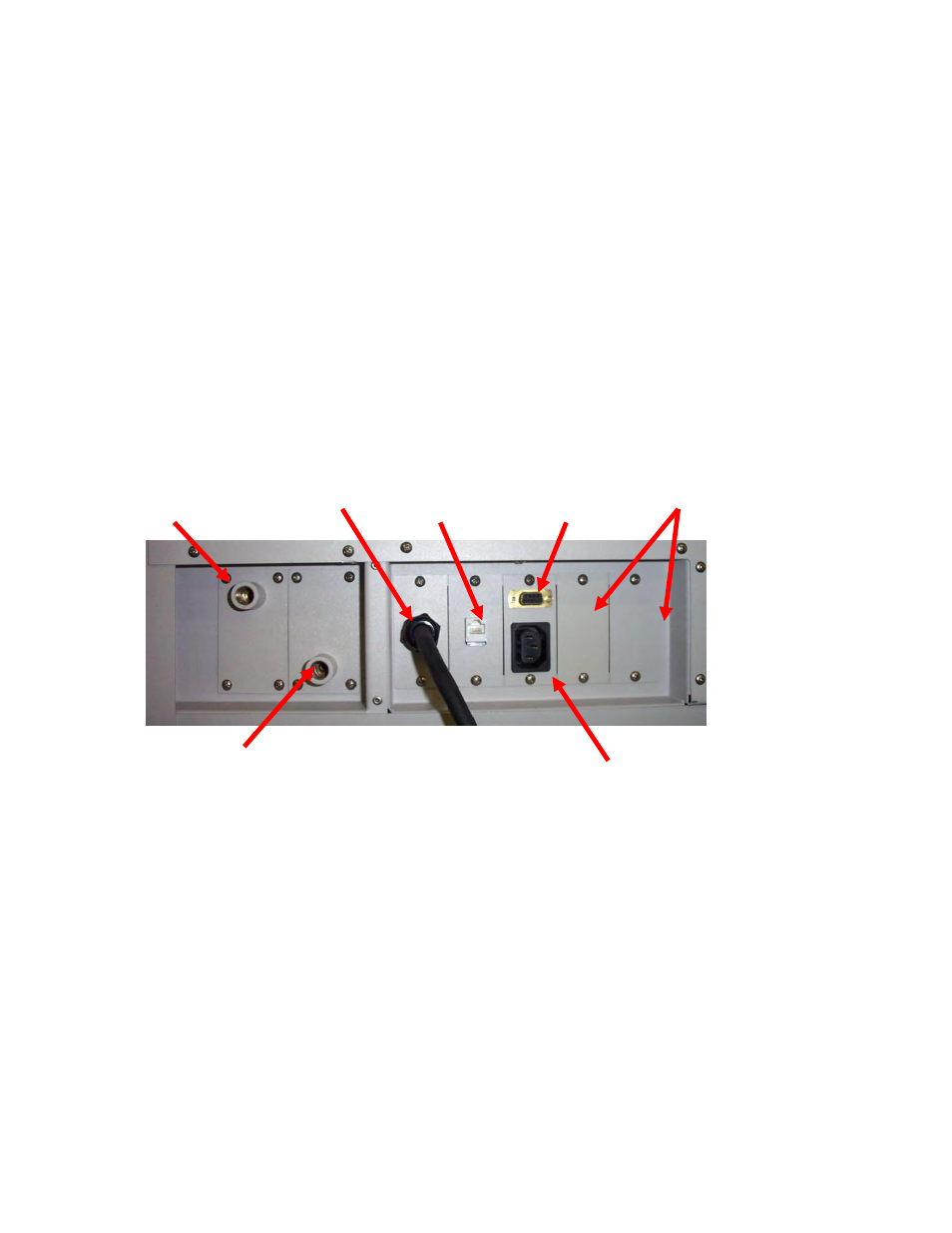

Water supply
(optional)
Water drain
(all units)
Ethernet
(service)
Chart recorder
(signal)
Chart recorder
(power)
Power cord
(6545-1 shown)
Options
