Rev. A3, 10/08 DCR-1003 and DCR-1004
27
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • [email protected]
Decimal Point Default = .0000 below the decimal point.
32 Span Units = mode 1 Sets the empty distance from
Default = 12.00 ft. the transducer

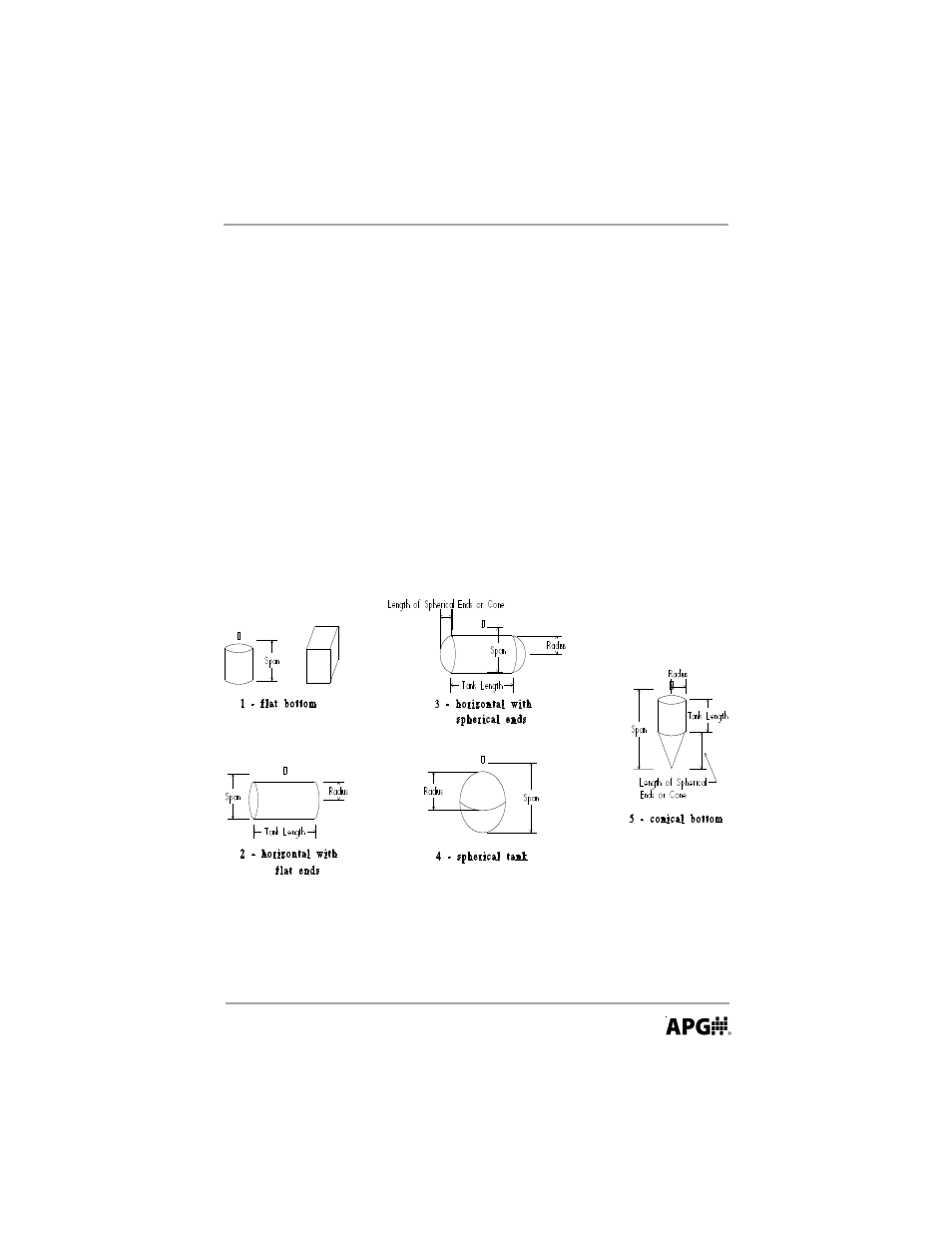

33 Tank Length Units = mode 1 Sets the length of a horizontal
Default = 10.00 ft. tank or the length to a conical
bottom
34 Length of Units = mode 1 Sets the length of the bottom
Spherical Ends Default = 2.00 ft. cone or spherical or Cone ends
(tank type 3 or 5)
35 Tank Radius Units = mode 1 Sets the radius of the cylinder
Default = 5.00 ft. (not used in tank type 0 or 1)
