STEP 6 ﹒When user is going to access to Internet through browser, the authentication UI will appear in
Browser. After entering the correct user name and password, click OK to access to Internet.
(Figure10-10)

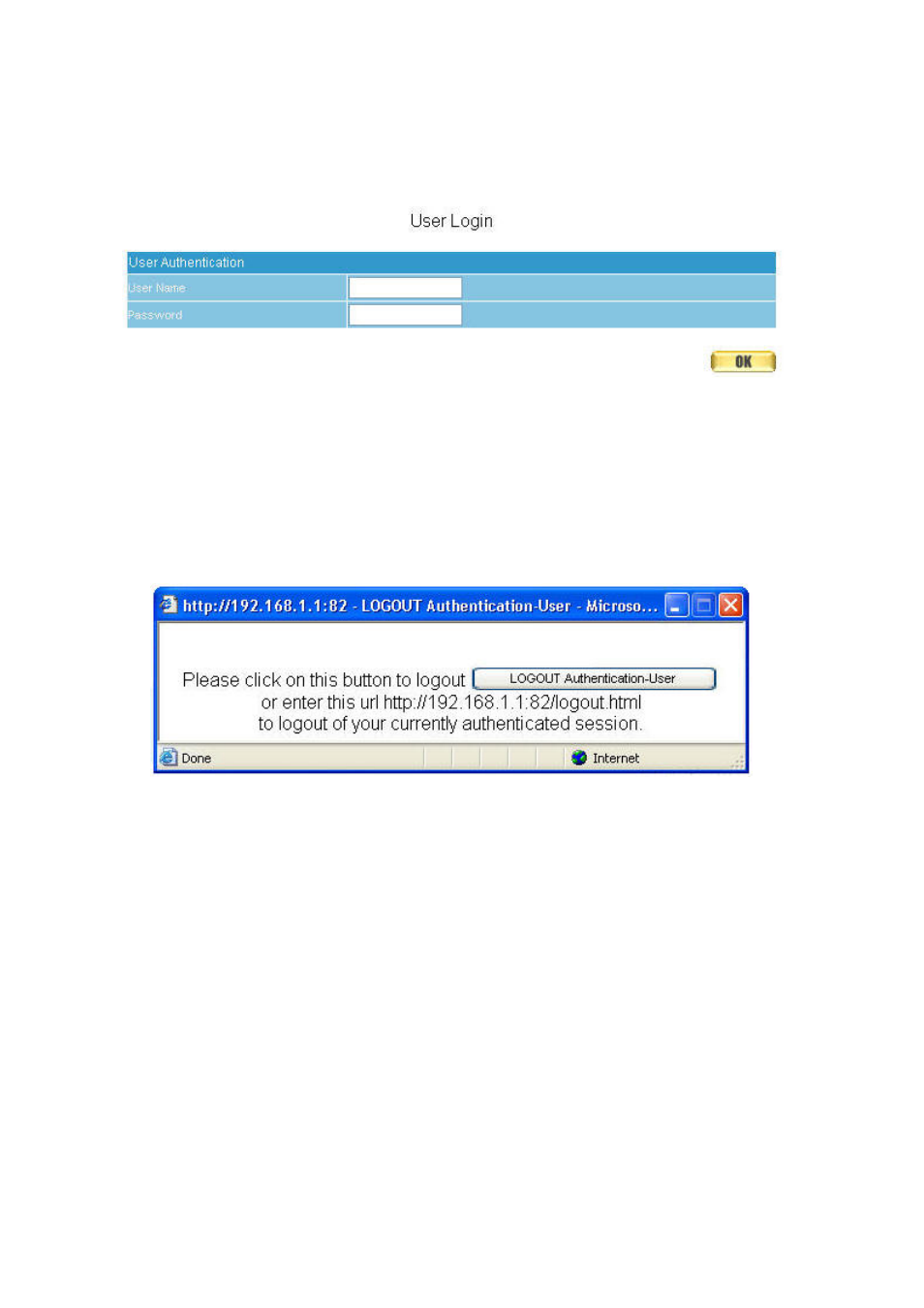

Figure10-10 n WebUI Access to Internet through Authenticatio
STEP 7
﹒If the user does not need to access to Internet anymore and is going to logout, he/she can click
LOGOUT Auth-User to logout the system. Or enter the Logout Authentication WebUI (http://
LAN Interface: Authentication port number/ logout.html) to logout (Figure10-11)
Figure10-11 Logout Auth-User WebUI
