To setup RS-3000 as Gateway (Mail Server is in DMZ, Transparent Mode)
Preparation
WAN Port IP: 61.11.11.11
Mail Server IP: 61.11.11.12
Map the DNS Domain Name that apply from ISP (broadband.com.tw) to DNS Server IP (setup MX
record is Mail Server IP)
When external sender to send mail to the recipient account in broadband.com.tw, add the following Mail
Relay setting:
STEP 1 ﹒Add the following setting in Mail Relay function of Configure:
 Select Domain Name of Internal Mail Server

Domain Name of Mail Server: Enter the Domain Name
 IP Address of Mail Server: Enter the IP address that Mail Server’s domain name
mapped to
 Mail Relay setting is complete. The mails from external and its destination mail
server have to be in the domain name setting, that can be received by RS-3000 and
be sent to the appointed mail server after filtering. (Figure16-3)

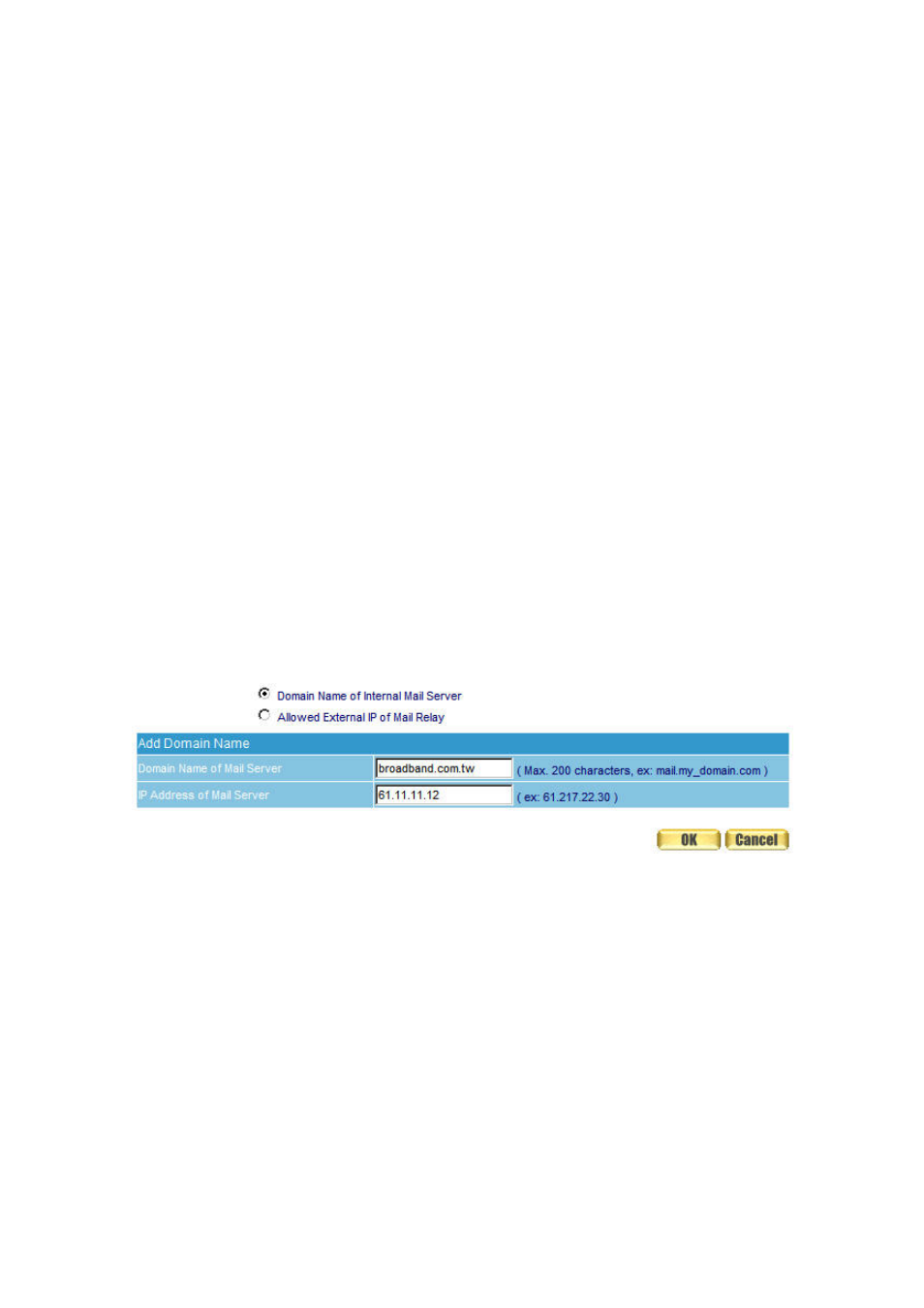

Figure16-3 Mail Relay Setting WebUI
149
