AirLive RS-3000 User Manual

Page 177

Place RS-3000 between the original Gateway and Mail Server to set up the Rule to filter

the mail. (Mail Server is in DMZ, Transparent Mode)

The LAN Subnet of enterprise’s original Gateway: 172.16.1.0/16

The WAN IP of RS-3000: 172.16.1.12

STEP 1

﹒Setup a Mail Server in DMZ and its network card IP is 172.16.1.13. The DNS setting is

external DNS Server. Its host name is broadband.com.tw

STEP 2

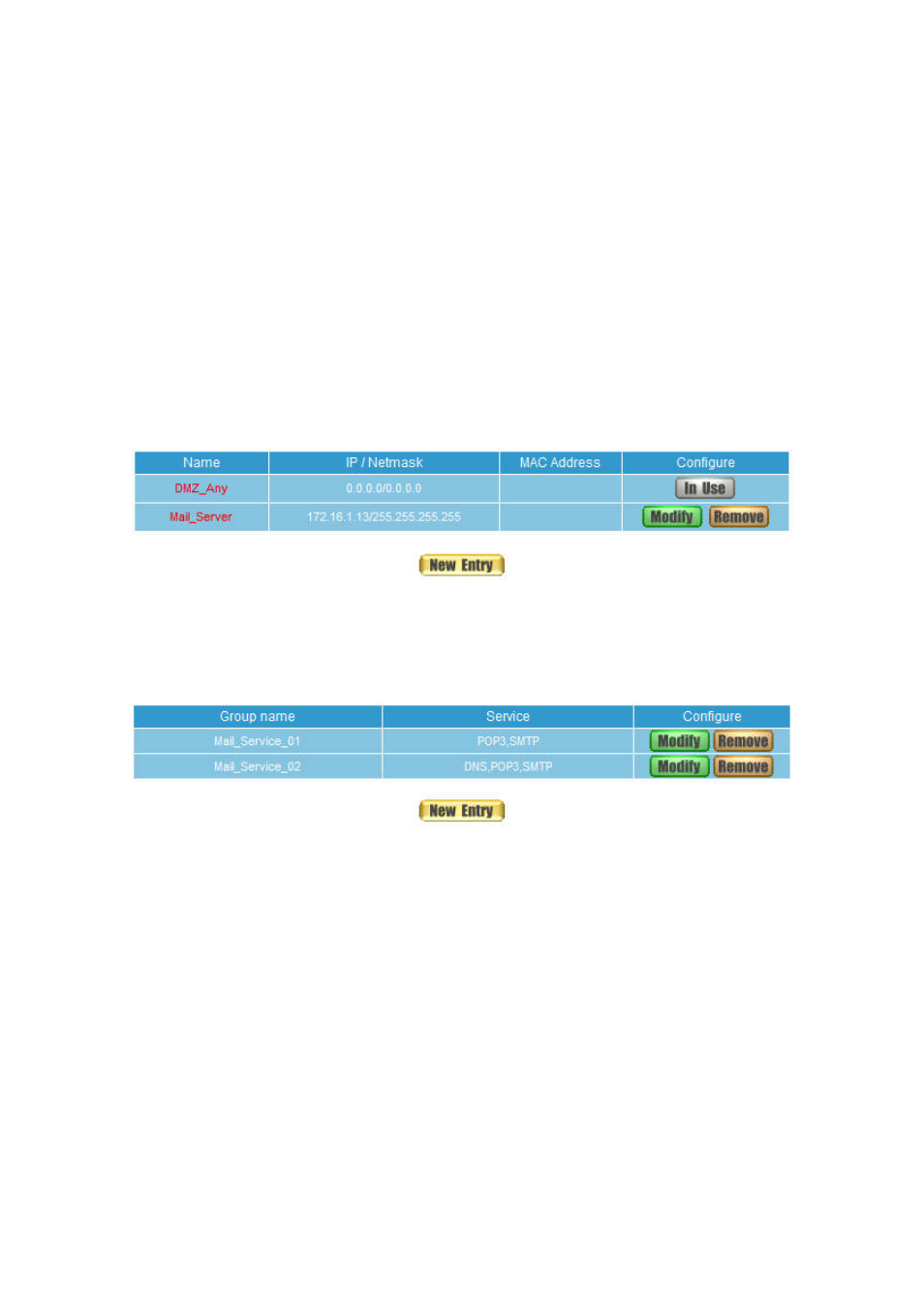

﹒Enter the following setting in DMZ Address: (Figure17-22)

Figure17-22 Mapped IP Setting of Mail Server in Address Book

STEP 3

﹒Enter the following setting in Service Group. (Figure17-23)

Figure17-23 Setting Service Group includes POP3, SMTP or DNS

175
