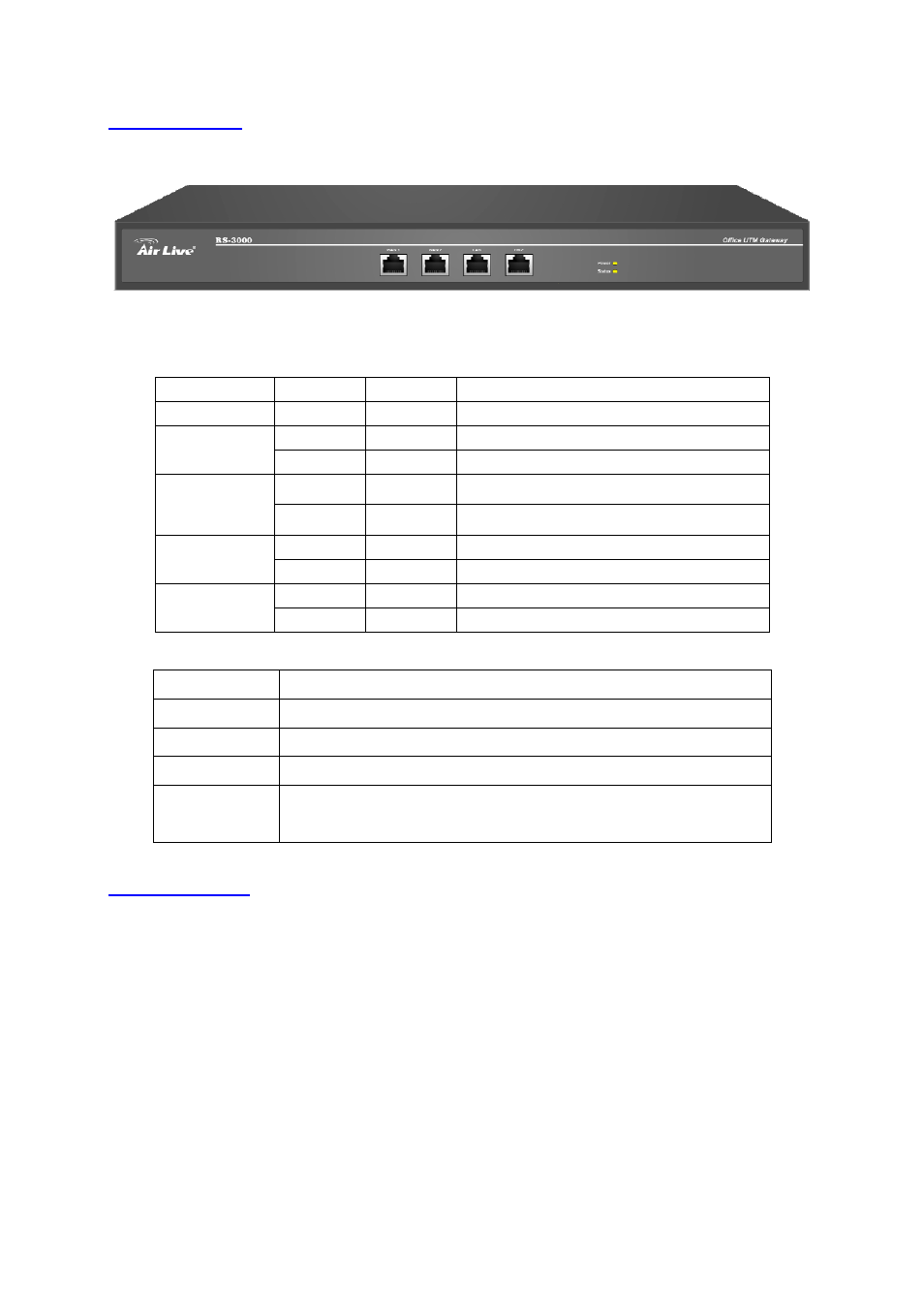

1.2 Front Panel
Figure 1-1 Front Panel
LED Color Status Description
POWER Green On Power on the device
Green On Device is ready to use
Status
Blinking Device is at the booting process
Green Blinking Packets is sending/receiving
WAN 1/2
Orange On Cable speed is 100 Mbps
Green Blinking Packets is sending/receiving
LAN
Orange On Cable speed is 100 Mbps
Green Blinking Packets is sending/receiving
DMZ
Orange On Cable speed is 100 Mbps
Port Description
WAN 1/2 Use this port to connect to a router, DSL modem, or Cable modem
LAN Use this port to connect to the LAN network of the office
DMZ Connection to the Internet (FTP, SNMP, HTTP, DNS)
Console Port
9-pin serial port connector for checking setting and restore to the
factory setting
1.3 Packing List
 RS-3000 Office UTM Gateway
 Installation CD-ROM
 Quick Installation Guide
 CAT-5 UTP Fast Ethernet cable
 CAT-5 UTP Fast Ethernet cross-over cable
 RS-232 cable
 Power code
 Accessories
