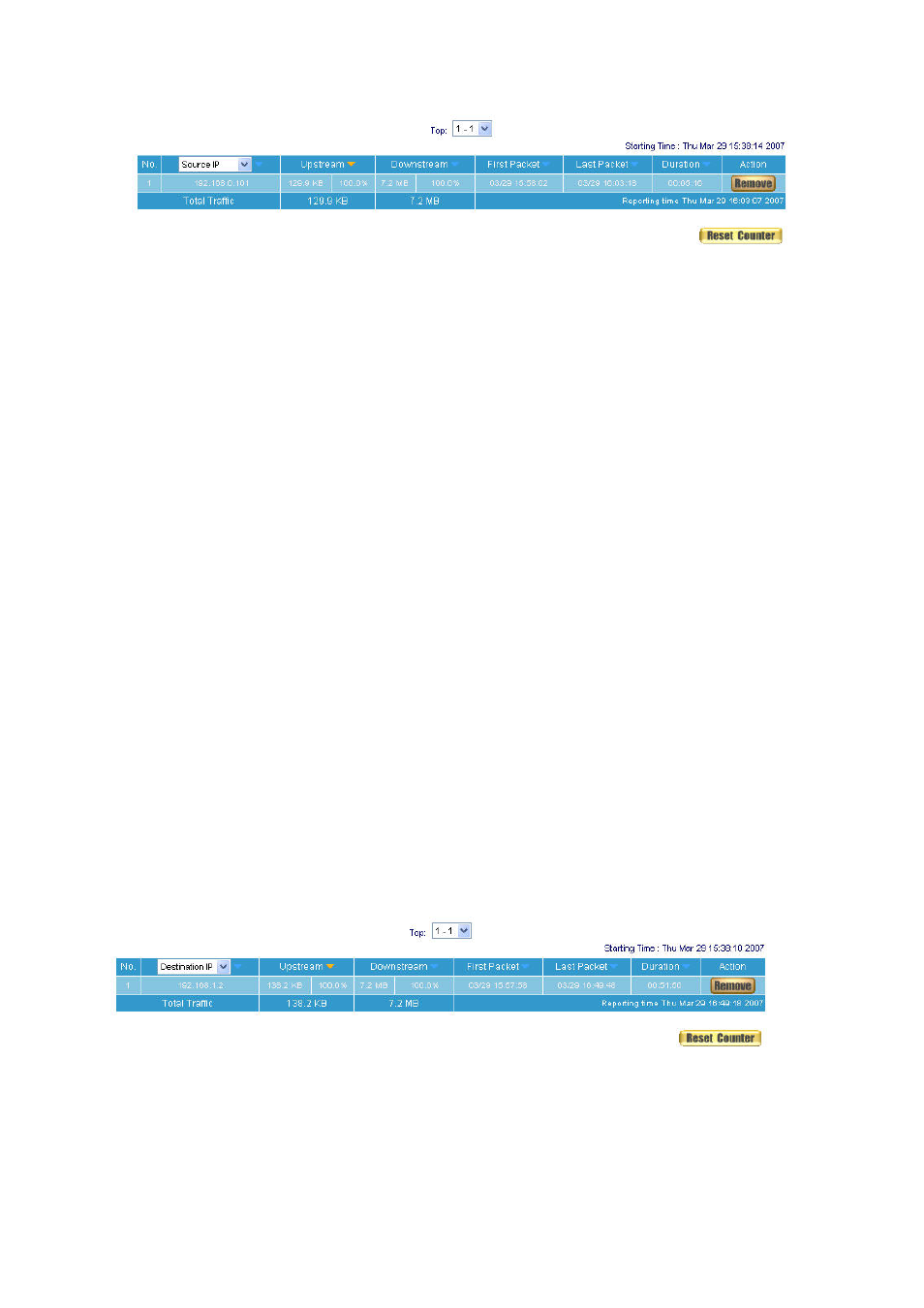

Figure22-7 Inbound Top Users Statistics Report
STEP 3 ﹒Enter Inbound in Accounting Report and select Top Sites to inquire the statistics website
of Send / Receive packets, Downstream / Upstream, First packet / Last packet /
Duration from the WAN user to pass the RS-3000. (Figure22-8)
 TOP：Select the data you want to view. It presents 10 pages in one page.
 Destination IP：To display the report sorted by Destination IP, the IP address used by LAN
service server passing through RS-3000 to WAN users.
 Downstream：The percentage of Downstream and the value of each WAN user who passes
through RS-3000 to LAN service server.
 Upstream：The percentage of Upstream and the value of each LAN service server who passes
through RS-3000 to WAN users.
 First Packet：When the first packet is sent from WAN users to LAN service server, the sent
time will be recorded by the RS-3000.
 Last Packet：When the last packet is sent from LAN service server to WAN users, the sent
time will be recorded by the RS-3000.
 Duration：The period of time starts from the first packet to the last packet to be recorded.
 Total Traffic：The RS-3000 will record the sum of time and show the percentage of each WAN
user’s upstream / downstream to LAN service server.
 Reset Counter：Click the Reset Counter button to refresh the Accounting Report.
Figure
22-8 Outbound Destination IP Statistics Report
