AirLive N450R User Manual
Page 37
AirLive N450R User’s Manual
32
7. PPPoE Service Name
Optional. Input the service name if your ISP requires it.
8. Assigned IP Address
You can input a IP address if you got a fix IP address from ISP.
9. Maximum Transmission Unit (MTU)
Most ISP offers MTU value to users. The default MTU value is 0 (auto).
10. NAT disable
You can disable NAT feature if required.
11. IGMP Proxy
Enable this feature allows multicast stream (e.g. IPTV stream) to pass-through this
device.

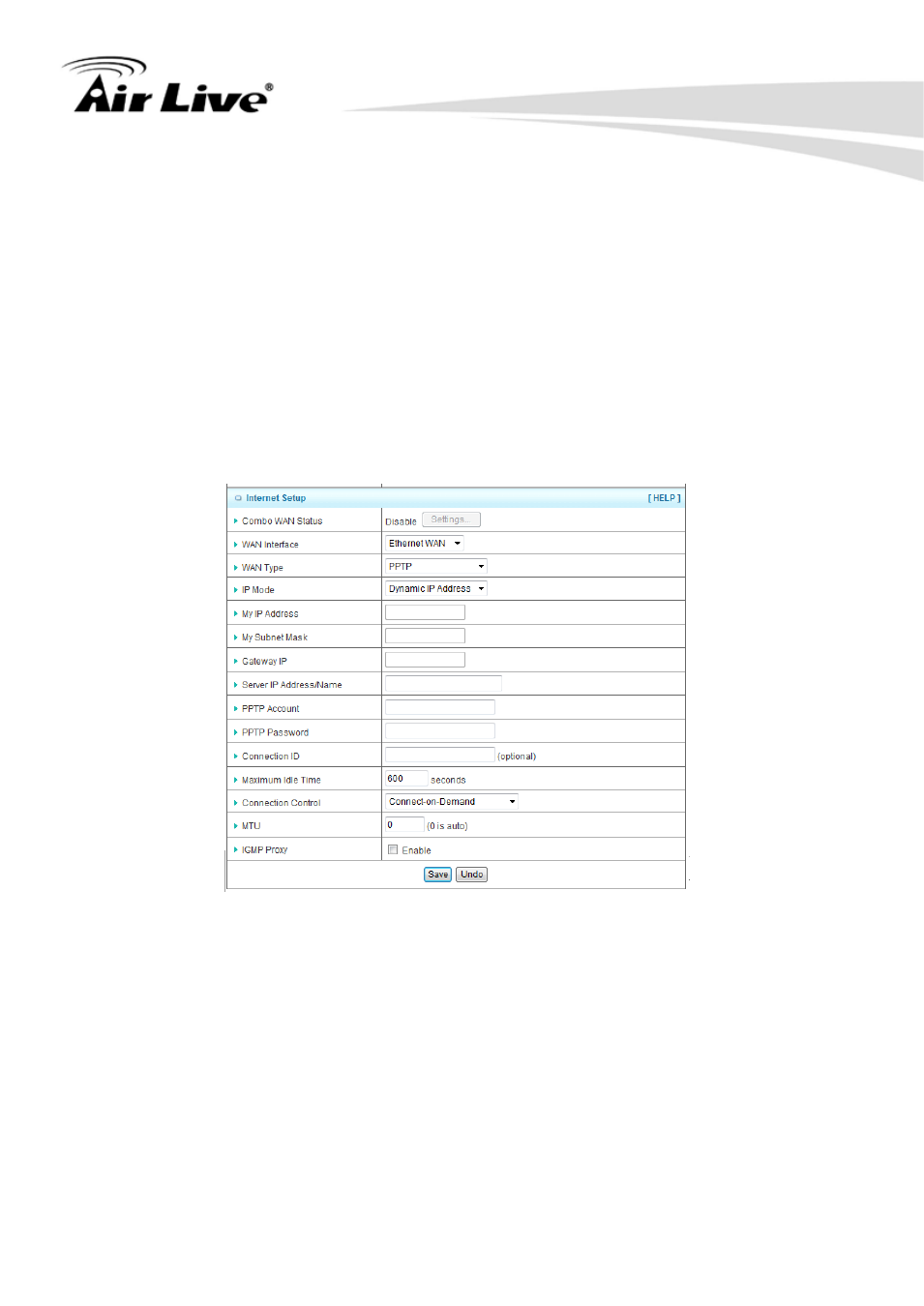

(F) PPTP
1. WAN Type
Choose PPTP.
2. IP Mode
You can select “Static IP Address” or “Dynamic IP Address”.
3. My IP Address*, My Subnet Mask*, and Gateway IP*
The IP address, subnet mask, and IP address of gateway your ISP assigned to you.
4. Server IP Address/Name
The IP address of the PPTP server.
5. PPTP Account and Password
The account and password your ISP assigned to you.
