AiM LCU-One CAN + Analog ver 1.05 - Manual (Page 8)

LCU ONE-CAN+Analog
User manual
Release 1.05
www.aim-sportline.com 7

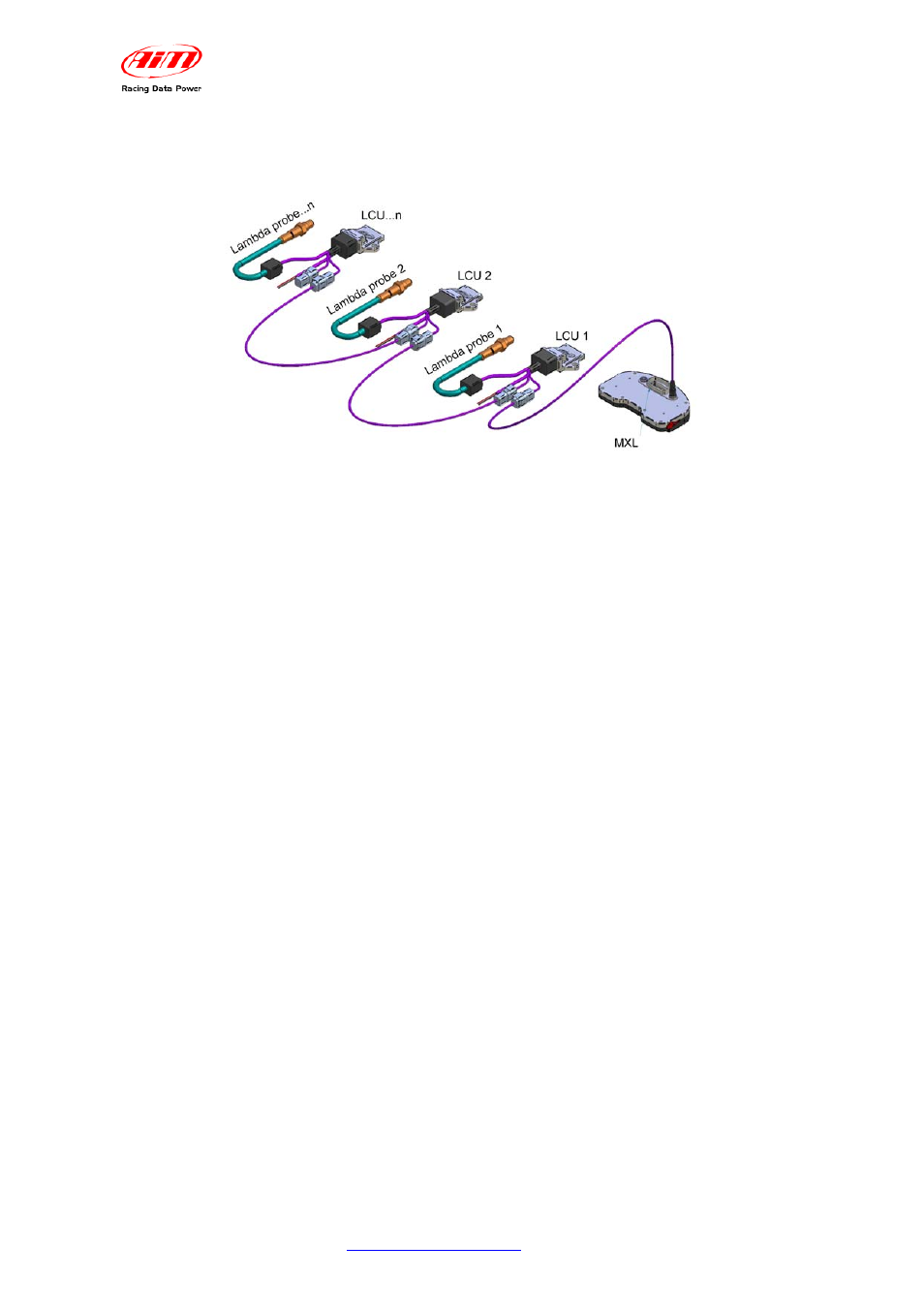

In case of more than one LCU-ONE, the scheme to be followed is the one indicated
above.
It is suggested to insert a 10 A fuse for each controller in series between the external
battery and Lambda controller to protect the system. It is recommended to use the
proper cap indicated in the previous figure (“CAN termination”) to terminate the CAN
line.
Refer to this tutorial appendix to know each item part number.
LCU-ONE, like the logger, needs to be powered by the vehicle master switch.
As far as connections with the loggers are concerned, refer to the related user manuals.
