6.2.1 – Preliminary operation
Lambda Configurator
software, differently from other AIM software, includes a
firmware version of the logger it configures. This is why it is suggested to always check
www.aim-sportline.com to know if the software version installed on the PC is the last
available. If not download the last one, install it and follow this procedure:
• connect
LCU-ONE
to the PC serial port
• read logger firmware version that appears in the proper case on the left of the
central graph
• press “Upgrade firmware” button

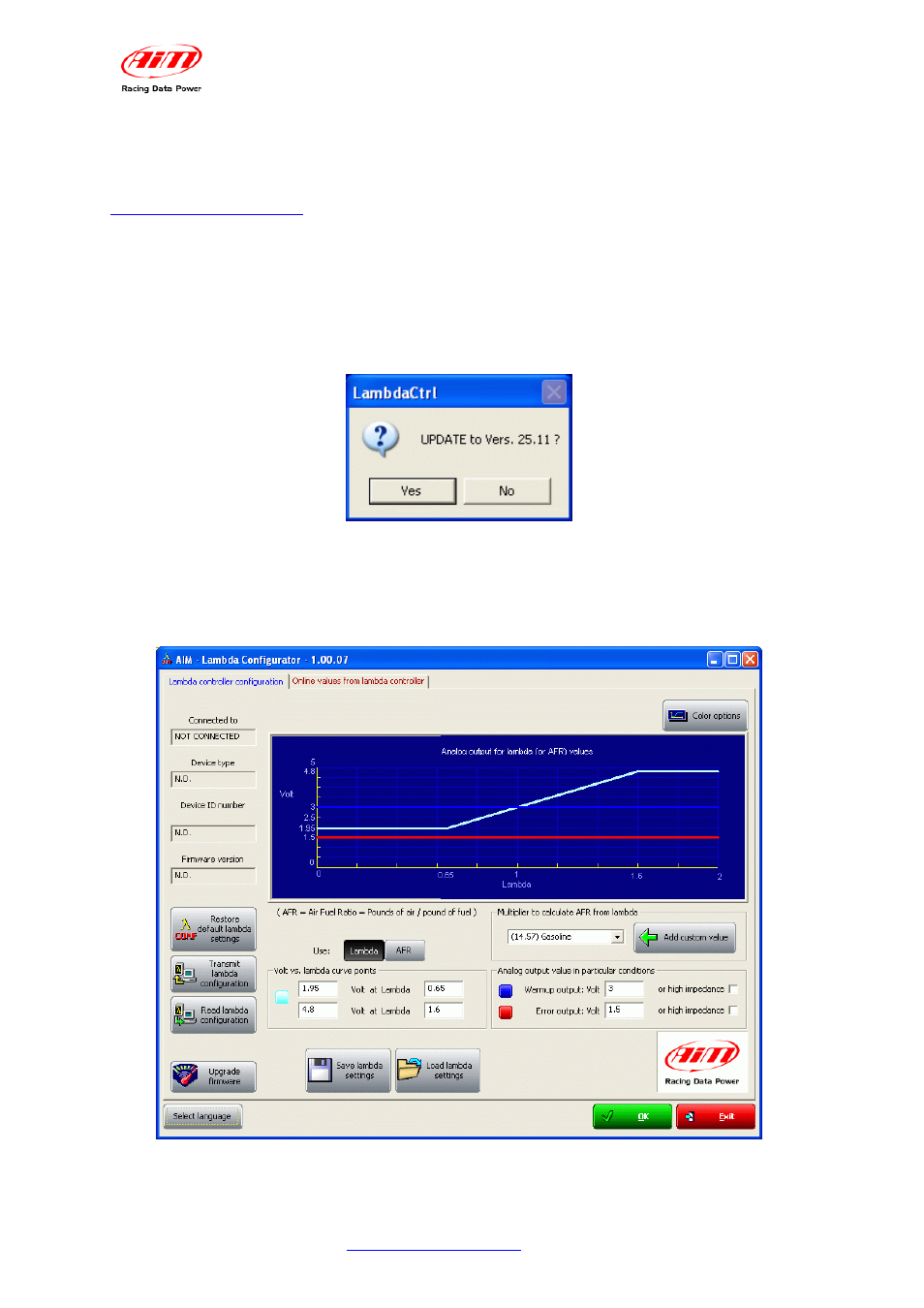

• this panel appears:
If firmware version proposed (in the image above the software proposes version 25.11)
is more recent than the one installed on the controller (if for instance the logger has a
version 25.08) press “Yes” button and upgrade the firmware.
1 9
6.2.2 – Lambda controller Configuration
Under the central graph are configuration panels.
