6.2.4 – Informative panels
Top left of the software main window, a series of panels shows some information
concerning the connected LCU-ONE. These panels layout changes depending on the
fact that the logger is connected or not.

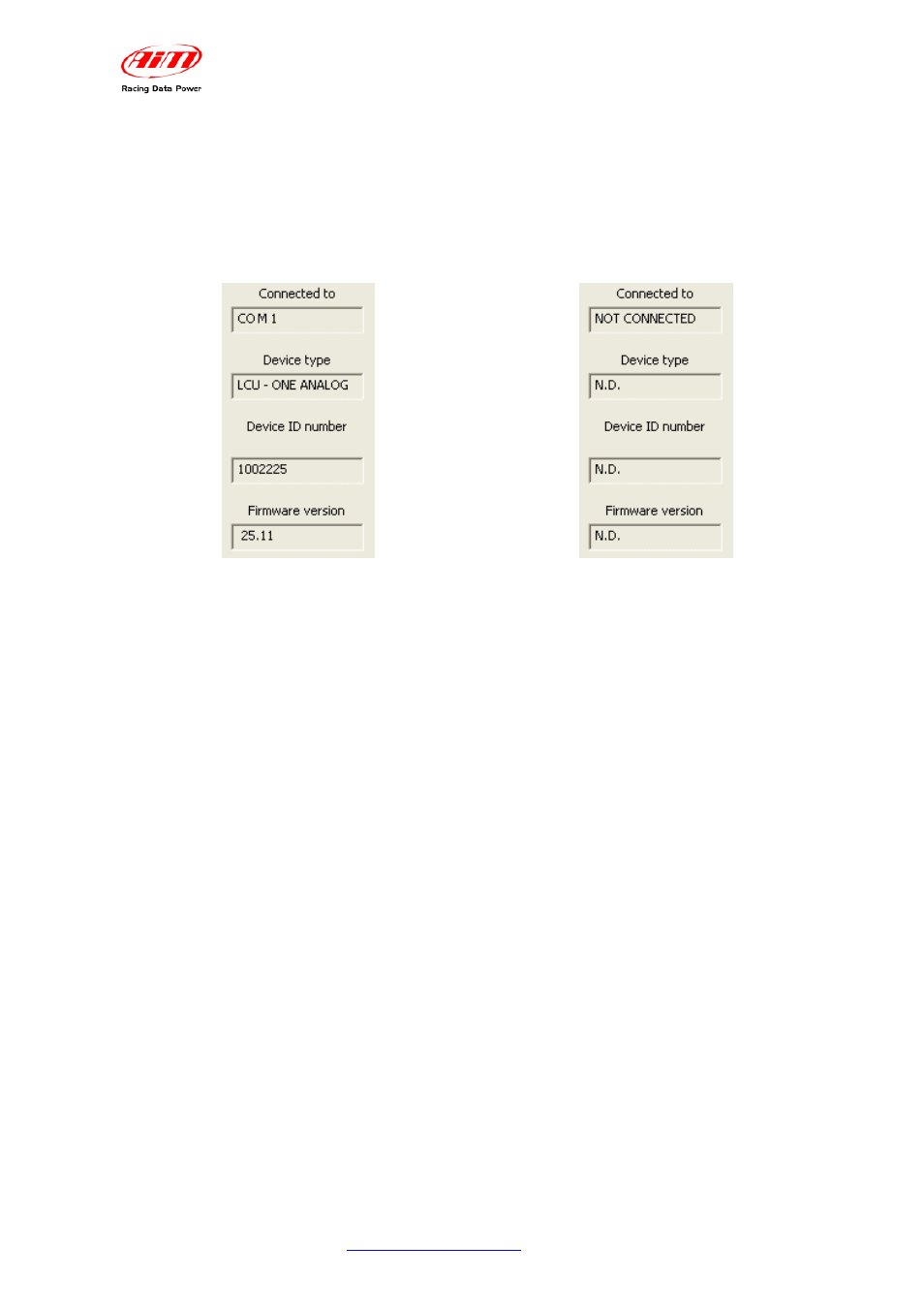

The figure below shows panels layout with LCU-ONE connected on the left and with the
controller not connected on the right.
• Connected to: PC serial port
• Device type: LCU-ONE Analog (the
controller has been recognised)
• Device ID number: controller unique
ID number
• Firmware Version: controller
firmware version.
• If LCU-ONE is not
connected; the panel shows
the message “not
connected” and all data
concerning the controller
are set on N.D. (Not
available)
