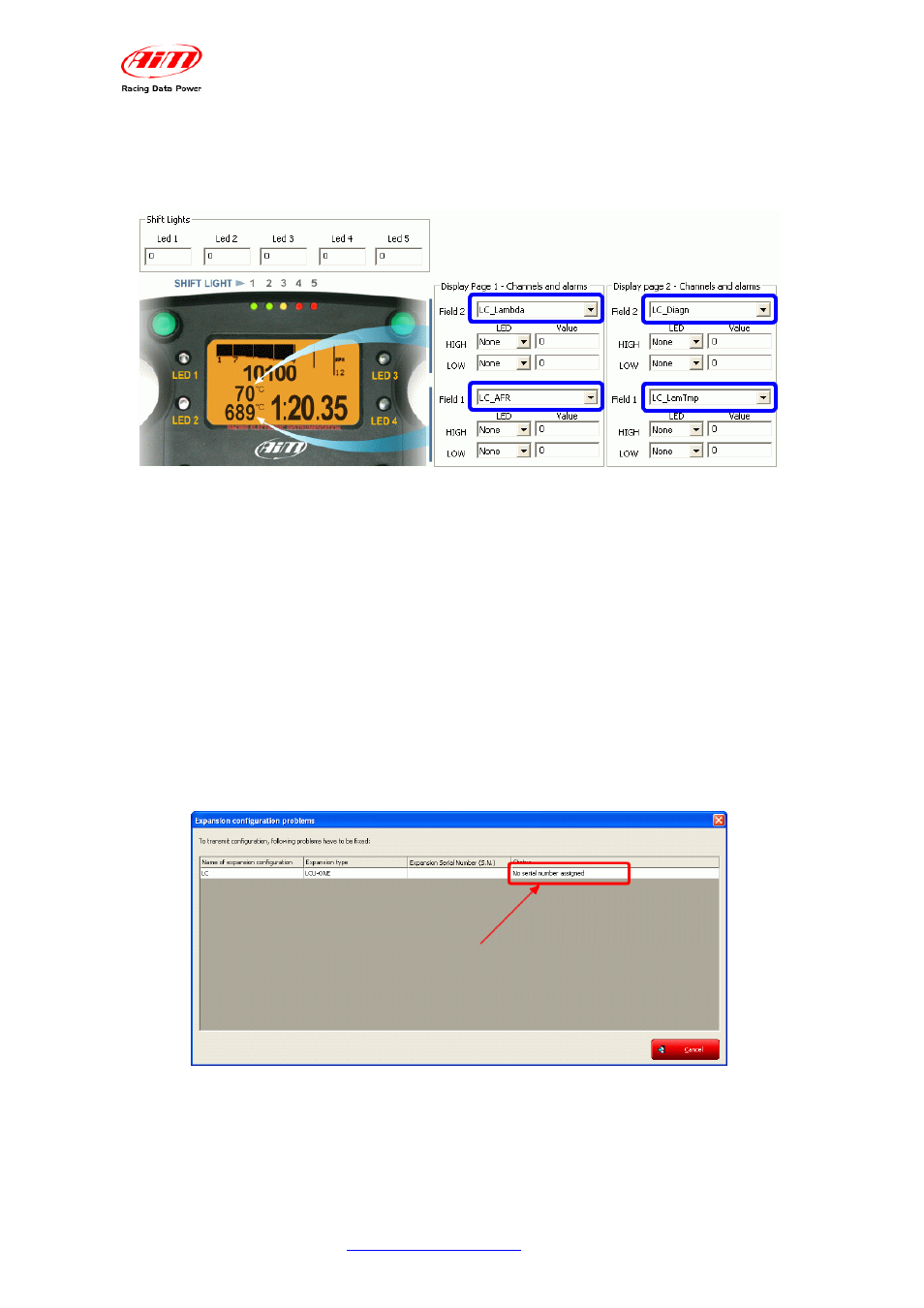

In case of an EVO3 data visualisation is only possible if the logger is connected to a
Formula Steering Wheel
or to a MyChron3 Dash and they are set on that display
configuration as shown below.
Note:
LCC_diagnosis channel
shows the probe working status and can show up
to four messages
:
• 0: status OK
• 1: probe not connected
• 2: + 12 V short circuit
• 3: GND short circuit
The configuration is now ready to be transmitted to the logger.
Warning: this operation needs to be repeated for all the connected LCU-ONE.
When all parameters have been set and the fields assigned it is necessary to transmit
the configuration to the logger pressing “Transmit” button on Race Studio 2 top
keyboard.
If the configuration has been correctly transmitted the system shows no messages.
Otherwise, the system shows the window below.
It warns the user that no serial number has been assigned to the connected expansion.
It is thereby necessary to close this window pressing “Cancel” button and get the
expansion serial number pressing “Get serial number form a connected expansion”
button as explained before.
