6.2 – LCU-ONE Analog custom configuration
In case calibration curve default points have been changed it is necessary to configure
LCU-ONE
analog part using Lambda Configurator, the software properly designed
and developed by AIM to manage this device and freely downloadable from AIM
website
www.aim-sportline.com .
Warning: to correctly configure the controller, ensure that Lambda
Configurator is 1.00.07 or later. Moreover it is suggested to perform this
operation with the controller switched on and connected.

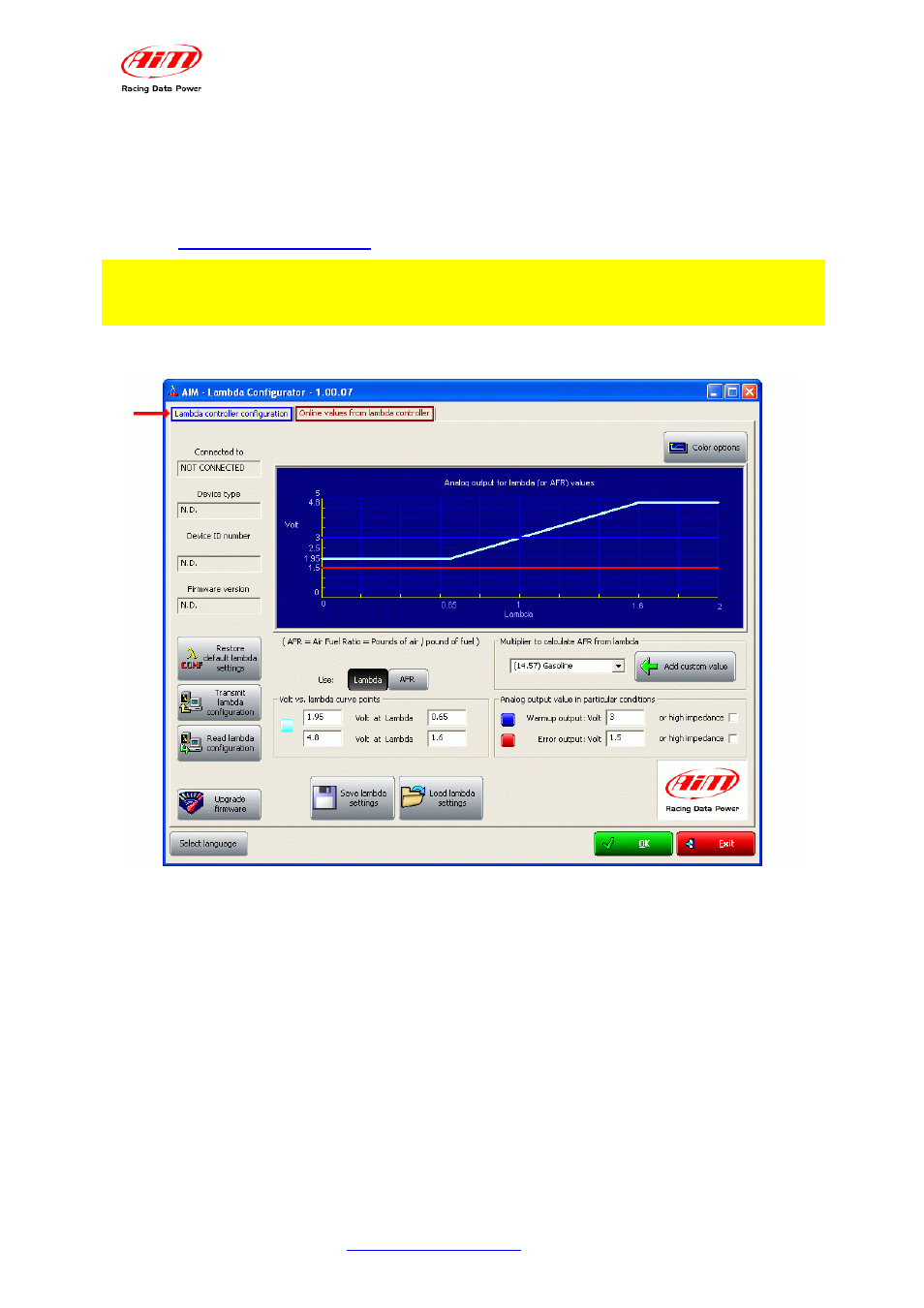

To configure LCU-ONE Analog run the software. The window below appears.
This is the software main window, made of two layers:
•
Lambda controller configuration
: shows analog output for lambda (or AFR)
values graph (central) and is used to configure LCU-ONE Analog, read and
transmit the configuration, restore default lambda settings and upgrade LCU-
ONE
firmware (see paragraph concerning preliminary operations).
•
Online values from Lambda controller
: shows the status of the connection
between LCU-ONE and the PC.
