6.2.5 – The analog output graph

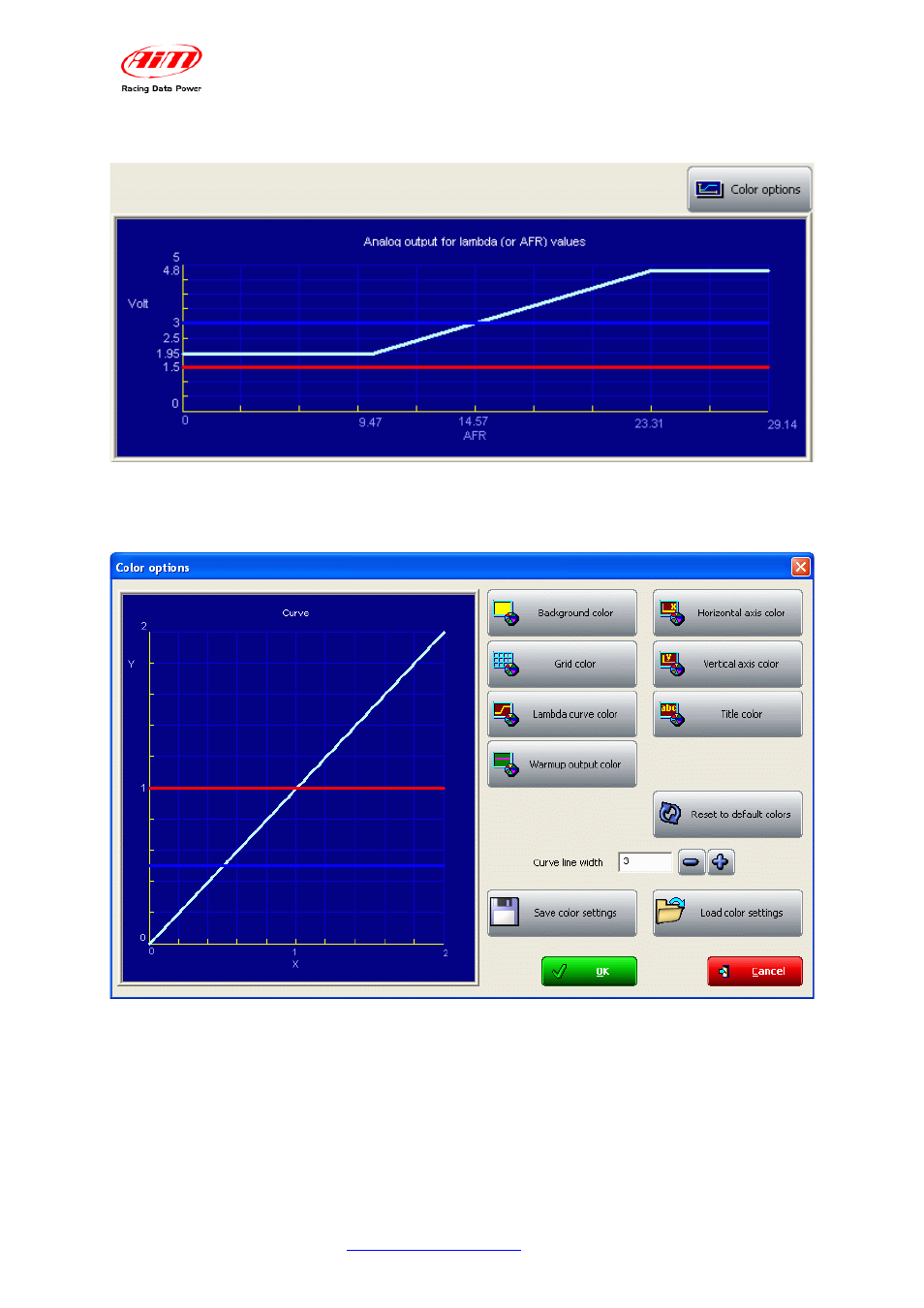

The “analog output graph” shows output tension values of the controller that refer to
measured Lambda (or AFR) values. Graph colours can be changed. Pressing “Colour
options
” button top on the right and this window appears:
Pressing each button a colour choice panel appears showing the available colours for
that graph characteristic. Selecting the desired colour and confirming the choice the
graph layout changes.
