Afterwards operate on the other parameters.

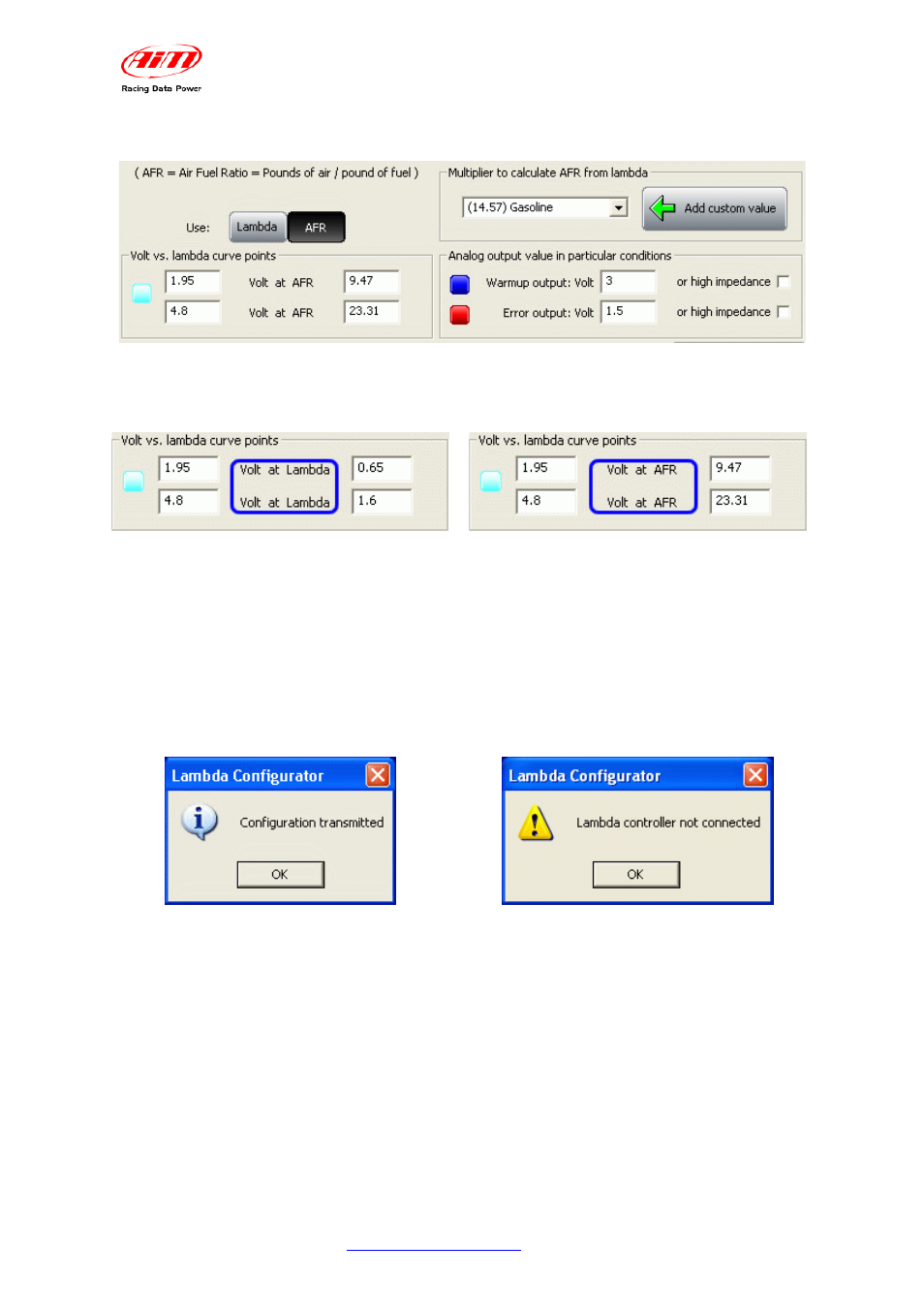

“Use: Lambda/AFR” these buttons allow the user to decide if showing Lambda values or
AFR (Stoichiometric values). This choice reflects on the layout of the panel, as shown
below:
The coloured button beside the cases indicates the colour this value is drawn in the
central graph (in the example the value is shown in light blue).
When the values to show have been decided it is sufficient to fill in the cases with the
desired values or leave default ones.
When all values have been inserted it is necessary to transmit the configuration to LCU-
ONE
pressing “Transmit Lambda configuration” button in the left lateral keyboard.
The system shows a confirm message or an error message in case PC connection is
not OK (right figure).
