Page 55

SECTION 3 - CHASSIS & TURNTABLE
3121287
– JLG Lift –
3-17
MAIN DISASSEMBLY
SAFETY GLASSES MUST BE WORN DURING THESE NEXT STEPS.
1.
Remove the sun gear (8) with retaining ring (44) inside.
2.
With the unit resting on the output shaft (pinion) (1A),
remove the bolts (12) from the brake housing (6).
3.
Remove the brake housing (6) from the main assembly.
4.
Remove the o-ring (5A) from between the brake hous-
ing (6) and ring gear (4). Discard the o-ring.
5.
Remove the thrust washer (11) from between the brake
housing (6) and carrier sub-assembly.
6.
Remove the ring gear (4) from the housing (1G).
7.
Remove the o-ring (5) from between the ring gear (4)
and housing (1G).
8.
Remove the carrier sub-assembly.
9.
Remove the thrust washer (11) from between the carrier
sub-assembly and internal gear (2).
10.
Remove the internal gear (2).

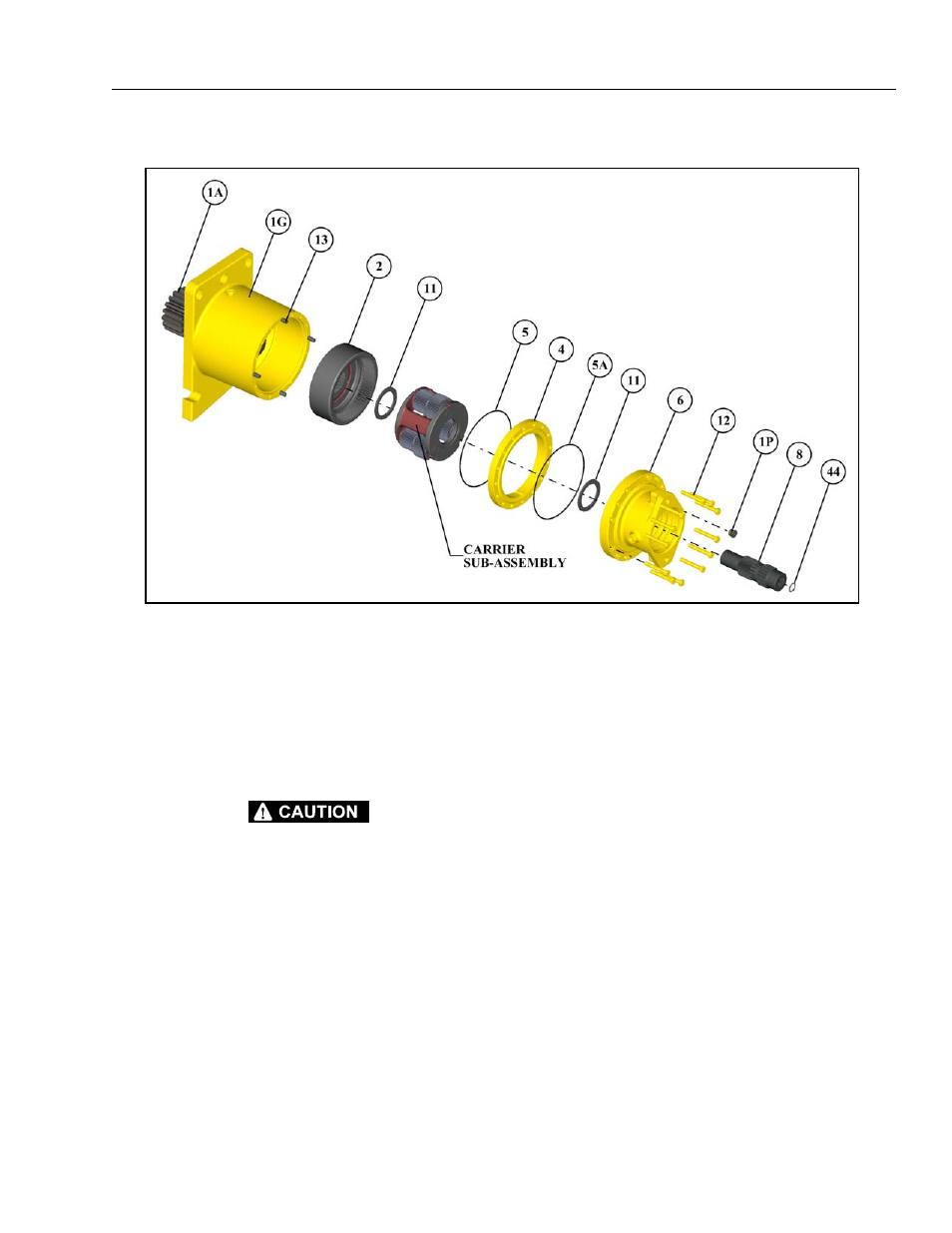

1A Output Shaft
1G Housing
1P Pipe Plug
2 Internal Gear
4 Ring Gear
5 O-ring
5A O-ring
6 Brake Housing
8 Sun Gear
11 Thrust Washer
12 Bolts
13 Dowel Pin
44 Internal Retaining Ring
Figure 3-11. Main Disassembly
