SECTION 5 - HYDRAULICS
3121287 – JLG Lift – 5-43
Control Solenoids
REMOVAL
1. Disconnect electrical connection and remove the three
cap screws (D050) using a 4 mm internal hex wrench.
2. Remove the solenoid (D025) and O-ring (D025A). Dis-
card the O-ring.
3. If necessary, remove the coil using a 12 point 26 mm
socket.
INSPECTION
1. Inspect the machined surface on the control. If you find
any nicks or scratches, replace the component.
REASSEMBLY
1. Lubricate new O-ring (D025A) using petroleum jelly and
install.
2. Install solenoid with three cap screws (D050) using a 4
mm internal hex wrench. Torque screws to 5 N•m [4
lbf•ft].
3. Install coil using a 12 point 26 mm socket. Torque coil
nut to 5 N•m [3.7 lbf•ft].
4. Reconnect electrical connections and test the pump for
proper operation.

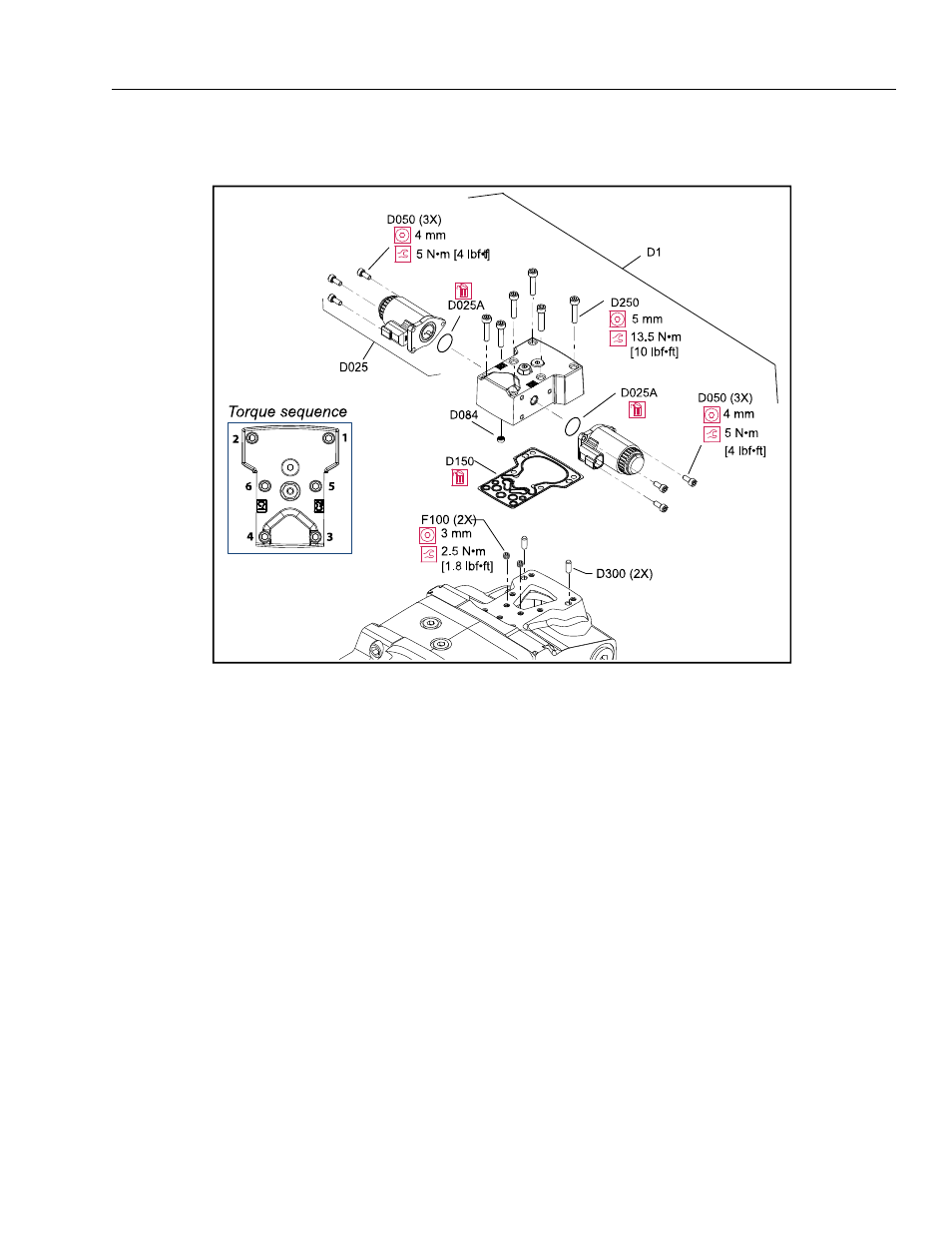

Figure 5-41. Control Module Removal/Installation
