SECTION 5 - HYDRAULICS

3121287

– JLG Lift –

5-21

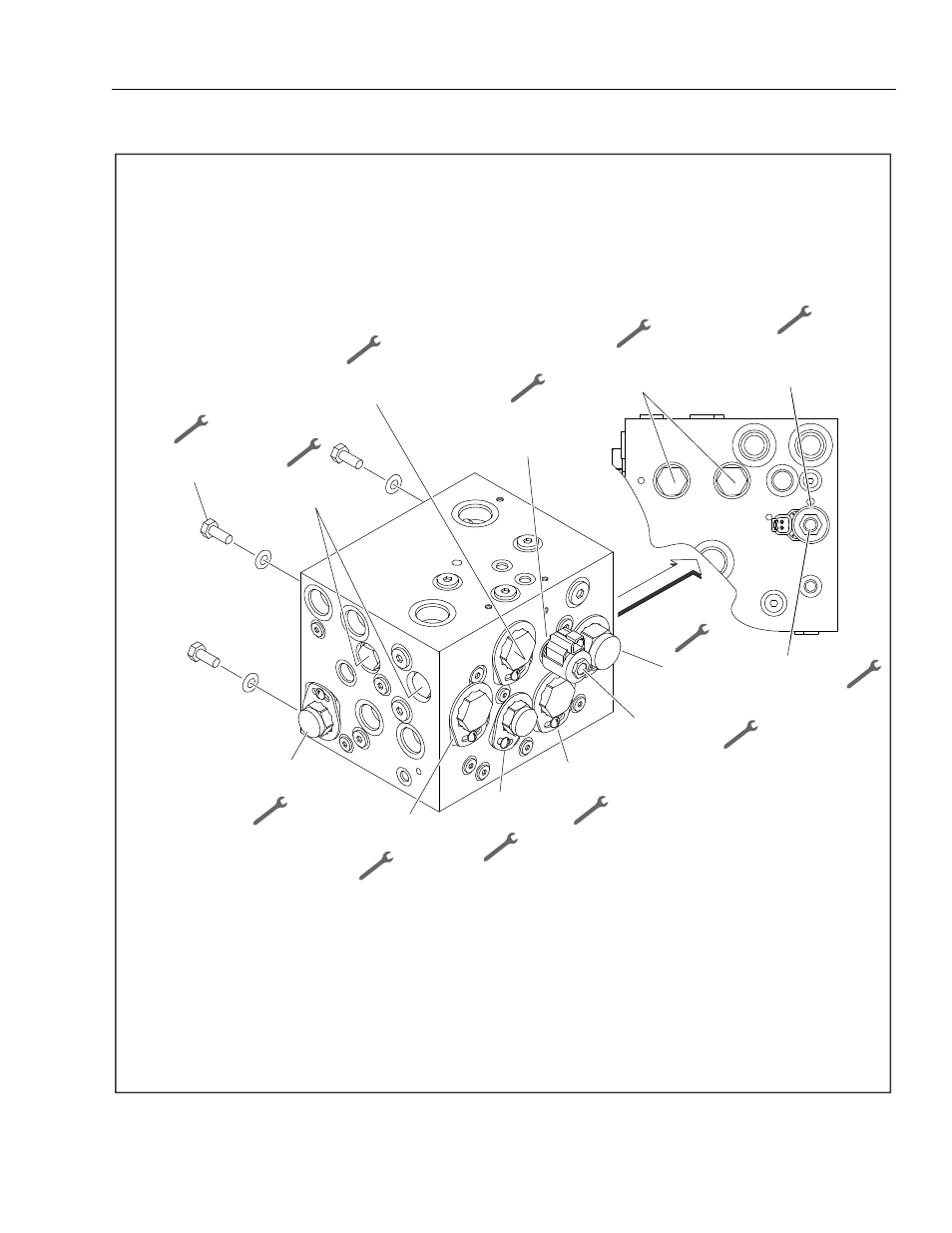

Figure 5-22. Flow Divider Valve - Sheet 2 of 2

Torque 18- 23.5 lb.ft.

(24-32 Nm)

Torque 25 lb.ft.

(34 Nm)

Torque 98- 102 lb.ft.

(133-138 Nm)

Torque 20 lb.ft.

(27 Nm)

Torque 25 lb.ft.

(34 Nm)

Torque 4- 5 lb.ft.

(5.5-6.5 Nm)

8.8 Ω

Torque 4- 5 lb.ft.

(5.5-6.5 Nm)

8.8 Ω

Torque 20 lb.ft.

(27 Nm)

Torque 50 lb.ft.

(67 Nm)

Torque 98- 102 lb.ft.

(133-138 Nm)

Torque 35 lb.ft.

(47.5 Nm)

Torque 98- 102 lb.ft.

(133-138 Nm)

Torque 35 lb.ft.

(47.5 Nm)

BRAKE VALVE

4W/2W VALVE
