Page 149
9-9
3508PS, 3509PS, 3512PS, 3513PS, 4008PS, 4009PS, 4012PS, 4013PS, 4017PS, 40.8, 40.9
Electrical System
9.6.3

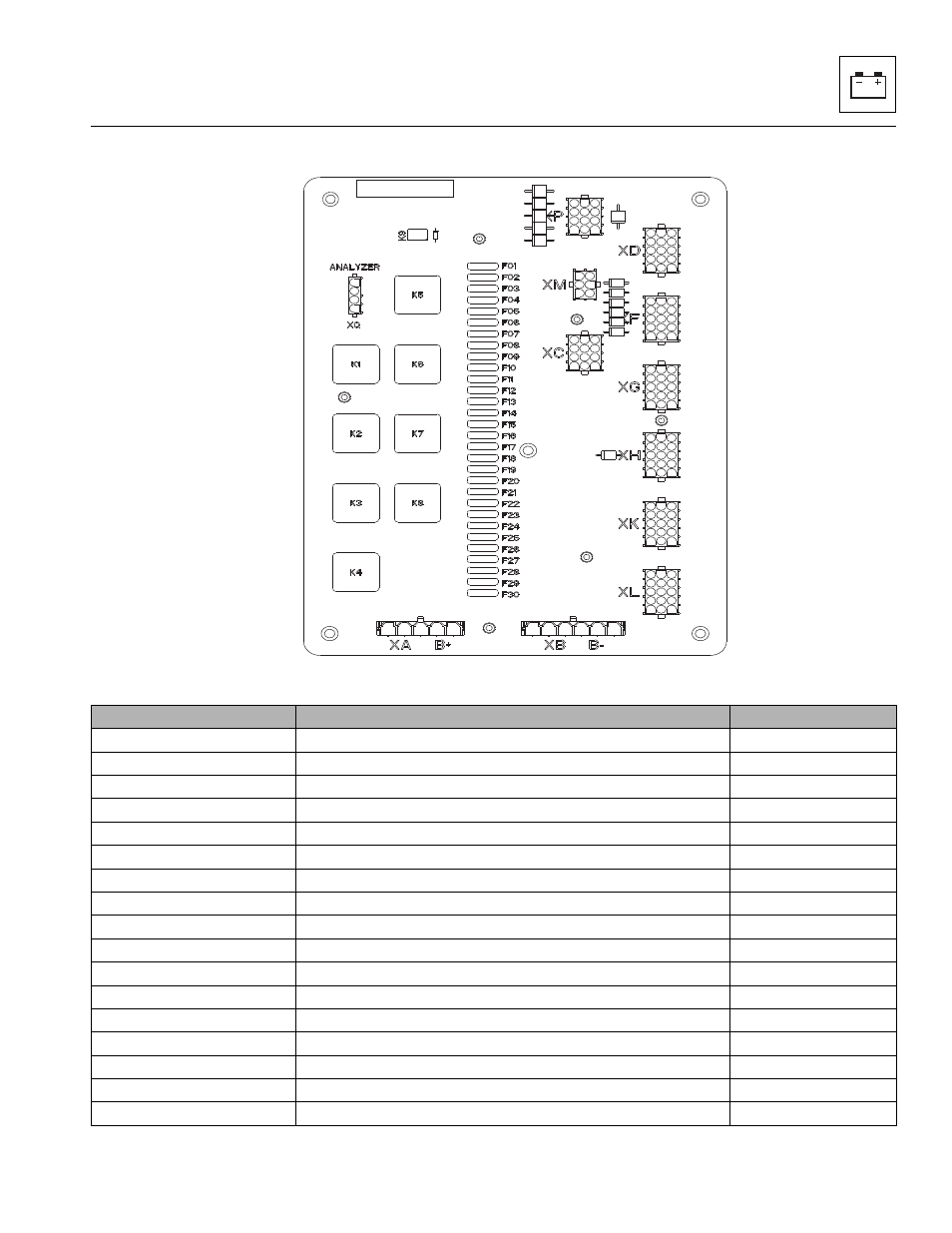

Power Distribution Board
MZ2090
Fuse/Relay
Function
Amp Rating
F1
Rt. Headlight Low
7.5
F2
Rear Wiper
15
F3
Rt. Headlight High
7.5
F4
Lt. Headlight Low
7.5
F5
Lt. Headlight High
7.5
F6
Fan
20
F7
Front Wiper
25
F8
A/C
7.5
F9
Key 2
15
F10
Key 1
15
F11
Radio
10
F12
Lights Bat 1
15
F13
Lights Bat 2
15
F14
Lt. Marker Lights
7.5
F15
Boom Worklights
15
F16
Brake Lights
15
F17
Front Worklights
15
