6 platform electrical schematic, Platform electrical schematic – JLG 4013PS Service Manual User Manual

Page 160

Electrical System

9-20

3508PS, 3509PS, 3512PS, 3513PS, 4008PS, 4009PS, 4012PS, 4013PS, 4017PS, 40.8, 40.9

9.7.6

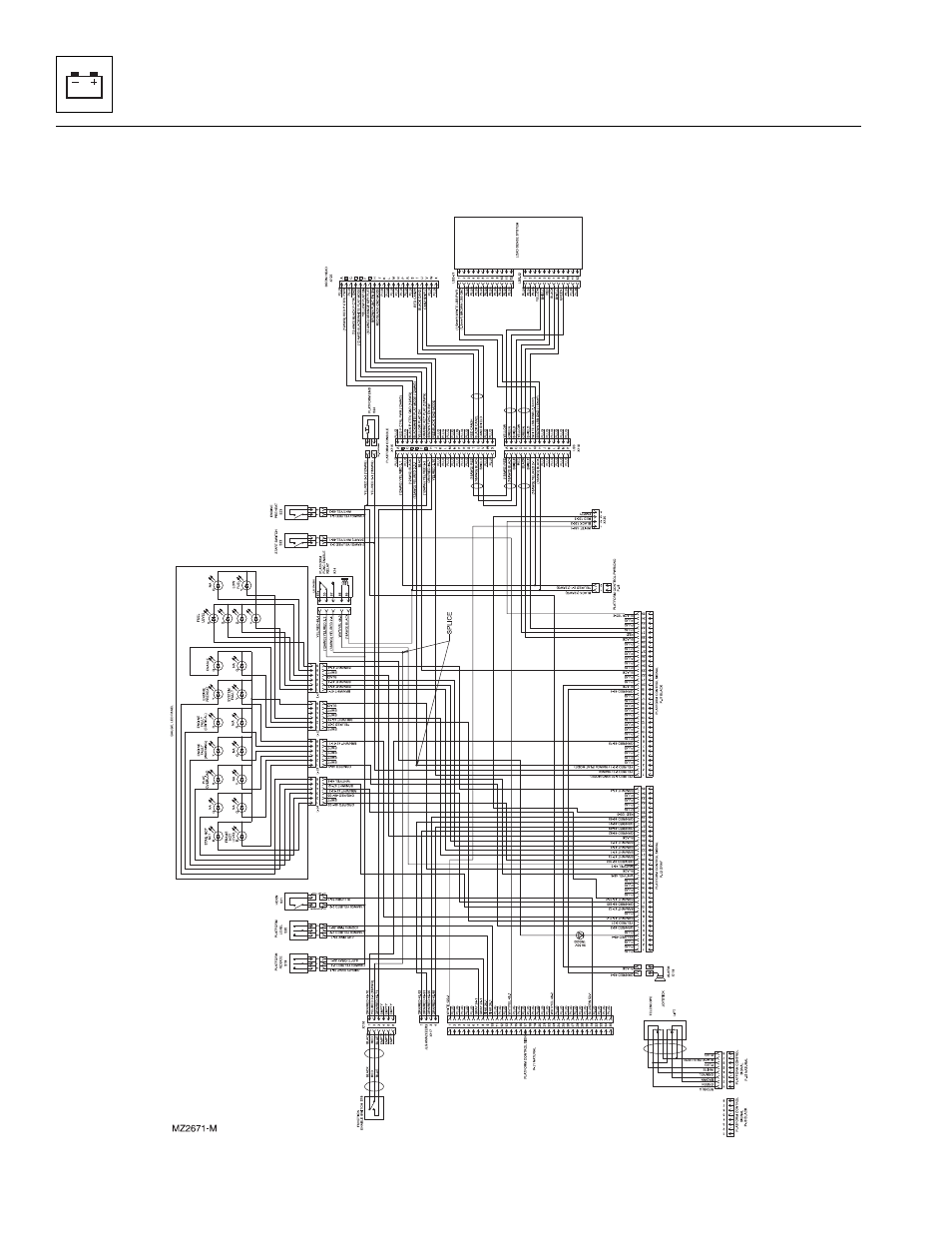

Platform Electrical Schematic

(Sheet 7)

Note: Sheet 6 of 8 not included in electrical schematic intentionally.
